• Model NO.：BY-3
• Brand：Baoyue
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Types：Car Paint Oven
• Color：Orange
• Voltage：1X220V,3X380V,50Hz
• Purification：≥95%
• Noise Db (a)：≤70
• Air Capacity：25000m3,H
• Free Air Speed：≥0.24m,S
• Frequency of Air Change：294 Time ,H
• Safety：with Pressure Emergency Door
• Max Heating Productivity：200000kcal,H
• Transport Package：Standard Export Package
• Specification：CE
• Trademark：Bauyues
• Origin：Guangdong, China
• HS Code：8419899090
• Production Capacity：30set,Month

Intake and Exhaust
system
 Inlet:1×7.5KW turbo fan, air capacity for each fan: 25000m3/h.Outlet: 1×7.5KW turbo fan, air capacity for each fan: 25000m3/h. Manual damper, 4m ducts, 1
pcs 900 bend, 1 pcs 300 bend.Heating systemItaly RIELLO G20 diesel burner, stainless steel heat exchanger, pneumatic damper actuates from
spraying to baking cycle. Max. heating productivity: 200000kcal/h, max temperature: 80°C, 4pcs
chimney, 1 pcs bend.Purification system Pre-filter, ceiling filter, fibreglass filter, activated carbon filter.RoofGalvanized steelControl systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power
supply switch, emergency stop, all motors is normal start.Total power17.5KW (Power supply 1×220V, 3×380V, 50HZ)

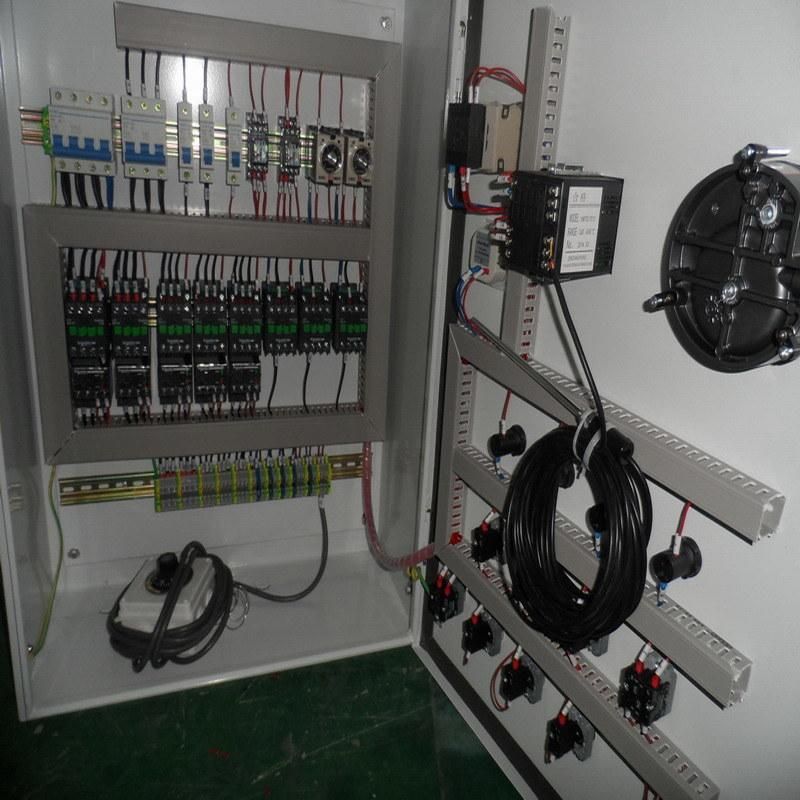

Parts details:

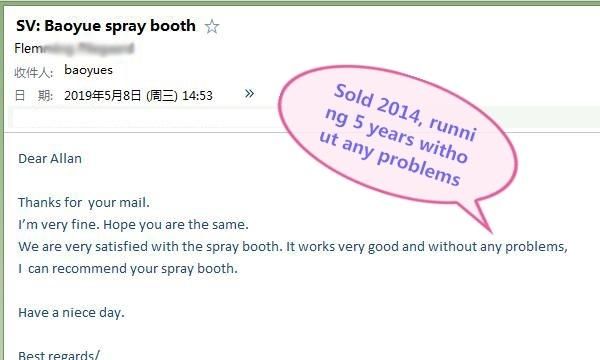

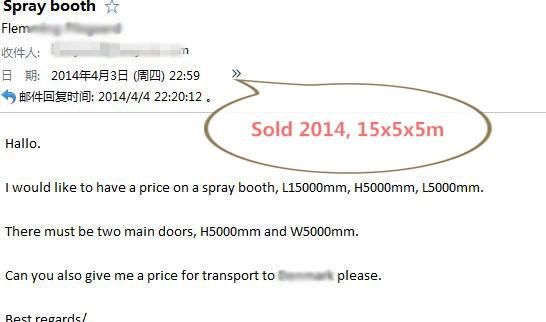

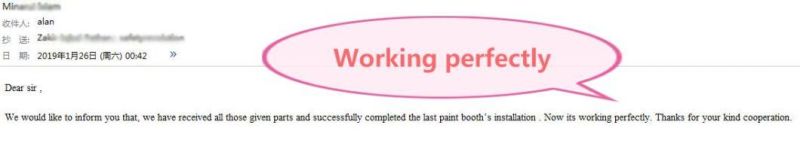

What customer saying:

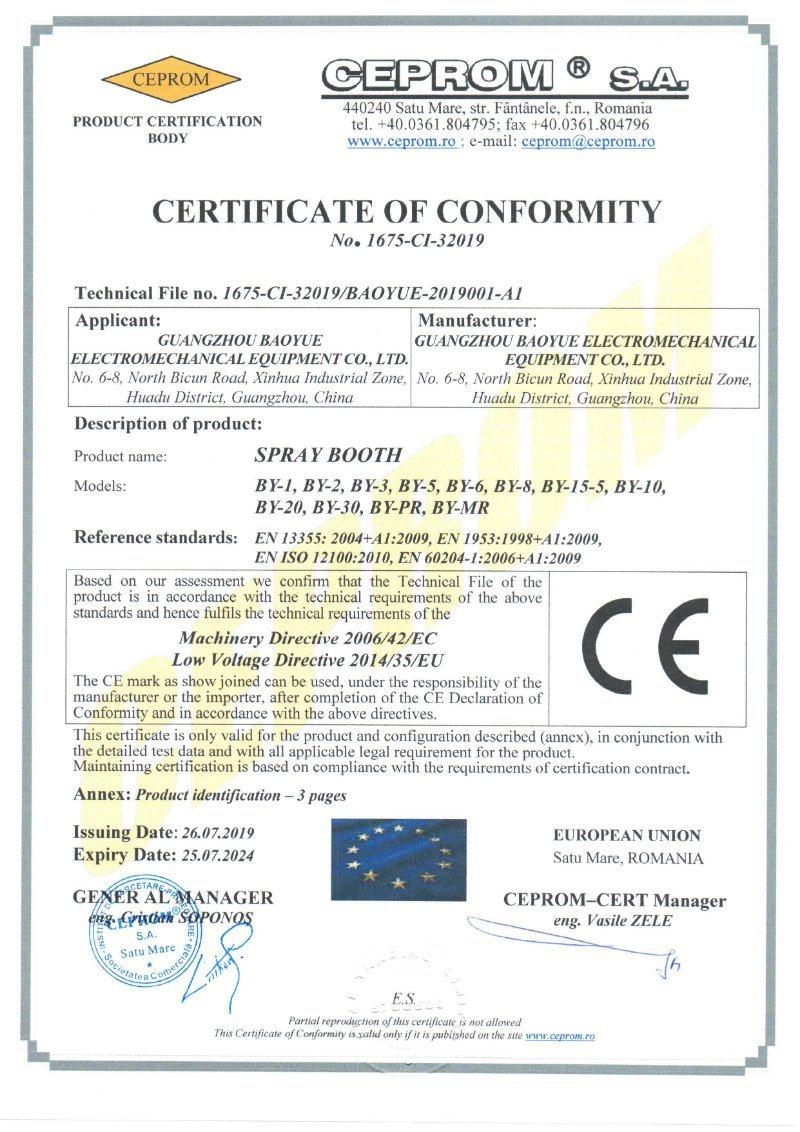

Certificate:

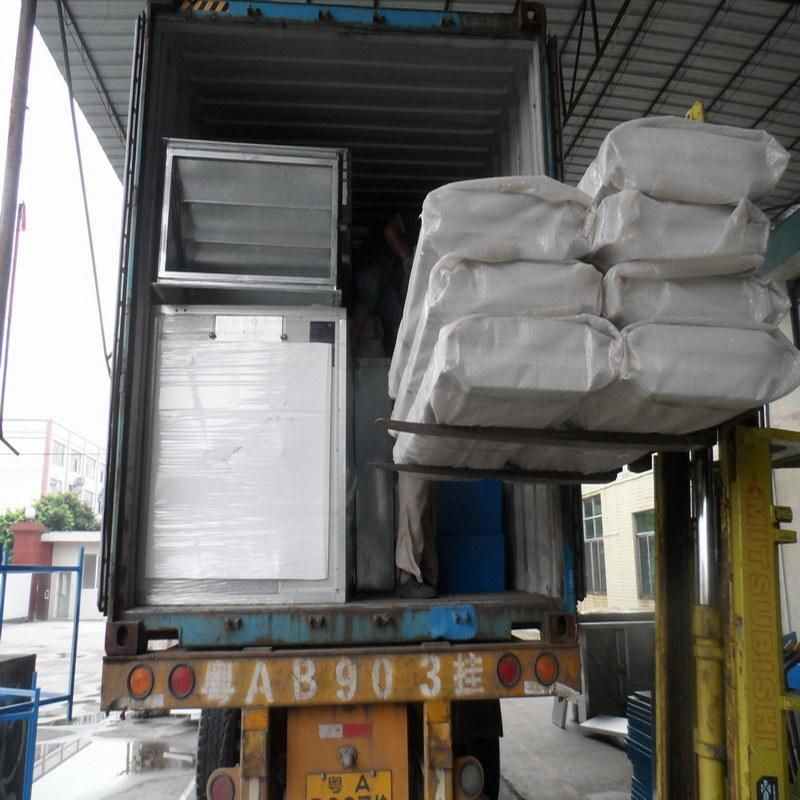

Factory show:
