• Model NO.：1366
• Main Market：South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market
• Transport Package：CTN, Pallet
• Specification：1,4, 3,8, 1,2, 5,8, 3,4
• Trademark：OEM
• Origin：Zhejiang Ningbo
• HS Code：7412209000
• Production Capacity：3, 000, 000 Pieces,Year

Basic Info.

Model NO. 1366 Main Market South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market Transport Package CTN, Pallet Specification 1/4, 3/8, 1/2, 5/8, 3/4 Trademark OEM Origin Zhejiang Ningbo HS Code 7412209000 Production Capacity 3, 000, 000 Pieces/Year

Product Description

AIR BRAKE COPPER TUBING FEMALE ADAPTER

Air Brake Copper Tubing Female Adapter 1366
1/2" Tube O.D. X 3/8" Female NPTF, 0.87" Hex
Maximum operating pressure of 150 psi
Easy to assemble (no tube preparation or Flaring required.) built in tube support. Fittings utilize a ribbed sleeve for compression and positive grip. May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve. Insert should be removed for copper tubing use.





AIR BRAKE COPPER TUBING FEMALE DETAILS

Typical Application:
Air brake systems

Conformance:
Meets specifications and standards of SAE and SAE (FMVSS571 106)

Reference Part No:
66AB  -  1366  -  266A

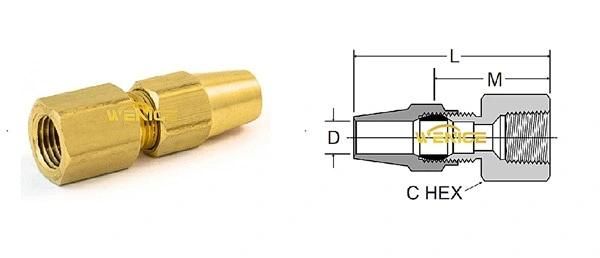

PART#	TUBE x NPT	C	D	M
1366-4A	1/4 x 1/8	9/16	.188	.84
1366-4B	1/4 x 1/4	11/16	.188	1.07
1366-6A	3/8 x 1/8	9/16	.312	1.00
1366-6B	3/8 x 1/4	11/16	.312	1.18
1366-6C	3/8 x 3/8	7/8	.312	1.18
1366-8C	1/2 x 3/8	7/8	.406	1.27
1366-8D	1/2 x 1/2	1-1/16	.406	1.44
1366-10C	5/8 x 3/8	7/8	.531	1.31
1366-10D	5/8 x 1/2	1-1/16	.531	1.50
