• Model NO.：HY-CB55A
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Steam
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White, Grey
• Panel：75mm Thickness EPS Foam Panel
• Grates：Full Grates
• Intake Fan：2set
• Exhaust Fan：1set
• Filter System：4-Stage Filtration
• Heating System：Diesel, Oil
• Upper Lights：Available
• Side Lights：for Option
• Control Box：English Panel
• Control：Automatic
• Drawing：Available
• User Manual：Available
• Related Product 1：Retractable Folding Paint Spray Booth
• Related Product 2：Large Truck Paint Spray Booth
• Transport Package：Standard Package for Sea Shipment
• Specification：26CBM for FCL
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55A Coating Painting Airflow Direction Fully Undershot-type Heating Mode Steam Paint Mist Treatment Dry-type Condition New Color Red, Blue, White, Grey Panel 75mm Thickness EPS Foam Panel Grates Full Grates Intake Fan 2set Exhaust Fan 1set Filter System 4-Stage Filtration Heating System Diesel, Oil Upper Lights Available Side Lights for Option Control Box English Panel Control Automatic Drawing Available User Manual Available Related Product 1 Retractable Folding Paint Spray Booth Related Product 2 Large Truck Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the Car Paint Booth China with Oil Burner and Heat-Insulation Panel
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the Car Paint Booth China with Oil Burner and Heat-Insulation Panel

Model	HY-CB55A
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	600*1800(W*H)
Total power	20kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with complete grating floor.
Intake	Two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(GAS)	Italy Riello GAS burner, one-stage oil burner for option..
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

Picture of the Car Paint Booth China with Oil Burner and Heat-Insulation Panel

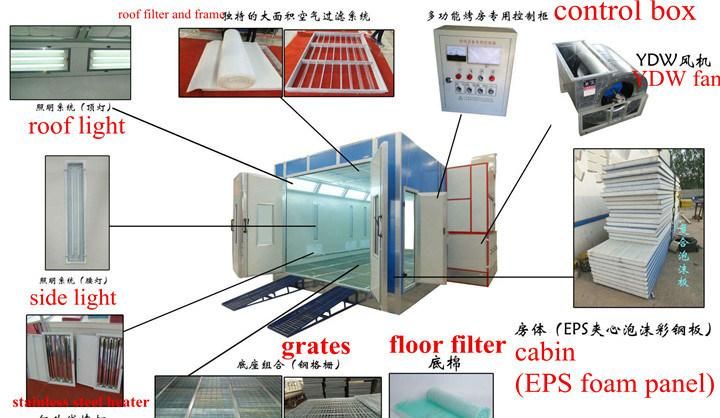

details show of Car Paint Booth China with Oil Burner and Heat-Insulation Panel

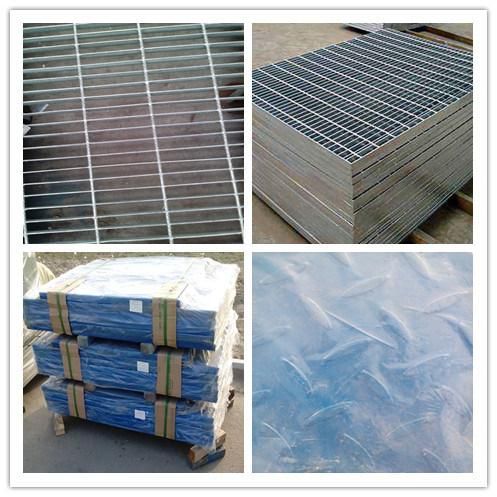

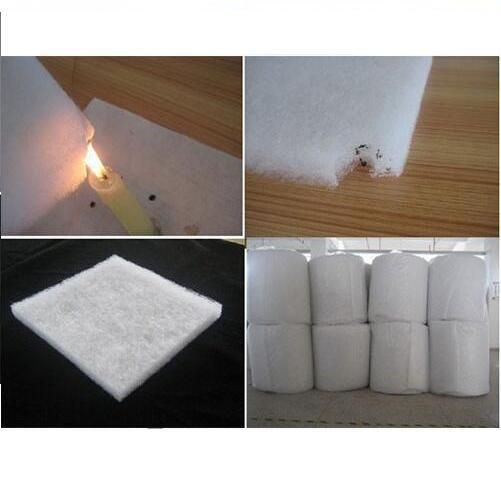

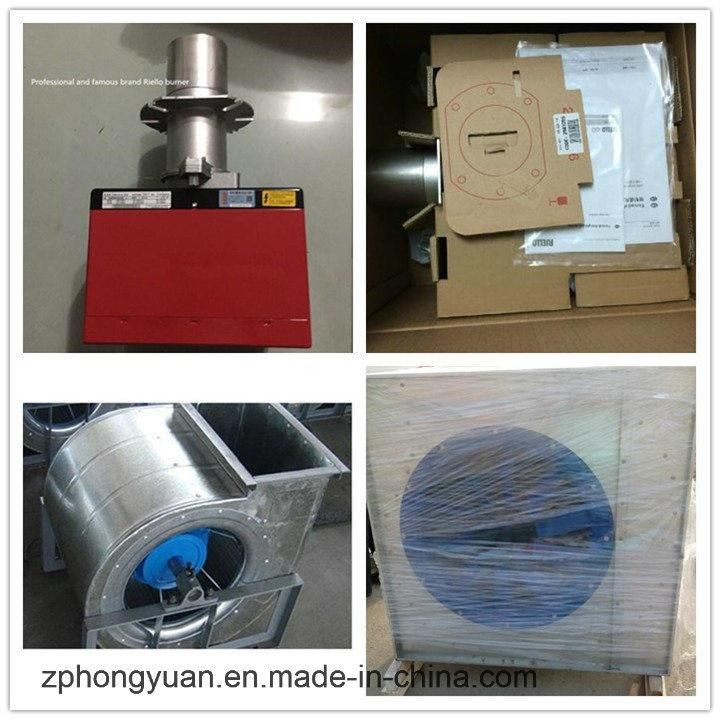

parts show of paint booth

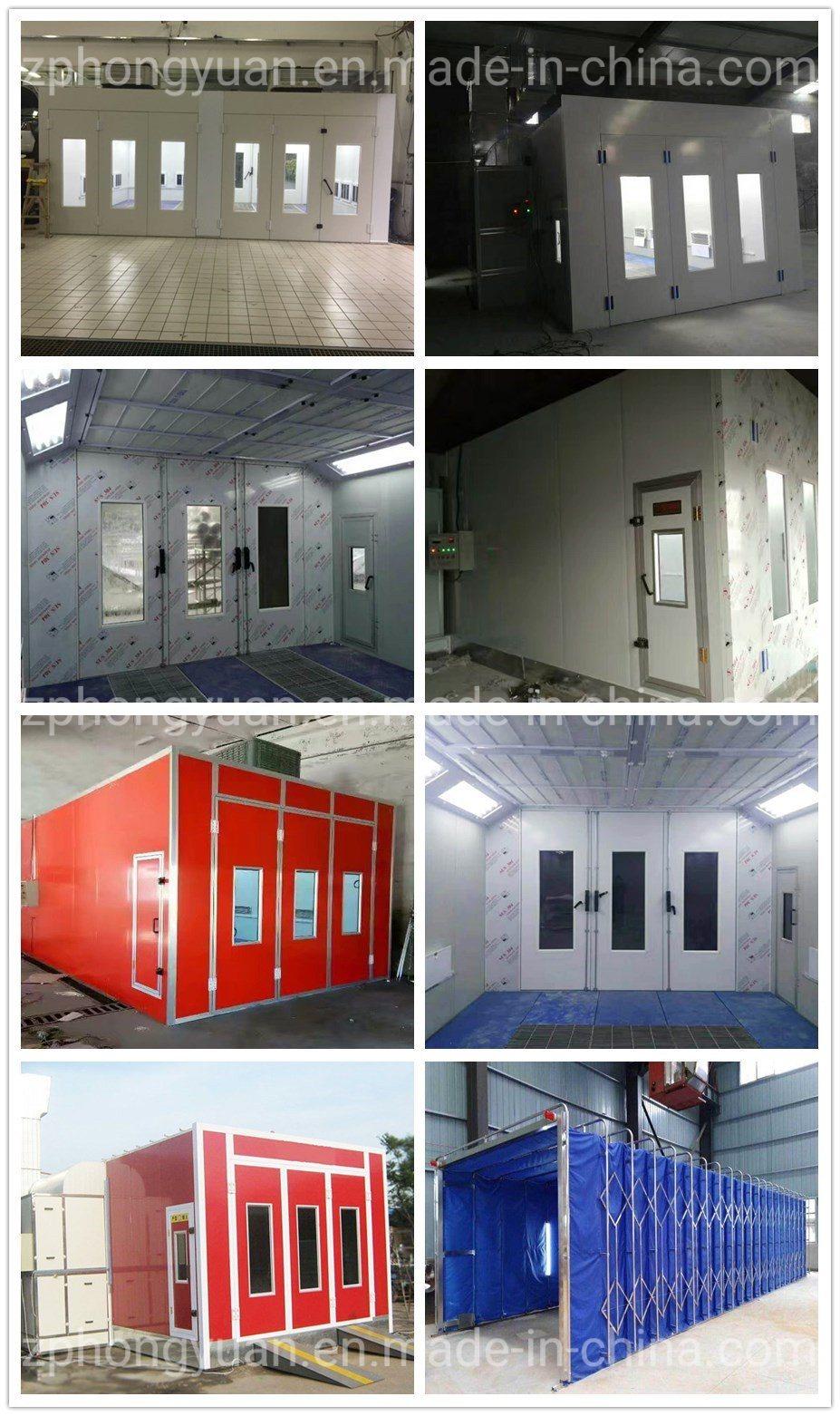

Project case for Car Paint Booth China with Oil Burner and Heat-Insulation Panel



Certificate of our product and company

Our Team is serving you at any time


Send us inquiry about Car Paint Booth China with Oil Burner and Heat-Insulation Panel
