• Standard：Standard
• Language：Spanish, Japanese, German, French, English
• Update Method：by Internet
• Type：Diagnostic Scanner
• Transport Package：Carton Box
• Specification：12.6cm*24.6cm*4.7cm
• Origin：China
• Package size per unit product：19.00cm * 15.00cm * 16.00cm
• Gross weight per unit product：2.200kg
• Lead Time：14 days (1 - 1 Pieces) To be negotiated ( > 1 Pieces)

Basic Info.

Standard Standard Language Spanish, Japanese, German, French, English Update Method by Internet Type Diagnostic Scanner Transport Package Carton Box Specification 12.6cm*24.6cm*4.7cm Origin China

Packaging & Delivery

Package size per unit product 19.00cm * 15.00cm * 16.00cm Gross weight per unit product 2.200kg Lead Time 14 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)

Product Description

Original DAF VCI-560 KIT DAF Truck Diagnostic Tool


Note: there is no software included in DAF VCI-560 KIT. you have to pay extra for the DAF Davie XDC II 5.6.1software

The VCI-560 switches the input channel automatically to the required data line (K-line, L-line) or CAN-bus of the truckside "Diagnostic Connector".

DAF VCI-560 KIT Features:

DAVIE XDc II can diagnose, troubleshoot and program following vehicles systems:

* CAB climate system;
* Safety system;
* Security system;
* Transmission system;
* CAB climate system;
* Vehicle control system;
* Door control system;
* Instrumentation system;
* Engine system;
* Tachograph;
* Communication system;
* After treatment system;
* Break system.

VCI-560 specifications:

Dimensions (W x D x H) 126 x 214 x47 mm;
Weight 1.1 kg.
Power supply from the vehicle electrical system;
The VCI must be powered from the vehicle;
Rated voltages 8 to 32 V DC;
Current consumption in the load range Max. 1 A
If external power is interrupted, the VCI will be buffered by the rechargeable battery;
Battery type NiMH 4,8V/1300mAh.
Support WiFi

Compatible Software:

* DAF Davie XDc II Runtime 5.6.1 (Windows 7 supported)
* DAF Davie Application 75.03
* DAF Davie Parts Rapido Subset 15.12FO

Languages Supported:
English, German, Dutch, Danish, Czech, French, Italian, Finnish, Hungarian, German, Spanish, Norwegian, Russian, Greek, Polish, Turkish.

Supported Vehicle: DAF Trucks.

Direct Testing mode allows immediate selection of individual control units and direct test of their components and functions.
Guided Diagnosis. Using the combination of self-diagnosis symptoms (content of fault memory) and observed symptoms (complaints from customer), the system generates a test plan and guides the user along the shortest route to the suspect component.
HD-OBD mode allows immediate selection of DAF independent control units and direct testing of their components and functions.
EOL (End Of Line) mode used in stations of the production area and allows programming, calibration, health check and diagnosing of newly produced vehicles.
You can switch between HD-OBD mode and EOL mode.
For special programming and Service Level see Davie Developer Tool.

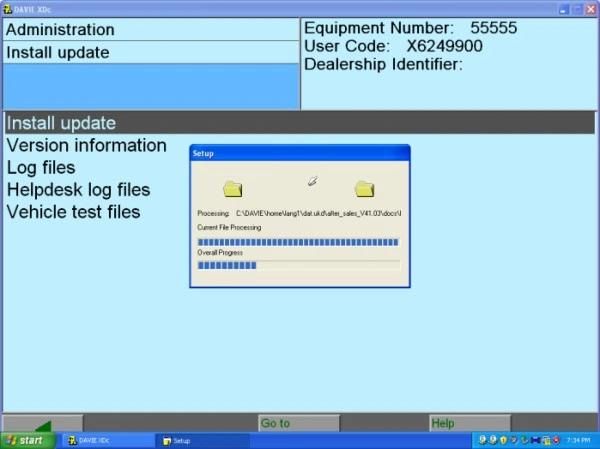

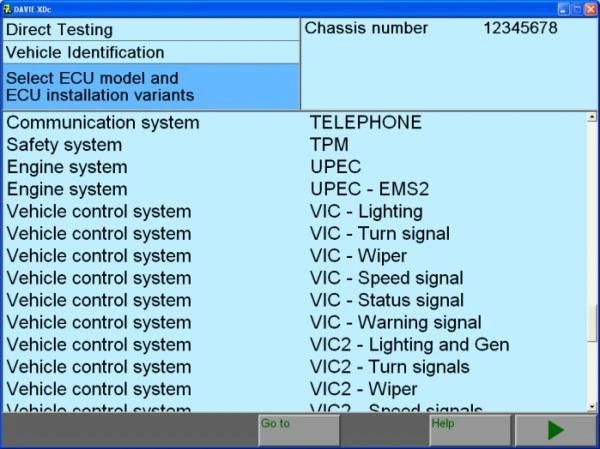

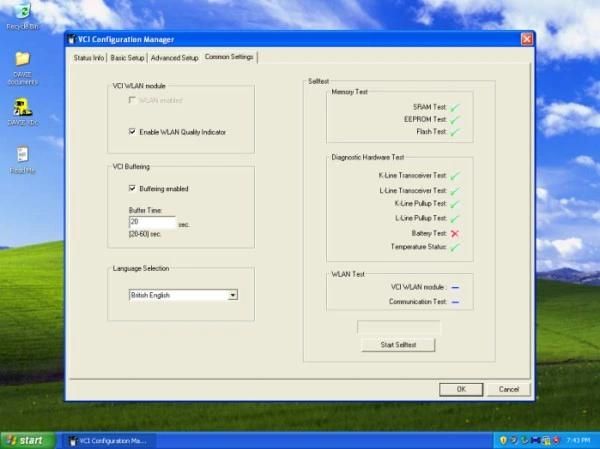

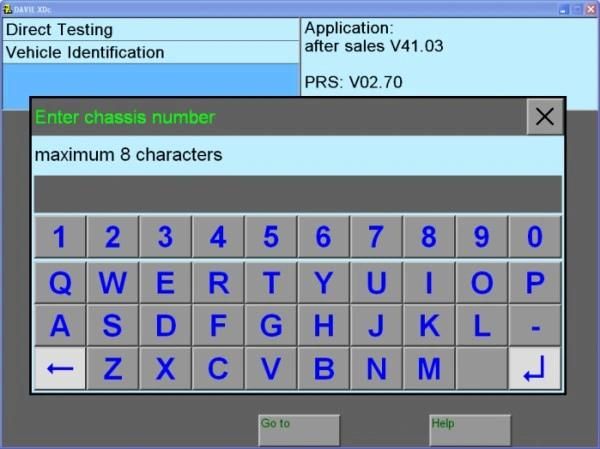

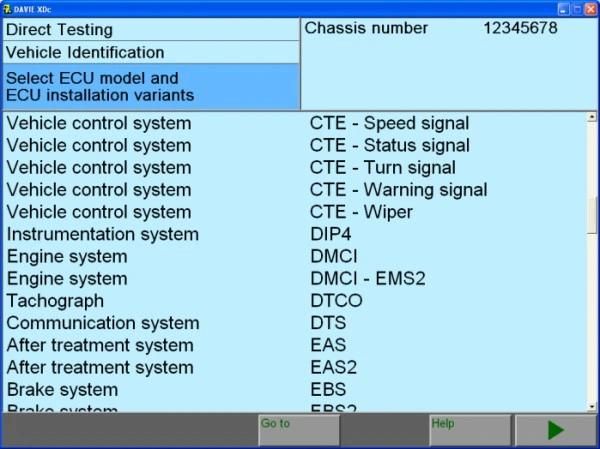

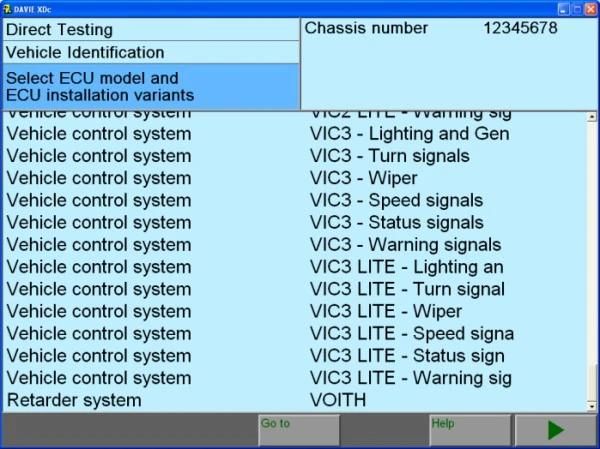

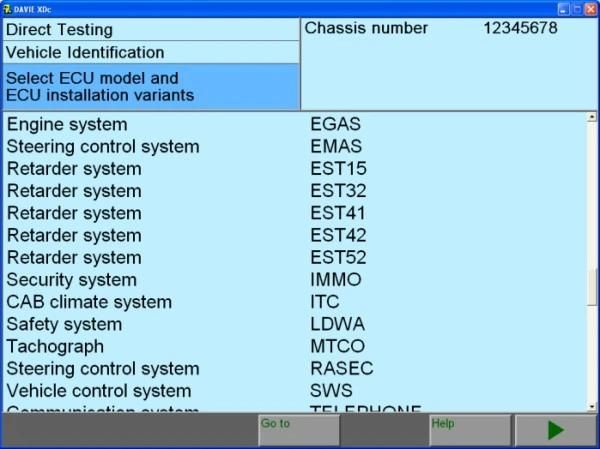

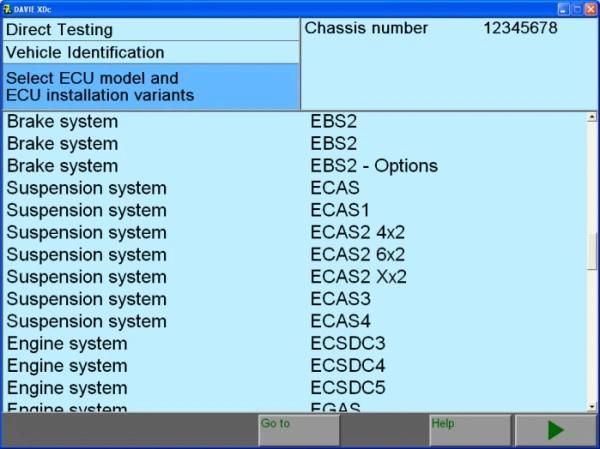

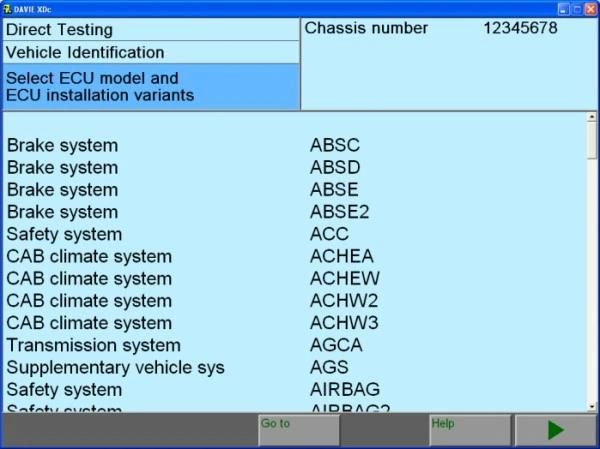

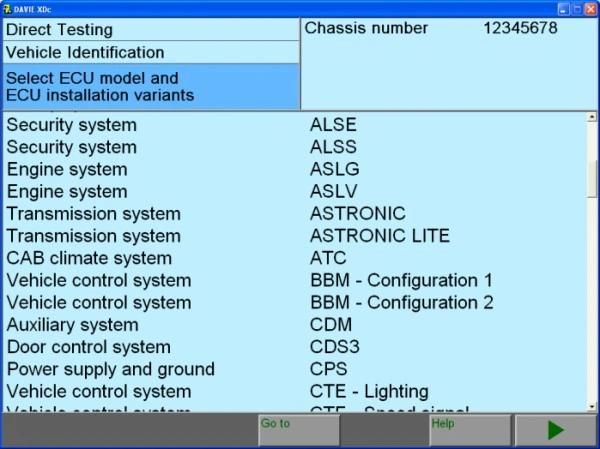

DAF VCI-560 Software Screenshots:















Package including:

1pc x VCI-560 MUX
1pc x 16-PIN CABLE
1pc x OBD2 CABLE
1pc x USB CABLE
