• Model NO.：DDCP
• Shearing Lift Type：car lift
• Condition：New
• Brand：Moral
• Design：Scissor
• Load capacity：3000kg
• Lifting height：4000m
• Platform size：5000*2500mm
• Warranty：12monthes
• Color：As customers′ request
• Drive mode：Hydraulic drive
• Motor power：5.5kw
• Voltage：AC 220V,380V 50Hz,60Hz
• Transport Package：Standard Export Packing
• Specification：6000(L)*3000(W)*1500(H)mm
• Trademark：MORAL
• Origin：Shandong, China(Mainland)
• HS Code：842890
• Production Capacity：500pieces,Month

Basic Info.

Model NO. DDCP Shearing Lift Type car lift Condition New Brand Moral Design Scissor Load capacity 3000kg Lifting height 4000m Platform size 5000*2500mm Warranty 12monthes Color As customers′ request Drive mode Hydraulic drive Motor power 5.5kw Voltage AC 220V/380V 50Hz/60Hz Transport Package Standard Export Packing Specification 6000(L)*3000(W)*1500(H)mm Trademark MORAL Origin Shandong, China(Mainland) HS Code 842890 Production Capacity 500pieces/Month

Product Description

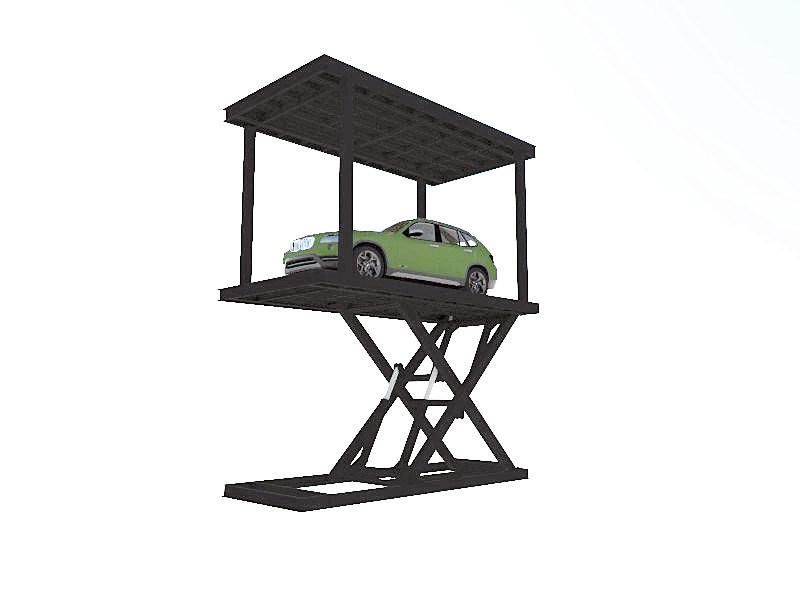

Residential Garage Parking Double Platform Car Lift

Moral lift is a professional manufacturer of CAR  LIFT with good quality and low price. We are adhering to our priciple of " Put quality first and treat cudstomers as supremacy; People-oriented, honesty comes first". We have good quality products, prompt telephone services and skilled maimtenance personnel for our customers.
Look forward to having opportunity to cooperate with all of you around the world!

PARAMETTER




Model	DDCP
Drive mode	Hydraulic
Platform  size	5500*2500mm/ customized according to customers' requirements
Loading capacity	Dynamic 5ton / customized according to customers' requirements
Motor power	5.5kw
Voltage	380v, 50hz, 3P * customized according to customers' requirements
Travle height	2500mm/ customized according to customer's requirements
Distance of two deck	The same with travel height/can be customized
Min. height	560mm
Color	Customized
Platform	Painted steel platform or hot Galvanization
Operation	Button/Remote/PLC

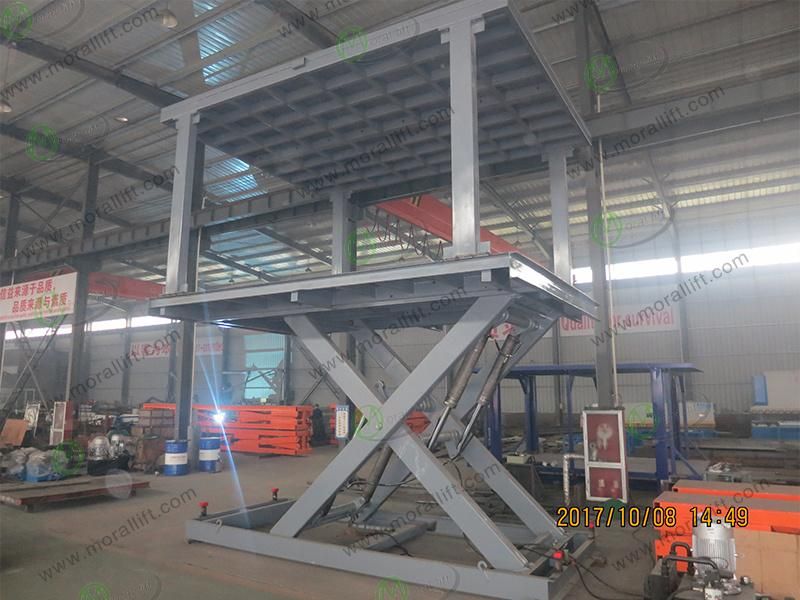

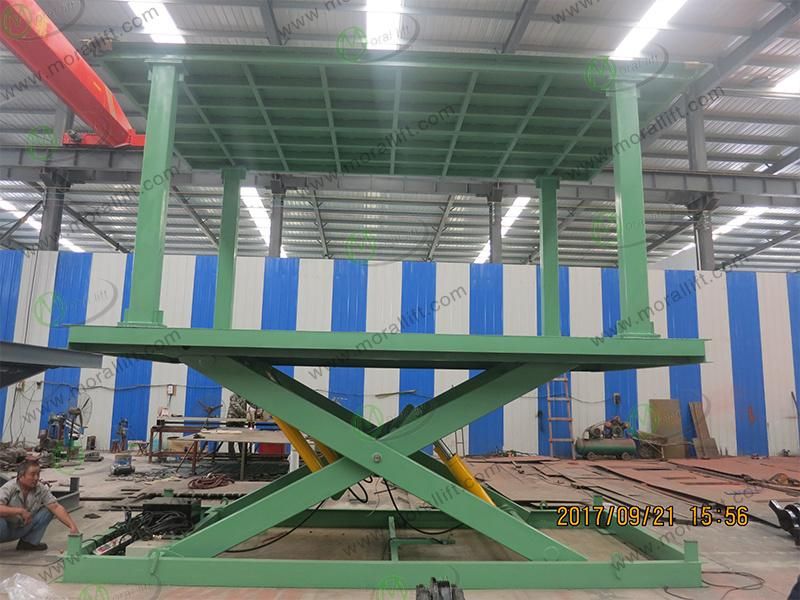

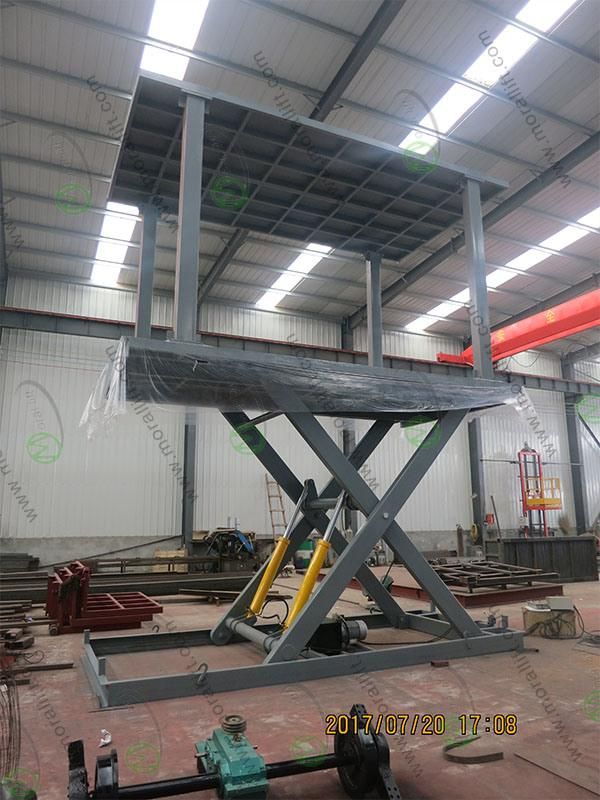

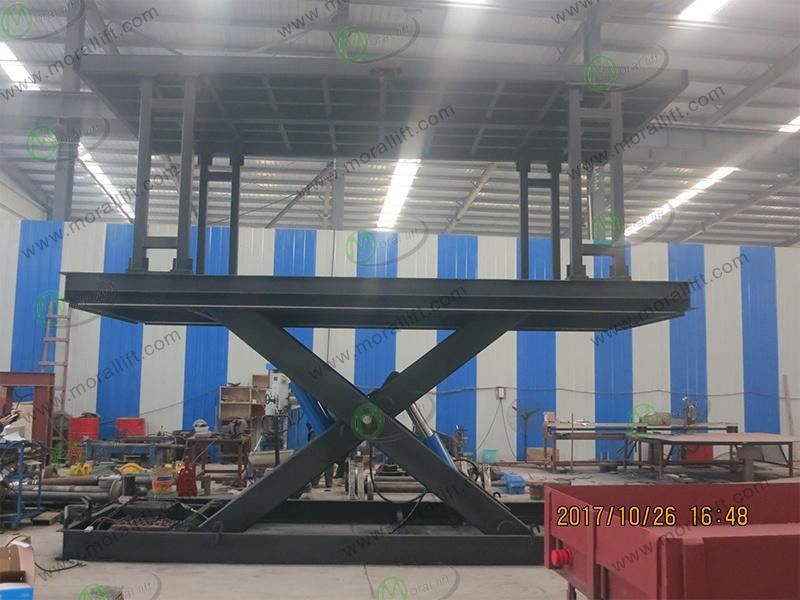

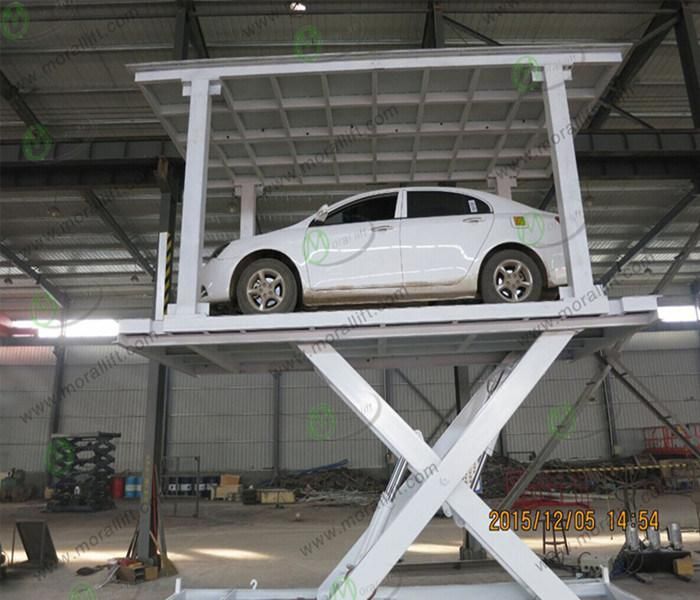

PRODUCT SHOW










SAFETY

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs;
2) The safe rails to guarantee safety of the car above platform;
3) The limit switch system helps the car lift to stop at accurate position;
4) Electricity leakage protection device is equipped on, all electric components are CE certified;
5) All the Hydraulic scissor car lift are passed 1.2 times loading test before leaving factory.

SPECIFICATION




1.The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden  drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car
2. The handrail to guarantee safety of car
3. Equipped with 4 guide rails to ensure safety and steady.
4. The limit switch system ensure lifts stop at accurate position.
5. Overload protection facility is equipped on, the lift will not work when goods is overloaded.
6. Electric control system adopt elevator system from Japan Mitsubishi ensure safety
7. Guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.

OUR SETRVICE

1) We can customize as per your requirement.
2) The most suitable will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) Two year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
