• Model NO.：Non-standard
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Paint Mist Treatment：Dry-type
• Condition：New
• Plenum (Height)：400mm
• Side Walls：50mm Rock Wool Wall Panels
• Brightness：>900lux
• Noise：<78dB
• Grids Carrying Capacity：900kg,Wheel
• Extraction Area：24m2
• Air Volume：28,000m3,H
• Rated Power：10kw
• Ramp：Pneumatic Ramp
• Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
• Specification：6000 X 4000 X 2600mm(L X W X H)
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. Non-standard Coating Powder Coating Airflow Direction Fully Undershot-type Paint Mist Treatment Dry-type Condition New Plenum (Height) 400mm Side Walls 50mm Rock Wool Wall Panels Brightness >900lux Noise <78dB Grids Carrying Capacity 900kg/Wheel Extraction Area 24m2 Air Volume 28,000m3/H Rated Power 10kw Ramp Pneumatic Ramp Transport Package Cargo Loaded on Steel Frame Handled by Forklifts Specification 6000 X 4000 X 2600mm(L X W X H) Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000 Sets/Year

Product Description

Full Downdraft Auto Preparation Bay/Prep Bay/Auto Prep Station
1.FEATURES

• Full downdraft airflow
• Metal base with pneumatic ramp
• Powerful exhaust unit with air volume at 28,000m³/h
• Easy and convenient to use control integrated in the rear wall
• Tool box offers space for tool storage

2.SPECIFICATIONS

ITEMS	Full Downdraft Auto Preparation Bay/Prep Bay/Auto Prep Station SPECIFICATIONS
Model	Downdraft Auto Prep Bays
Design standard	BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009
Internal dimensions	6000 X 4000 X 2600mm(L X W X H)
External dimensions	7350 X 4100 X 3410mm (L X W X H)
Airflow	Downdraft
Plenum (height)	400mm
Extraction	Raised metal base with grids
Grids carrying capacity	900kg/wheel
Extraction area	24m2
Ramp	Pneumatic ramp
Manual PVC soft curtains	In the front: 4200x2850mm, 1pc
Side walls	50mm rock wool wall panels
Rear Walls/Top panels	Single layer galvanized steel, powder coated
Ceiling lights (LED)	8 sets, each 4 X 18W, 576W total
Brightness	>900LUX
Filters	High efficiency ceiling filter, floor filter, exhaust filter
Exhaust unit	Direct-type turbine fan, 1X7.5KW, SIEMENS motor
Air volume	28,000m3/h
Controls	CE standard control box
Inverter	inverter
Rated power	10KW

3.CUSTOM OPTION

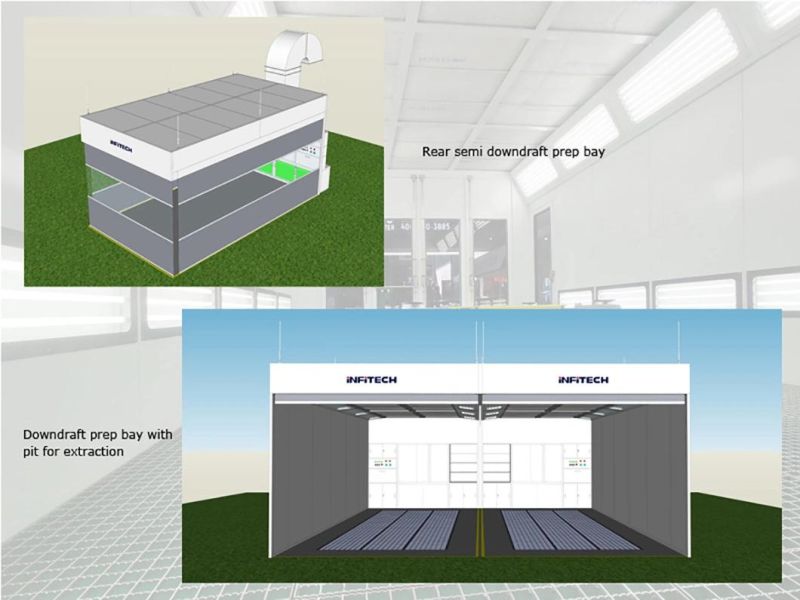

1. Rear semi downdraft airflow
2. Downdraught, with base in the ground or pit for extraction

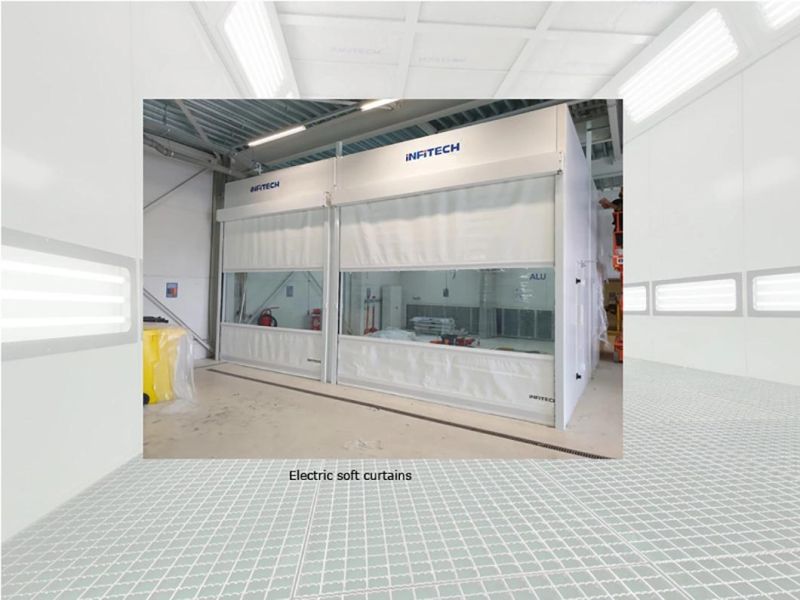

3. Electric soft curtains

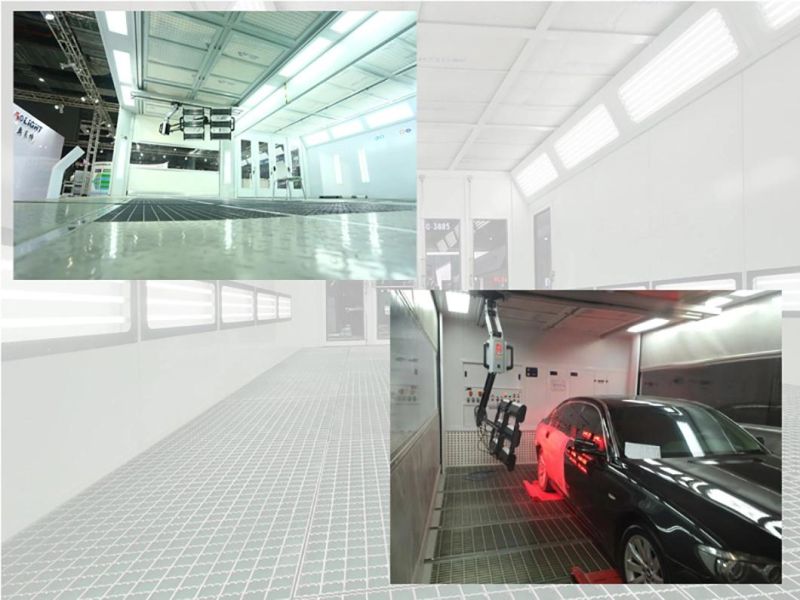

4. Infrared heating lamps
5. Central dust extraction unit

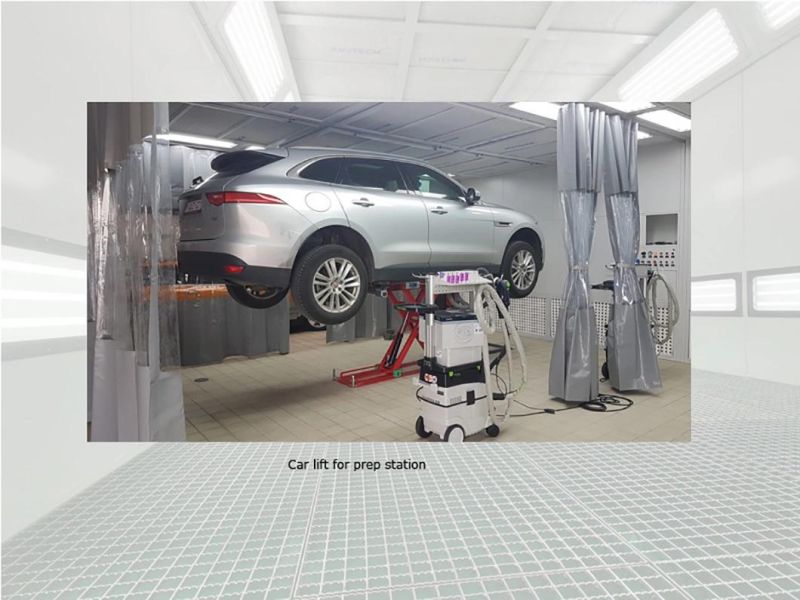

6. Car lift integrated with the prep bay

FAQ
 Q: I want to add a car lift to the auto prep bay. Can you take this into consideration when you design the base of the auto prep bay?A: Yes. Meanwhile, please send the manuals of the corresponding car lift for our reference. We need the design, detailed measurements of the lift for reference so we can match it with our basement.

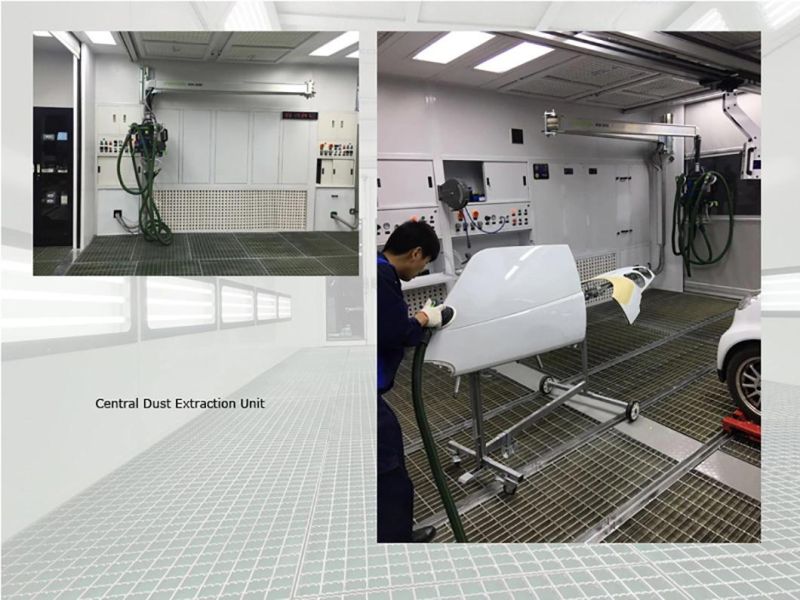

 Q: For the central dust extraction unit shown above, how many auto prep bays it can be for?A: The standard central dust extraction unit is 5.5kw with 4 servo. It allows for 8 sanders working all together. Supposing 1 servo with 2 sanders for each work bay, it can be used for 4 prep bays.
 Q: For my auto body shop, I need several prep bays and there should be track and conveying system to load and convey the car from one bay to the next. Do you have such system?A: Yes. We have delivered a lot of such projects domestically. And we are very experienced. Please forward your quotation request. We will get back with the solution.
 Q: Can you add intake fan unit to the auto prep bay?A: That's okay. We have two types of intake fan units for prep bay.
  One is with motor inside the fan, and the other one is with direct drive intake fan units. Feel free to contact us for more details.
 Q: What is the maximum width of the electric soft curtains you can supply?A: 6000mm in width.
