• Model NO.：BY-1
• Brand：Baoyues
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Brand Name：Baoyues
• Products Name：Auto Spray Booth
• Function：Car(or Furniture)Painting and Baking
• Certificate：CE,CCS,SGS,TUV
• Service：Professional Team for Installation Abroad
• Warranty：1 Year
• Transport Package：2 Pieces,20gp
• Specification：CE, CCS, TUV, SGS
• Trademark：Baoyues
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：80 Piecescs,Month
• Package size per unit product：690.00cm * 390.00cm * 265.00cm
• Gross weight per unit product：3500.000kg

Basic Info.

Model NO. BY-1 Brand Baoyues Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Brand Name Baoyues Products Name Auto Spray Booth Function Car(or Furniture)Painting and Baking Certificate CE,CCS,SGS,TUV Service Professional Team for Installation Abroad Warranty 1 Year Transport Package 2 Pieces/20gp Specification CE, CCS, TUV, SGS Trademark Baoyues Origin Guangzhou, China HS Code 8419899090 Production Capacity 80 Piecescs/Month

Packaging & Delivery

Package size per unit product 690.00cm * 390.00cm * 265.00cm Gross weight per unit product 3500.000kg

Product Description

Car Painting Oven:
1.powerfrugal system
2.auto pressure system
3.CE,CCS certificate
4.professional install team abroad
5.1 year warranty
Car Painting OvenCar Painting OvenCar Painting Oven

Car Painting OvenCar Painting OvenCar Painting Oven
The inside dimension and outside dimension can be design as your requirement. Baoyue offter the warranty about 1 year,with professional technical and best service in this line.
The detailes:

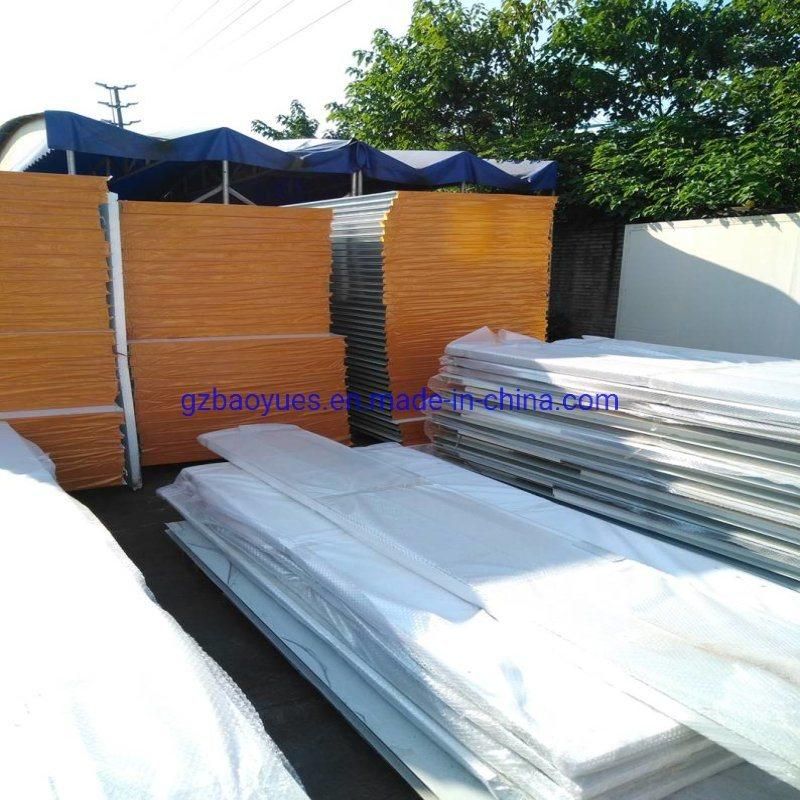

Spray booth conveying and storage:
Car Painting OvenCar Painting OvenCar Painting Oven
As  spray  booths  are  in  big  size,  they're  conveyed  in  bulk  while  loading  and  unloading. The parts in frame should be loaded and unloaded by fork vehicles  while  the small parts are conveyed by manpower. The  finished  parts  of  spray  booth  are  usually  stored  in  the  finished  products  warehouse,  and marked on the outside packages for  checking  before  delivery.  After  being sent to the destination, all the parts should not be put in the open air but in store house to prevent from rusting and oxidized by the moisture.
Car Painting OvenCar Painting OvenCar Painting Oven

Introduction for Baoyues:
Guangzhou Baoyue Electromechanical Equipment Co.,Ltd,which specilize in the design, manufacture and sale for auto spray/backing booth,industry painting equipment, high temperature drying plant,  has sucessfully exported our products to Europe, Africa, America ect. and get a positive feedback. We own the factory in Guangzhou of China, all the customer are welcomed to visit our factory. The competitive price and high quality of our products can be very helpful to your business.



Car Painting OvenCar Painting OvenCar Painting Oven

Inside dimension	6900 × 3900 × 2650mm (L×W×H)
Outside dimension	7000 × 5350 × 3400mm (L×W×H)
Front door	F olding door,  4  folds,  3000×2600 mm(W×H),  without frame cover, colour :  white .
Emergency door	1 unit, 650×1800mm (W×H),  colour: white
Basement	Galvanized steel assemble
Wall Panels	Thickness:50mm, width:1150mm,  tongue and groove structure, 0.376mm colour steel with polystyrene (EPS) insulation inside, colour:  blue
Light	Ceiling l ights:8Units × 4Pcs=32Pcs × 36W,Side l ights:8Units ×2 Pcs= 16 Pcs ×18 W, with electronic ballasts, lighting boxes are powered coated. Illuminate:  ≥1000LUX
Generator cabinet	Intake from side upper, exhaust from back upper, quadrate steel frame; white coated steel covered, filled with heat preservation material inside.
Intake and Exhaust   system	Inlet: 2×3 KW double-intake centrifugal  fans, model  YDW4.5M1,  air capacity for each fan:  10500m 3 /h.
	Outlet:  1× 4KW double-intake centrifugal  fan, model  YDW4.5L1 , air capacity:  12500m 3 /h .
Heating system	RIELLO G20 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 200000kcal/h,  Max temperature: 80 degree
Purification system	Pre-filter, ceiling filter, fibreglass filter, activated carbon filter
Roof	Galvanized steel.

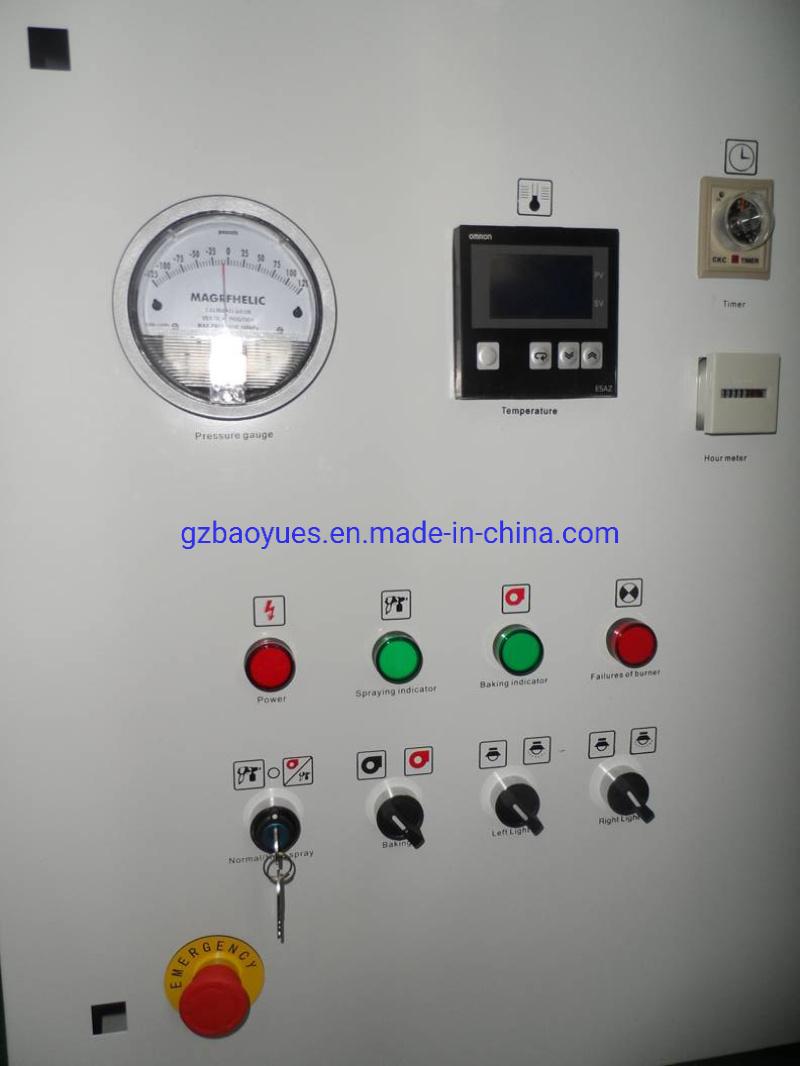

Control system	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, temperature limit controller, exhaust with manual damper, all motors are normal start.
Total Power	12KW

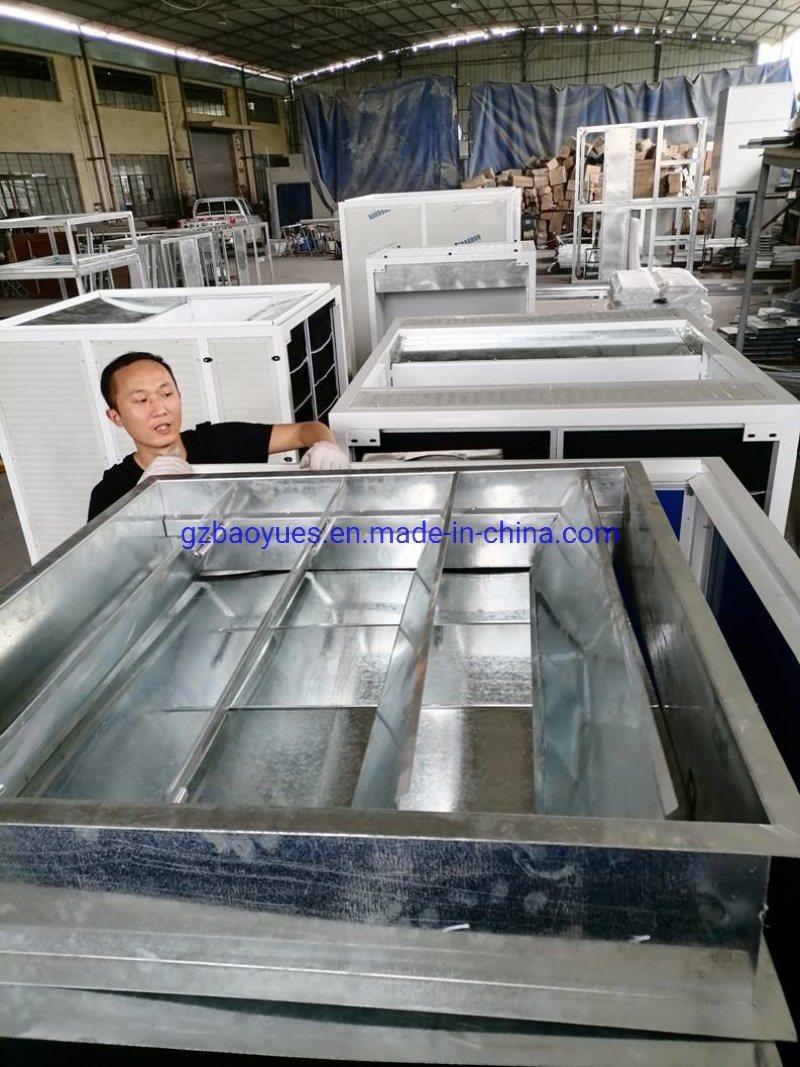

Parts details:

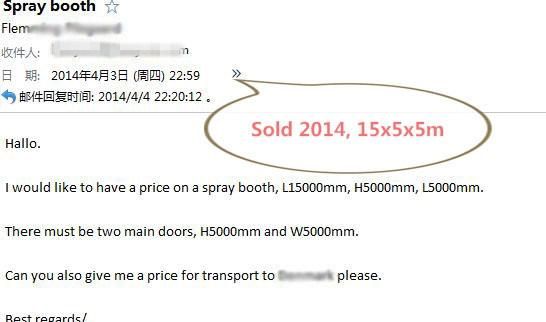

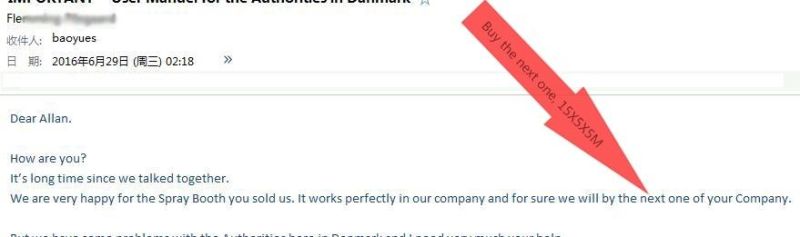

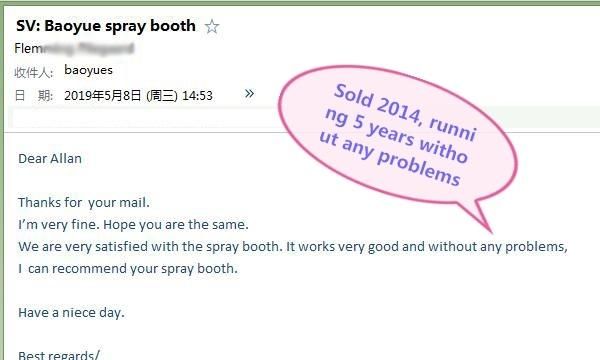

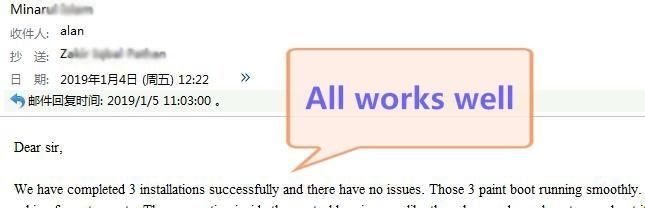

What customer saying:

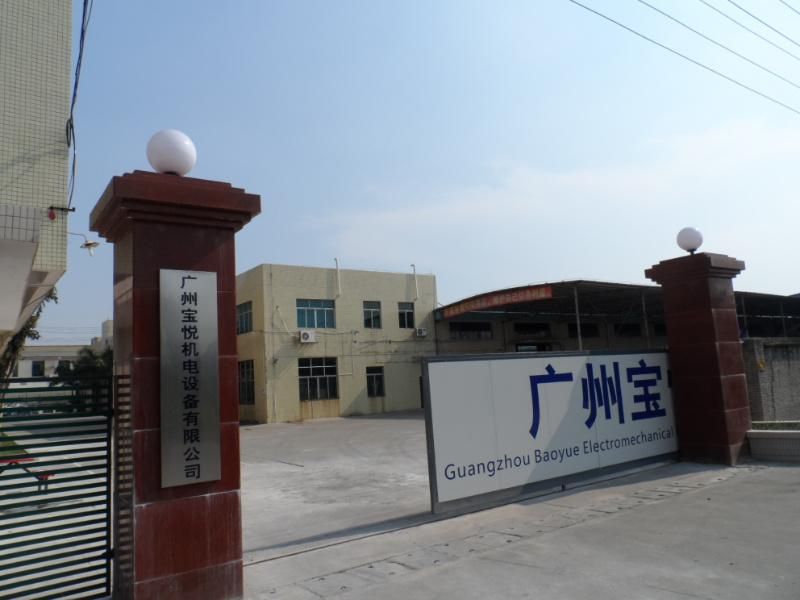

Factory show:
