• Model NO.：FTL-16
• Car Make：Overhead
• Brand：Optelec
• Name：Shock Absorber
• Length：1670mm
• Suitable Cable Dia：14.31~19.30mm
• Conductor Type：Stranded
• Conductor Material：Aluminum
• Sheath Material：PVC
• Insulation Material：PE
• Material Shape：Round Wire
• Range of Application：Cold-Resistant
• Certification：ISO9001
• Transport Package：Wooden Case
• Specification：CE, RoHS, SGS, ISO
• Trademark：Powtech
• Origin：China
• HS Code：39269090
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. FTL-16 Car Make Overhead Brand Optelec Name Shock Absorber Length 1670mm Suitable Cable Dia 14.31~19.30mm Conductor Type Stranded Conductor Material Aluminum Sheath Material PVC Insulation Material PE Material Shape Round Wire Range of Application Cold-Resistant Certification ISO9001 Transport Package Wooden Case Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 39269090 Production Capacity 100000PCS/Month

Product Description

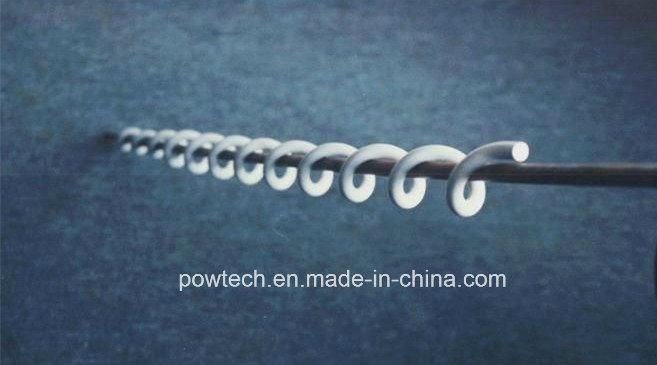

PVC spiral type vibration damper for ADSS cable




Related Products:


Description:
Spiral vibration damper is made of high-strength, antigenic and high-elasticity PVC plastic, easy to install and operate. The spiral vibration damper is an interference type damper to attenuate vibration amplitude by impact with its damping section and especially designed for ADSS cable.

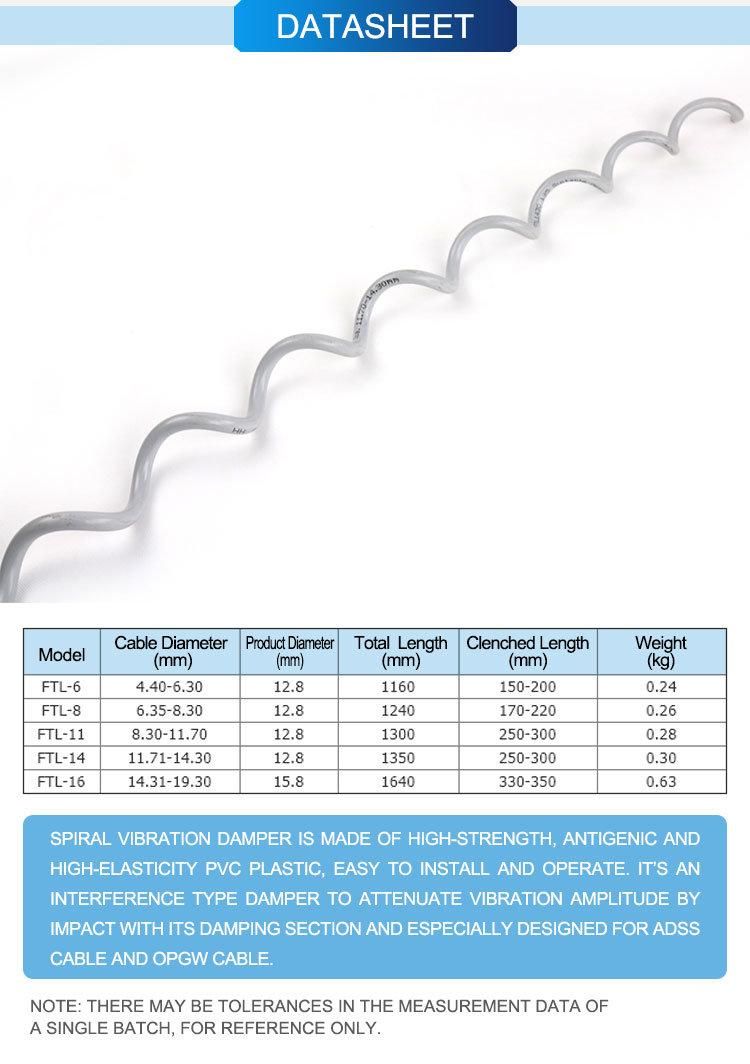

Technical Specifications:

Product Model	Cable Diameter(mm)	Gripping Length L1(mm)	Total Length (mm)	Weight(Kg)
FTL-11	8.3~11.7	250	1300	0.28
FTL-14	11.71~14.30	250	1350	0.30
FTL-16	14.31~19.30	330	1670	0.66

Warehouse:

Instalaltion Guide:
