Original Factory Produce Economy Spray Booth Paint Booth Car Spray Booth Oven

GZ GUANGLI EFE CO., LTD.
  • After-sales Service：on Line Service
  • Warranty：12 Months
  • Type：Spray Booth
  • Certification：CCC, CE
  • Substrate：Steel
  • Brand：Guangli

Base Info

  • Model NO.：GL Series
  • Coating：Painting
  • Airflow Direction：Fully Undershot-type
  • Heating Mode：Diesel
  • Paint Mist Treatment：Dry-type
  • Condition：New
  • Colour：Bule,Grey,Orange
  • Safe Door：1 Piece in The Side Wall, with Pressure Lock
  • Panel Color：White
  • Keep Warm Material：EPS, Rock Wool as Optional
  • Manufacture：Guangli
  • External Size：7.0*5.3*3.5
  • Internal Size：6.9*3.9*2.7
  • Door Width：3 M
  • Door Height：2.66m
  • Air Flow (Cubic Meter/Hour)：24000
  • Inside on-Load Air Speed(M/S)：0.3-0.5
  • Power(Kw)：18
  • Vehicle Suited：Saloon Car
  • Transport Package：20 Gp Can Hold 1 PCS
  • Specification：Internal Size 6.9 x 3.9 x 2.7(m)
  • Trademark：GuangLi
  • Origin：China
  • HS Code：8419899090
  • Production Capacity：2000

Description

Model NO.GL3000-A1 ( CE standard)External Size7.0*5.3*3.5(m)Internal Size6.9*3.9*2.7(m)Wall panel colour Whitewall panel keep warm materialRock Wool, thickness:50mmWall panel colour steelThickness:0.426mm with metal edge cover

Door :Enter size3*2.66(m)Structure3 folded sheet metal process without framecolourorange, or blue or greyFront horizontal panel and front vertical panelsWhiteMaterial Rock woolSafe doorwhite; 2000*800(mm), 1 piece in the side wall, with pressure lock
with one pc of ramp for safe door and with LED exit light
Light system:Top light(2) sides*(5) sets* (4) pcs, LED 18W/piece
-With tempering glass cover
-With aviation connetor
-with full frame for light box for ensurring the sealSide light(2)sides*(4)sets*(2)pcs, LED 18W/piece
-with tempering glass cover
-with aviation connector
-with full frame for light box for ensuring the sealGenerator:ColorWhite, Iron frame with Aluminum angelBurnerItaly Riello diesel burner G20Intake Fan1 set of 7.5 kw with M style pre-filter With explosion-proof impellerExhaust Fan1 set of 7.5 kw without pre-filterFan capacity(30000)M3/hDuct&Chimney ductWith 5m exhaust duct.

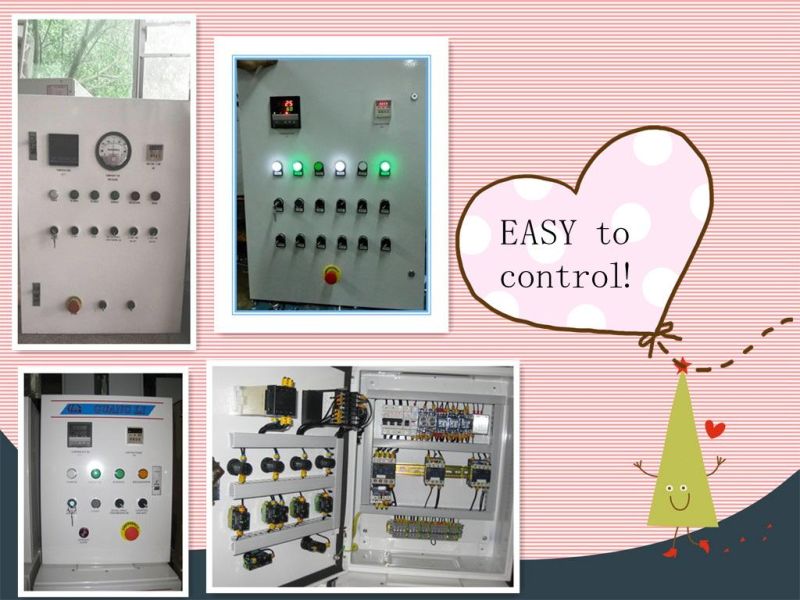

5m straight chimney and 2 small bends.Motor Voltage380V/50HZ/3PH(other voltage contact me)Control boxCE components;Motor soft start; Without 1 pcs pressure meter
All components should be CE standard, and the control box voltage should be as 24 V.
Basement:Floor full gridsFloor filter2  rows/setRamps2 pcs of veins plates style ramps
Filter Frame:Top filter 4 pcs/setStructureHinge installed iron welded, powdered
Automatically stop when preset time is up. ---Constant temperature spraying

Total Power: 18 KW

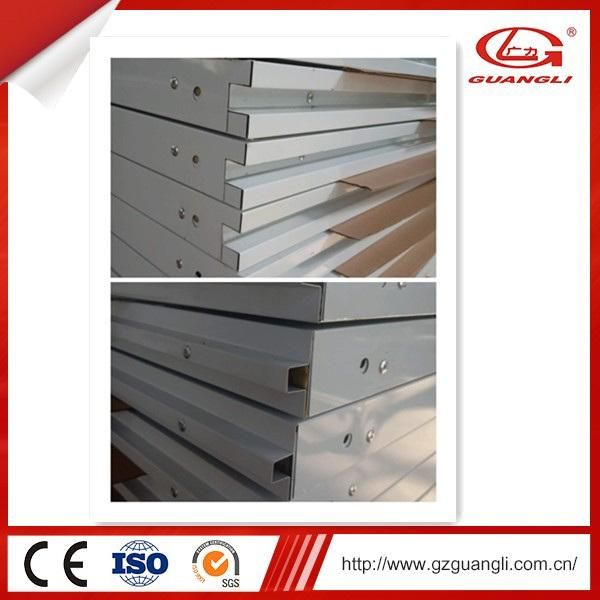

Optional wall panel structure--- stronger

Original Factory Produce Economy Spray Booth Paint Booth Car Spray Booth Oven

Original Factory Produce Economy Spray Booth Paint Booth Car Spray Booth Oven
Original Factory Produce Economy Spray Booth Paint Booth Car Spray Booth Oven

Original Factory Produce Economy Spray Booth Paint Booth Car Spray Booth Oven


Original Factory Produce Economy Spray Booth Paint Booth Car Spray Booth Oven
Original Factory Produce Economy Spray Booth Paint Booth Car Spray Booth Oven

Original Factory Produce Economy Spray Booth Paint Booth Car Spray Booth Oven

Our Customers

We have provided products and service for a number of customers in automotive industry, such as GAC Honda, GAC Toyota, GAC Motor, GAC Fiat, GAC Mitsubishi, Dongfeng Peugeot Citroen, Dongfeng Honda, Dongfeng Motor, Dongfeng Yulon, Dongfeng Nissan Qichen, Dongfeng Yueda Kia, BYD, Jiangling Motor, MG Motor, Chery Automobile, JAC, Southeast Motor, BMW, Audi, FAW Toyota, FAW Mazda, FAW Hongqi, and more.

Original Factory Produce Economy Spray Booth Paint Booth Car Spray Booth Oven



Our convention exhibition
