Down Draft Painting Spray Booth CE Automotive Paint Equipment High Standard China Paint Booth
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Warranty:2 Years
- Type:Spray Booth
- Certification:CE
- Substrate:Steel
- Brand:Infitech
- Coating:Powder Coating
Base Info
- Airflow Direction:Fully Undershot-type
- Heating Mode:Diesel
- Paint Mist Treatment:Dry-type
- Condition:New
- Walls:50mm Thick Rock Wool Panel
- Plenum Height:600mm
- Basement Height:350
- Filter Area:32mm2
- Filters:High Efficiency Filters
- Fan:Centrifugal Fan, 35,000m3,H
- Empty Loaded Air Speed:0.3m,S
- Heat:315kw Heat Exchanger
- Noise:<78dB
- Transport Package:Polyfoam and Metal Frame
- Specification:8000*4000*2800mm(L*W*H)
- Trademark:INFITECH
- Origin:Guangzhou, China
- HS Code:8419899090
- Production Capacity:900 Sets,Year
Description
INFITECH European standard luxury auto refinish car automotive waterborne water based spray paint boothDesign standard BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 Airflow Full downdraft Internal dimensions 8000 x 4000 x 2800mm (L X W X H) External dimensions 8110 x 5760 x 3810mm (L X W X H) Plenum height 600mm Basement Full grids, 350mm high Drive-in ramp 1 set, pneumatic Entrance door 1 set, 3200 X 3050mm (W X H) Personnel door 1 set, 800 X 2000mm (W X H) Ceiling lighting 10 sets, each 4 X 18W, 720W total, LED lamp Sidewall lighting 10 sets, each 2 X 18W, 360W total, LED lamp Brightness >1,000LUX Purification Pre-filter, ceiling filter, floor filter, extract filter Air intake Direct-type turbine fan, 11KW, SIEMENS Air exhaust Direct-type turbine fan, 11KW, SIEMENS Air volume 35,000m3/h Empty loaded air speed +/-0.30m/s Heating system 315kw heat exchanger, RIELLO gas burner RS5D Controls CE standard control box Rated power 26KW
Features

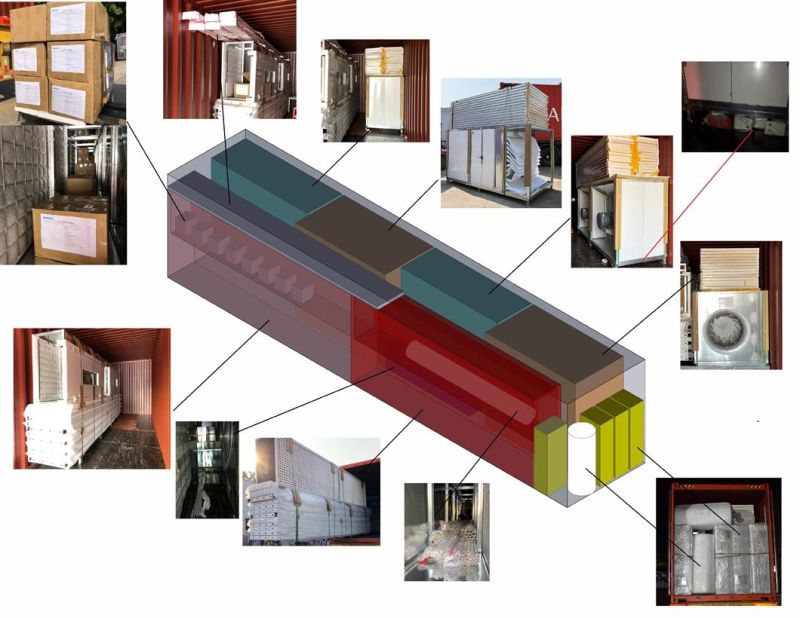

Packaging & Shipping

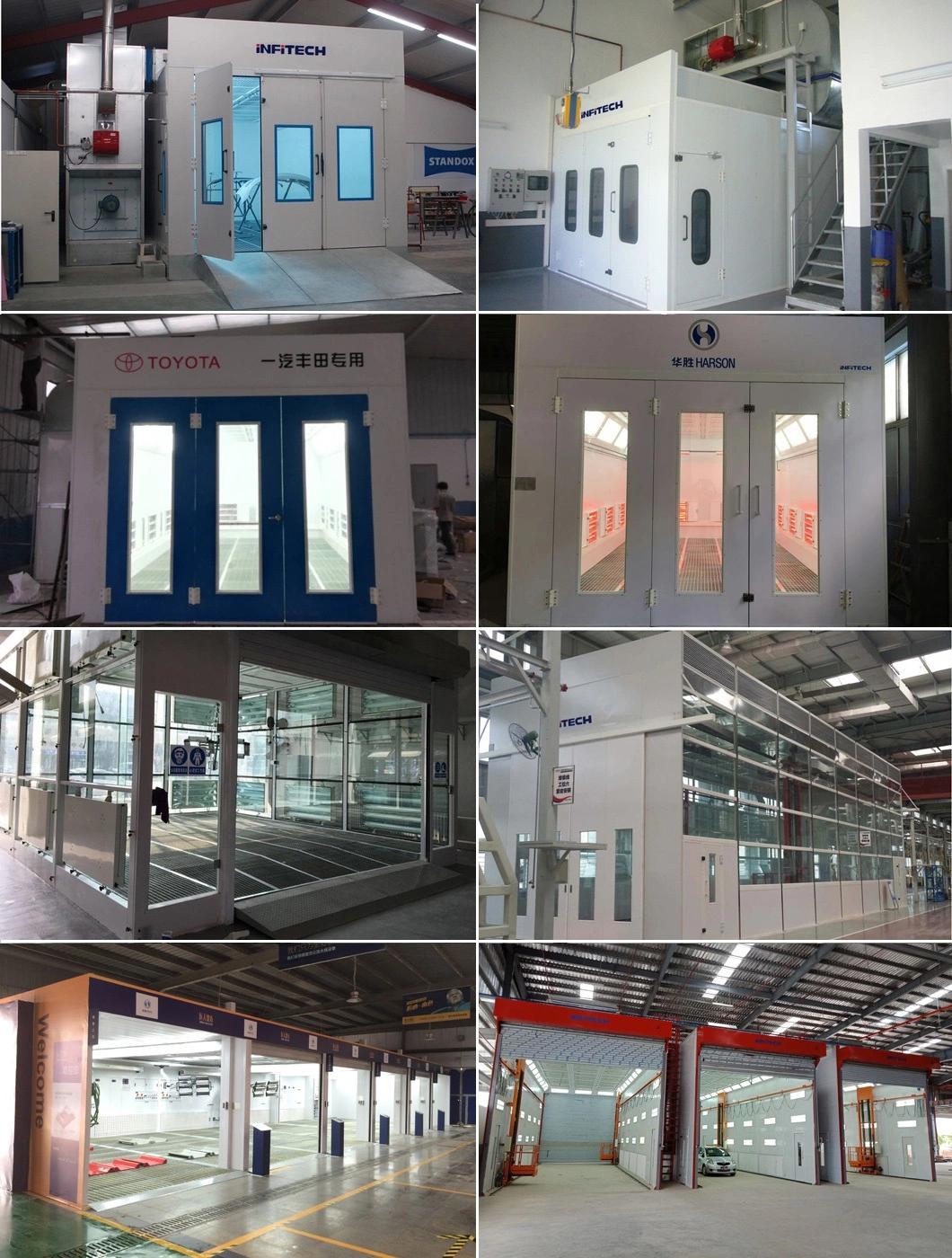

Engineering cases

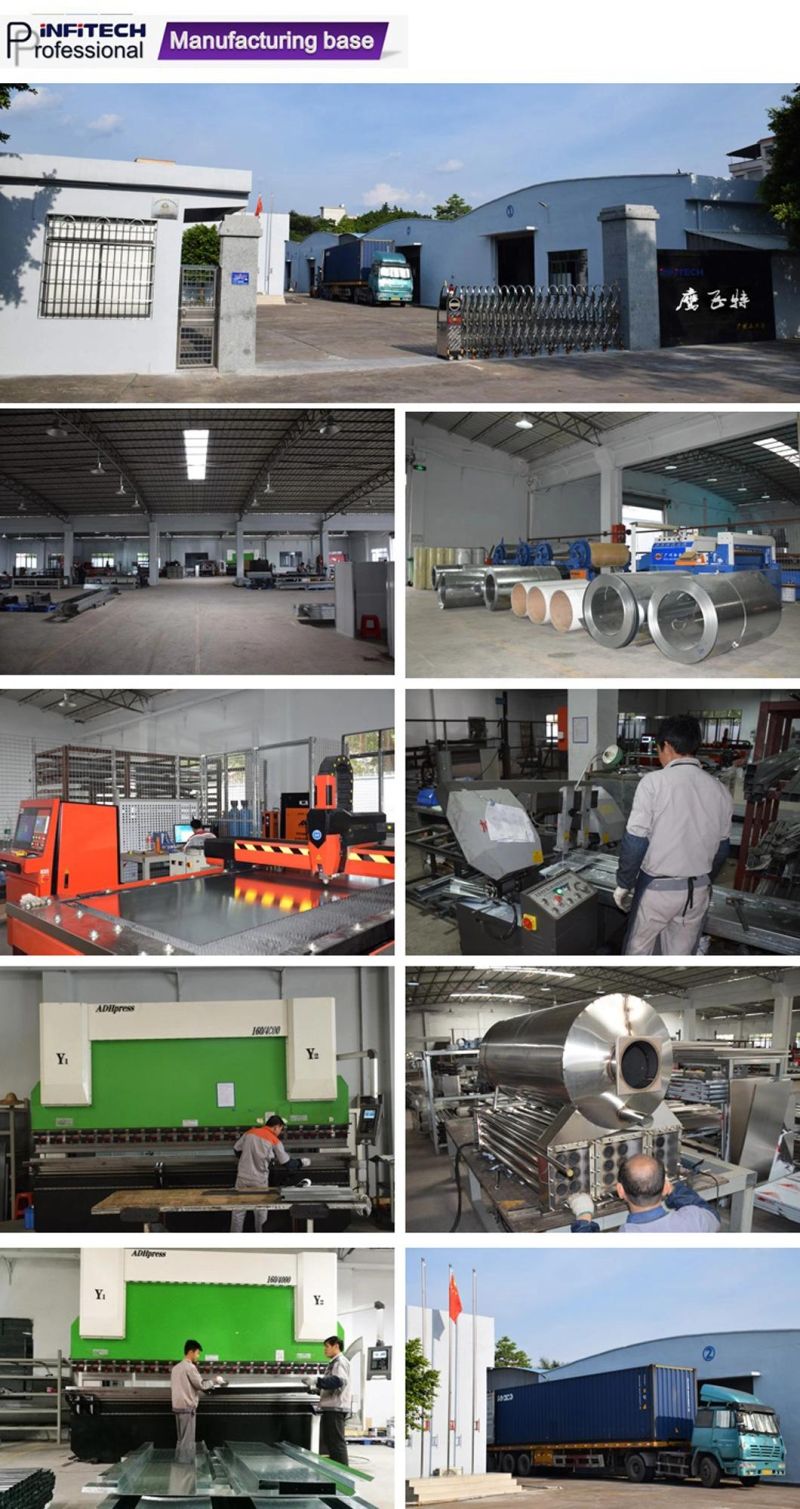

Company introduction
INFITECH is professional manufacturer of CE standard spray booths. We provide complete spray workshop solution including design and layout, technical consultation, manufacturing, sales, installation and maintenance. And we pride ourselves in providing personalized and ideal paint workshop solution that best suit customers' requirements, helping improve workflow, and maximize profits for shop owners.
BS EN 60204: 2006 + A1: 2009
Features
Airflow • Downdraft for spray and cure • Controlled airflow ceiling | Construction • White pre-coated galvanized steel • Dual-skin insulated panels filled with rock wool, 50mm thick • 600mm high plenum • Full grids (900kg/wheel), 350mm high basement |

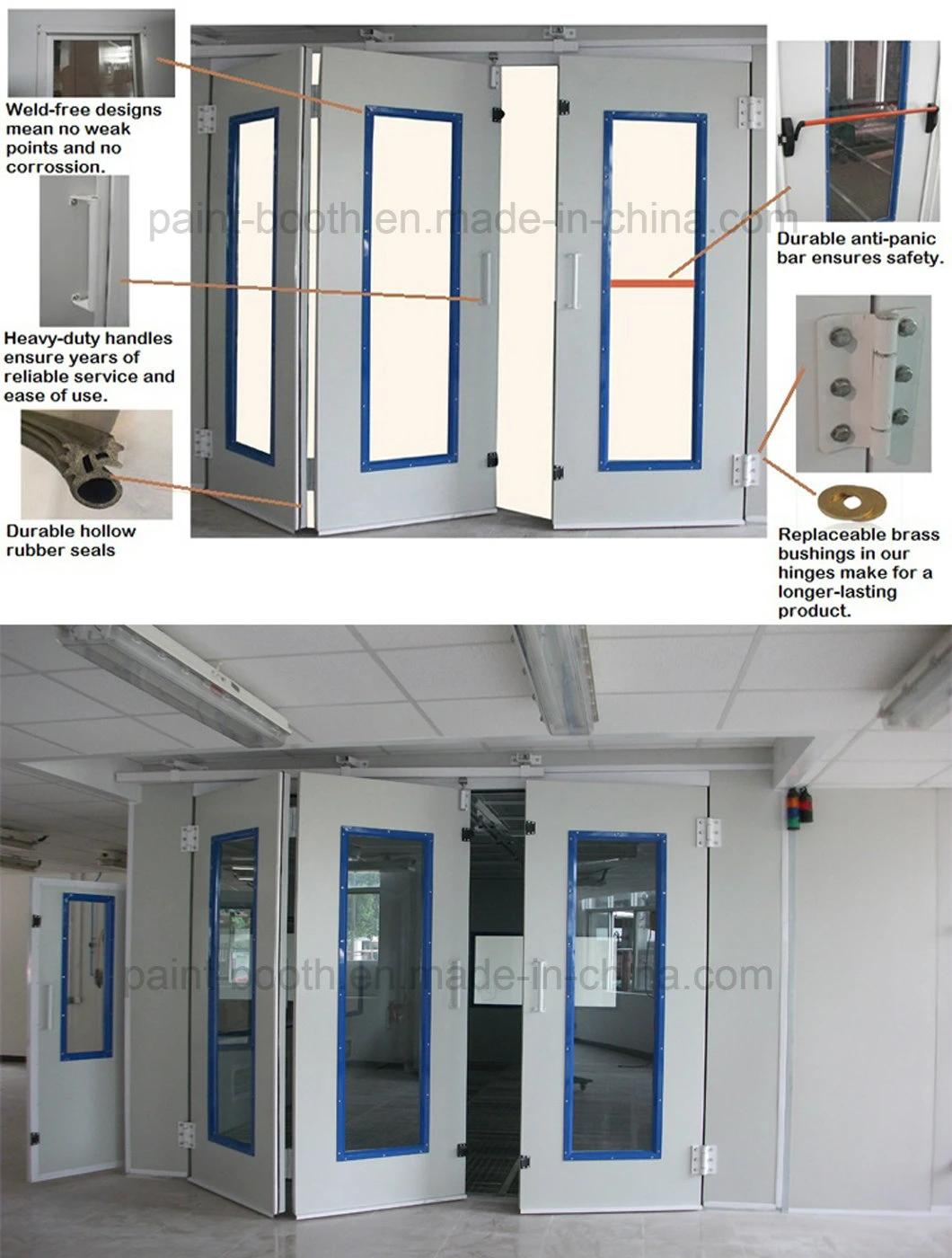

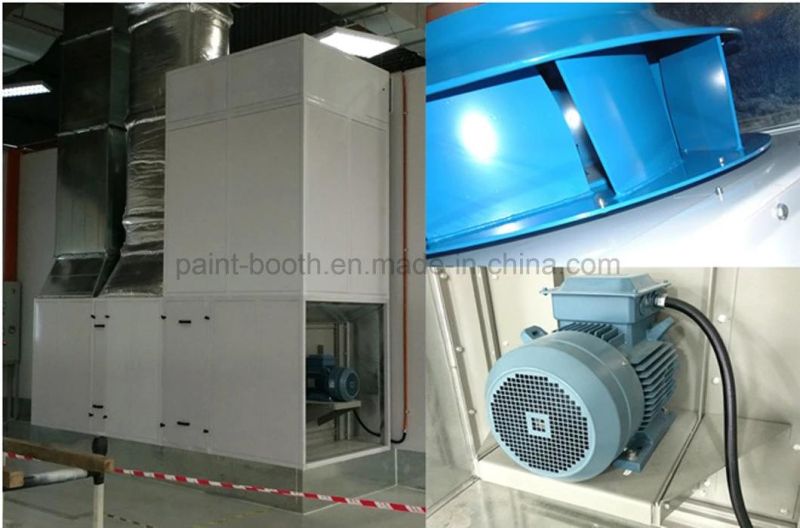

Doors • 3-wing entry door with tempered glass window • Personnel door with observation window | Heat • Intake and exhaust motors, 11kw, SIEMENS motor • RIELLO gas burner RS5D, 315kw heat exchanger |

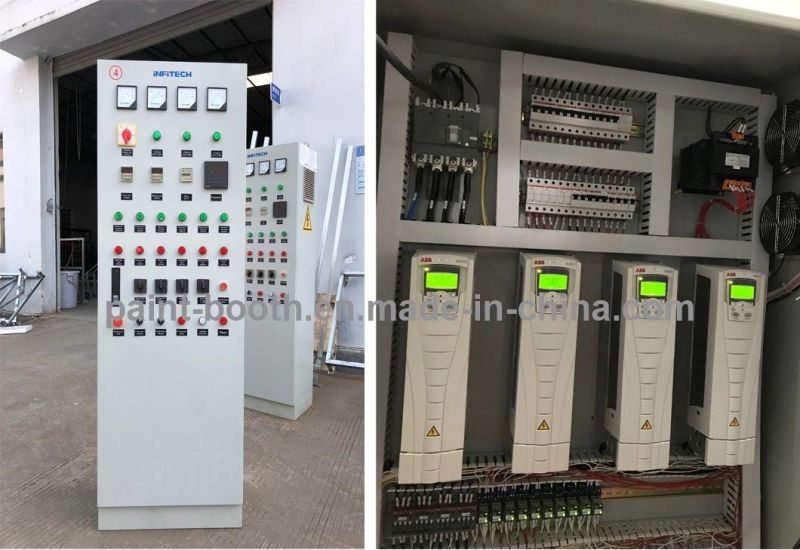

Filtration • Pre-filter: EU3 grade pre-filter plate filter • Ceiling filter: F5 grade filter cotton, Model SP-600G • Floor filter: G2 grade fiberglass paint arrestor filters • Extract filter: Simple activated carbon filters | Controls • PLC controller, pressure gauge Functions: Painting, flash, baking, cooling, lighting, emergency stop switch, failure indication, over-temperature alarm indication, motor over-load and over-current protection |
