Oil Heating Build-in Ramp Auto Spray Booth /Paint Booth / Paint Cabinet

Qingdao Hua Yushun Commercial Co., Ltd.
  • Type：Spray Booth
  • Certification：CCC, CE, GS, SGS
  • Substrate：Sandwich Panel
  • Brand：Captain
  • Coating：Powder Coating
  • Airflow Direction：Fully Undershot-type

Base Info

  • Model NO.：D7006GS
  • Heating Mode：Diesel
  • Paint Mist Treatment：Dry-type
  • Condition：New
  • Inside Dimension：6900mmx3900mmx2700mm
  • Outside Dimension：7000mmx5350mmx3400mm
  • Front Door：3-Folds:3000*2600mm, Front and Back Door
  • Personal Door：1-Fold: 750*1800mm
  • Wall Panels：50mm EPS, 0.4mm Steel, 14kgs Density
  • Ceiling Panel：0.8mm Galvanzied Steel Sheet
  • Air Intake：2 Set 4kw Centrifugal Fan
  • Air Exhaust：1 Set5.5kw Centrifuga Fan
  • Damper：Pneumatic
  • Heaeting：Diesel Burner
  • Basement：300mm High with 3 Row Diamond Plate 2 Rows Grids
  • Ramp：8 PCS, 630X1800mm Long
  • Ceiling Lights：32PCS LED Lights
  • Color：White, Red, Blue, Grey, Orange
  • Transport Package：Export Container ,Pallet ,Disassembly with Carton
  • Specification：6900mmX3900mmX2700mm
  • Trademark：OEM,Captain
  • Origin：Jiangsu, China.
  • HS Code：8424899990
  • Production Capacity：196sets,Month

Description

 16 KW

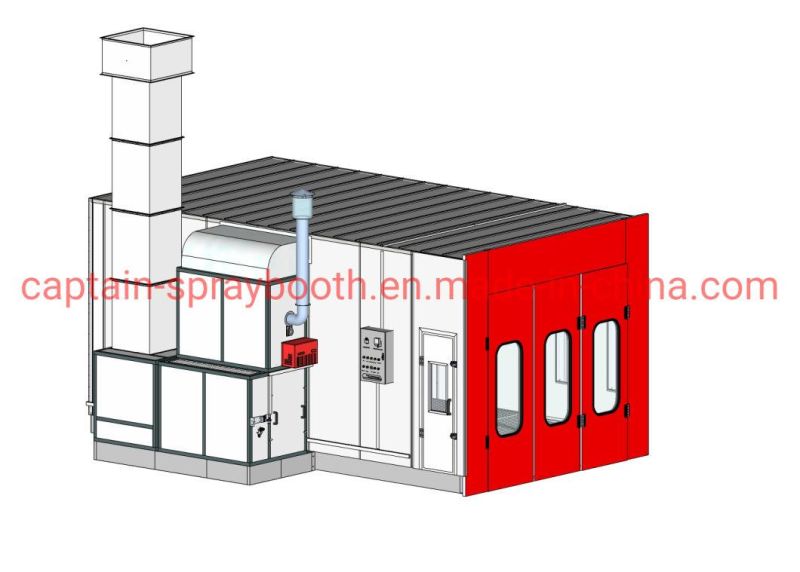

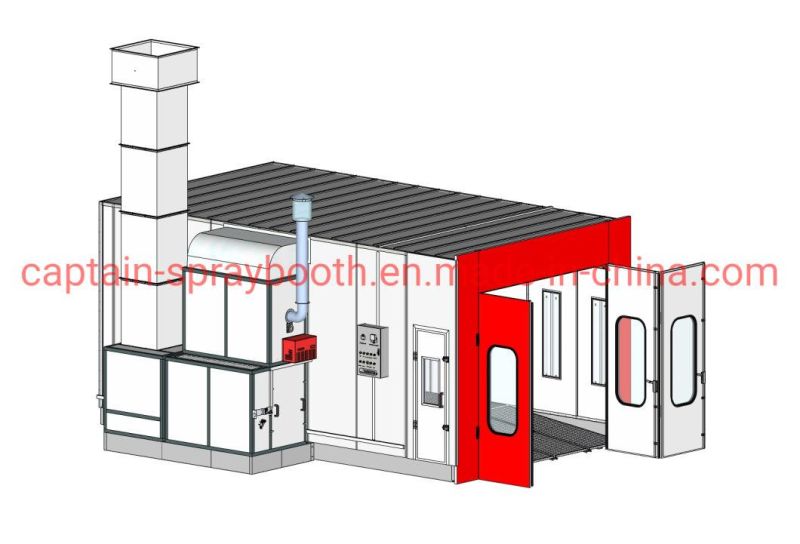

Design drawing:
Oil Heating Build-in Ramp Auto Spray Booth /Paint Booth / Paint Cabinet

Oil Heating Build-in Ramp Auto Spray Booth /Paint Booth / Paint Cabinet

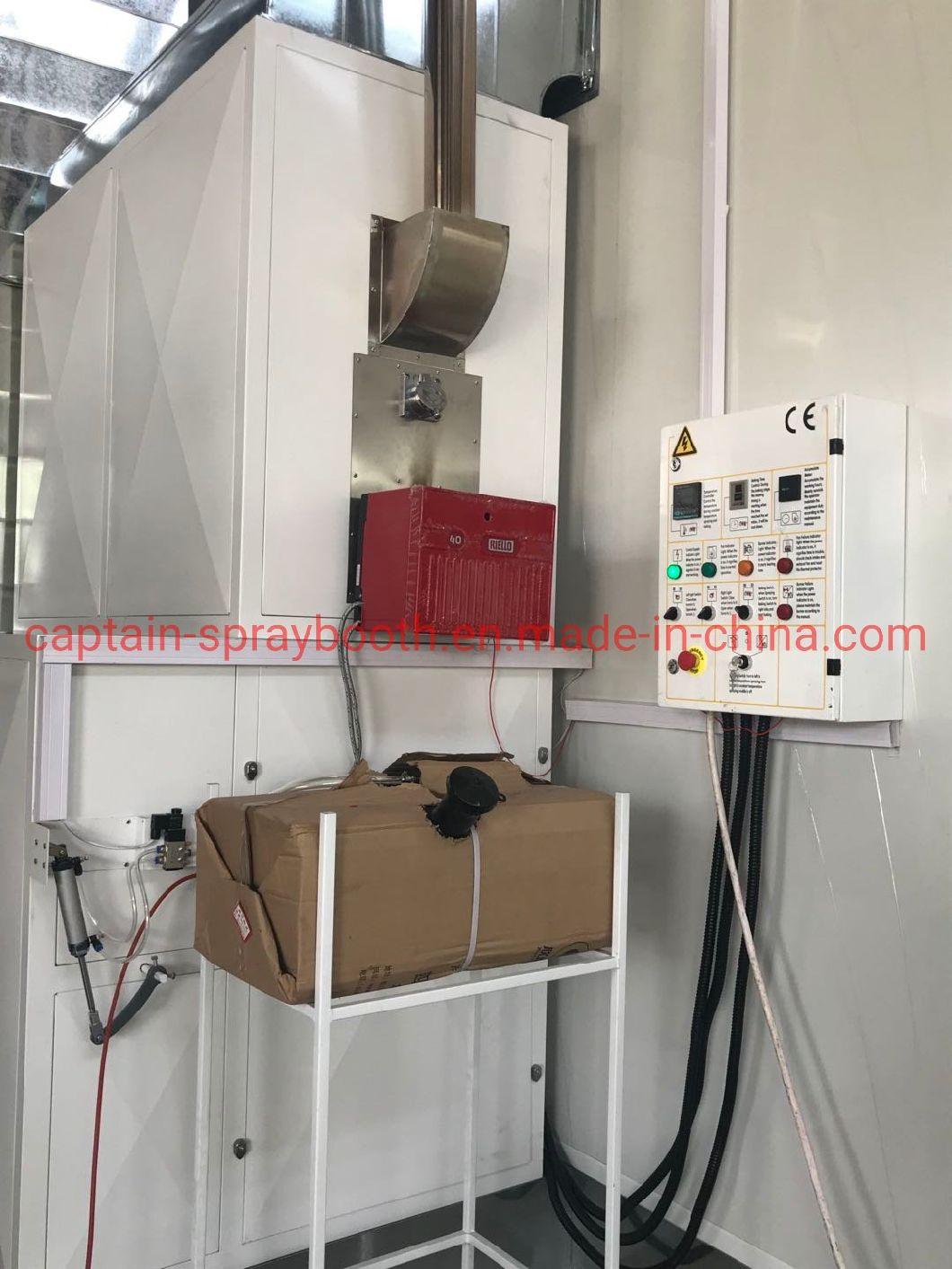

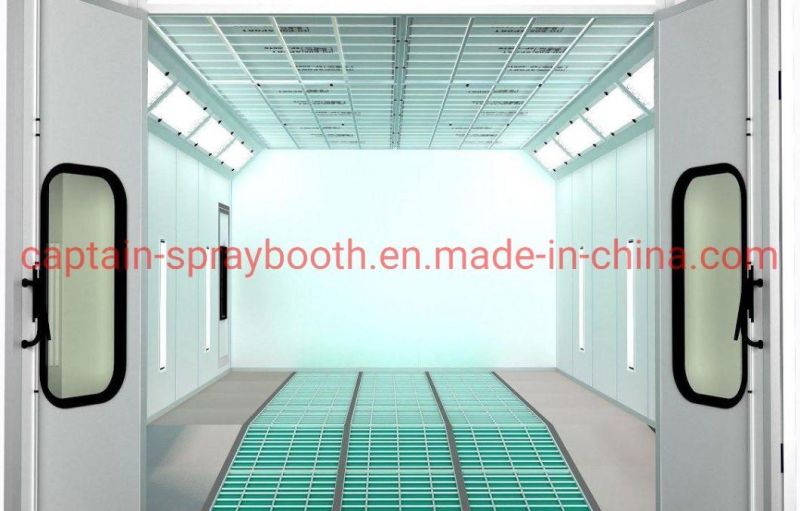

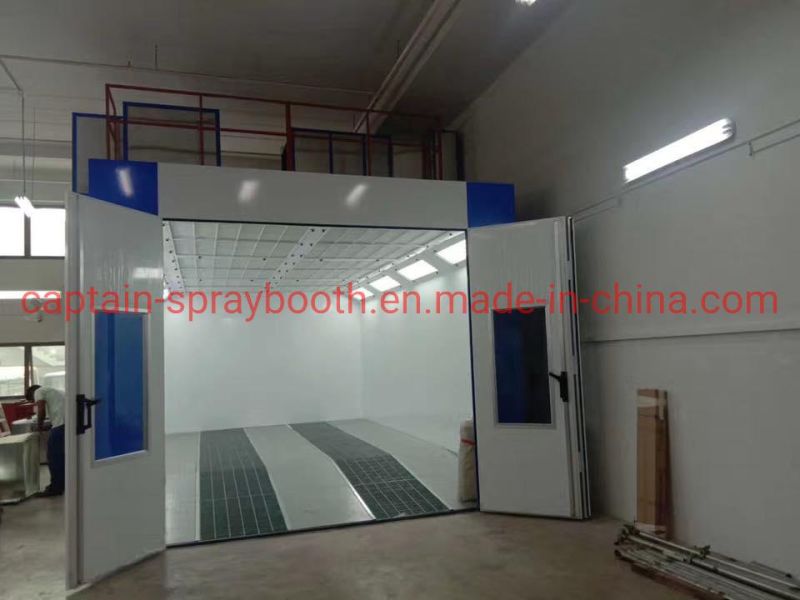

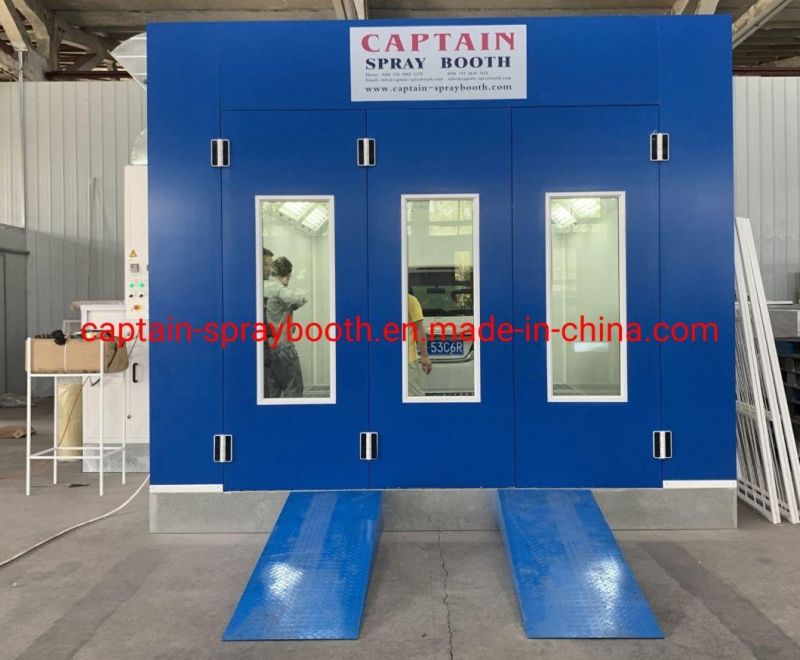

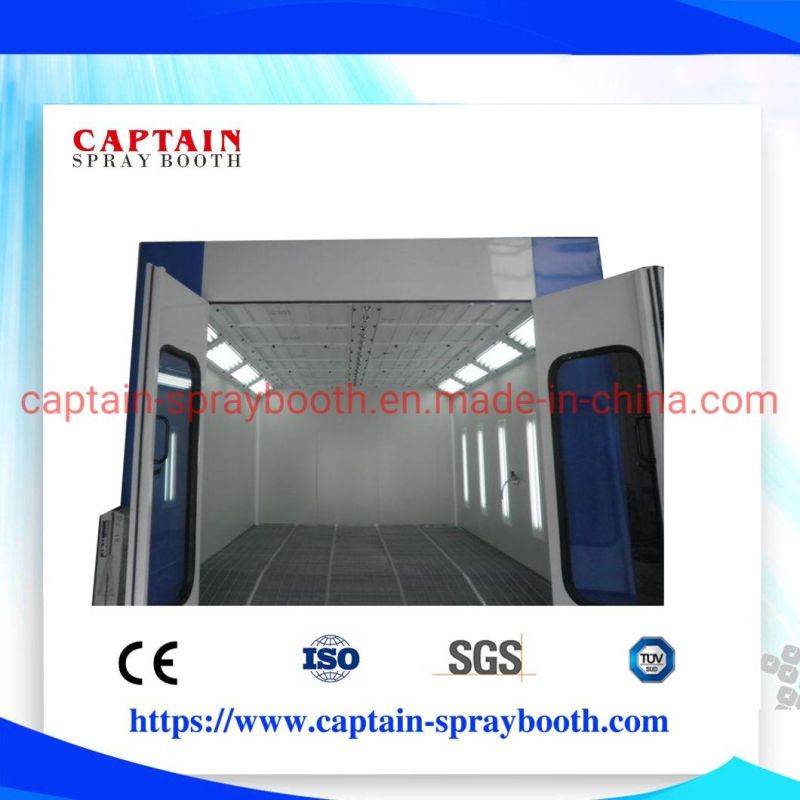

Real photos :

Oil Heating Build-in Ramp Auto Spray Booth /Paint Booth / Paint Cabinet
Oil Heating Build-in Ramp Auto Spray Booth /Paint Booth / Paint Cabinet

Oil Heating Build-in Ramp Auto Spray Booth /Paint Booth / Paint Cabinet

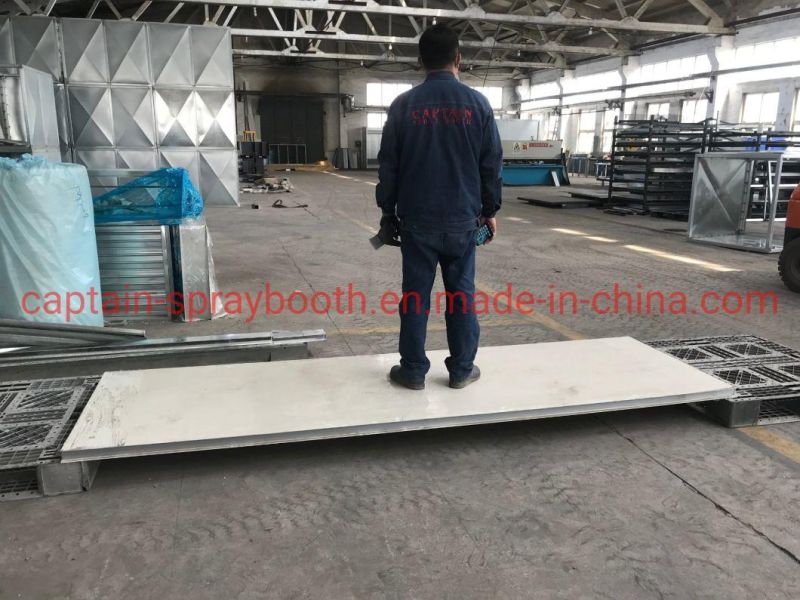

Materials
Oil Heating Build-in Ramp Auto Spray Booth /Paint Booth / Paint Cabinet
Oil Heating Build-in Ramp Auto Spray Booth /Paint Booth / Paint Cabinet

Oil Heating Build-in Ramp Auto Spray Booth /Paint Booth / Paint Cabinet

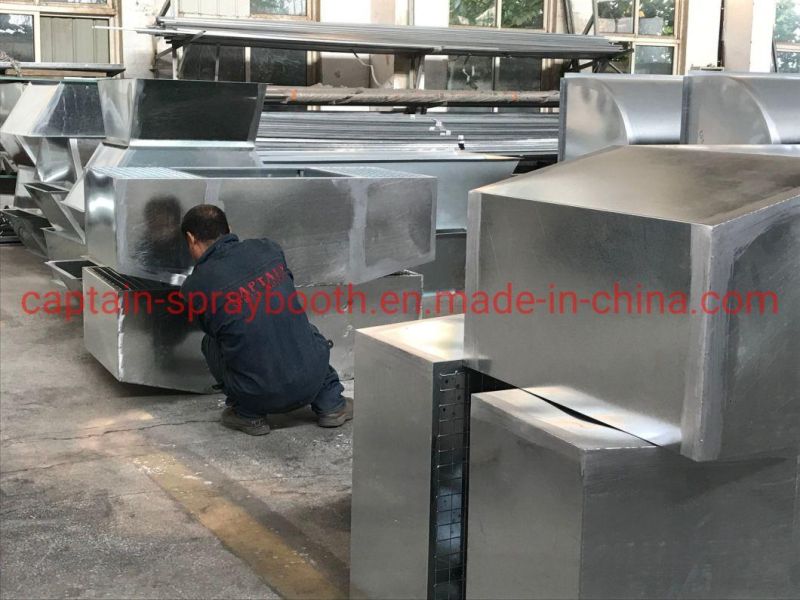

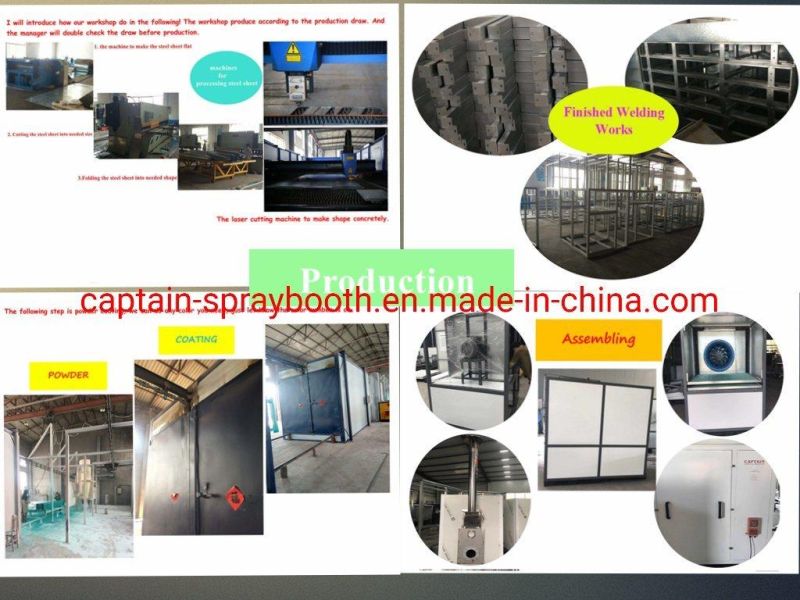

Production
Oil Heating Build-in Ramp Auto Spray Booth /Paint Booth / Paint Cabinet

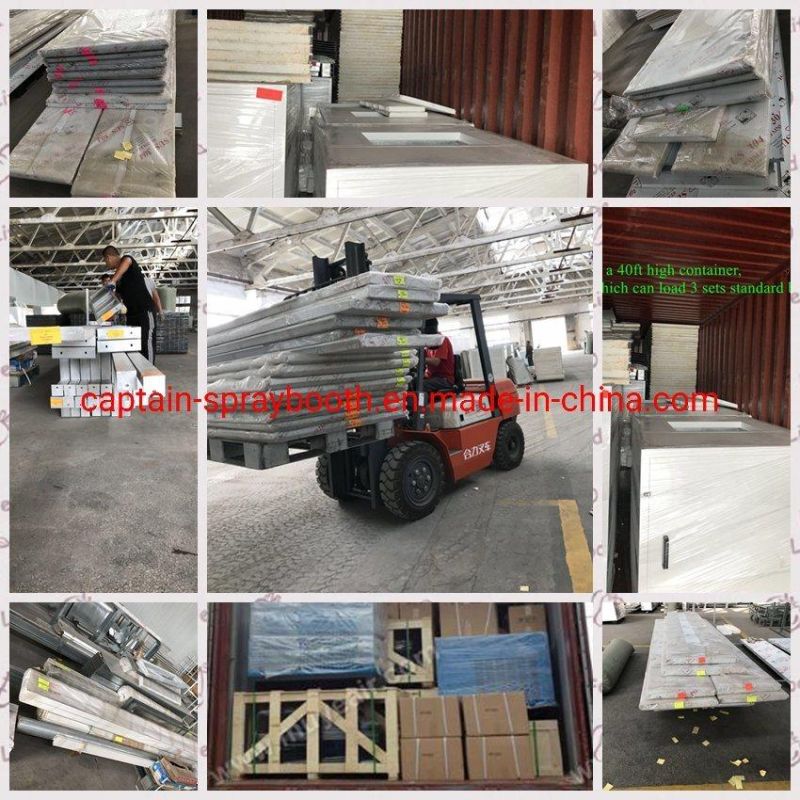

Package and Delivery
Oil Heating Build-in Ramp Auto Spray Booth /Paint Booth / Paint Cabinet

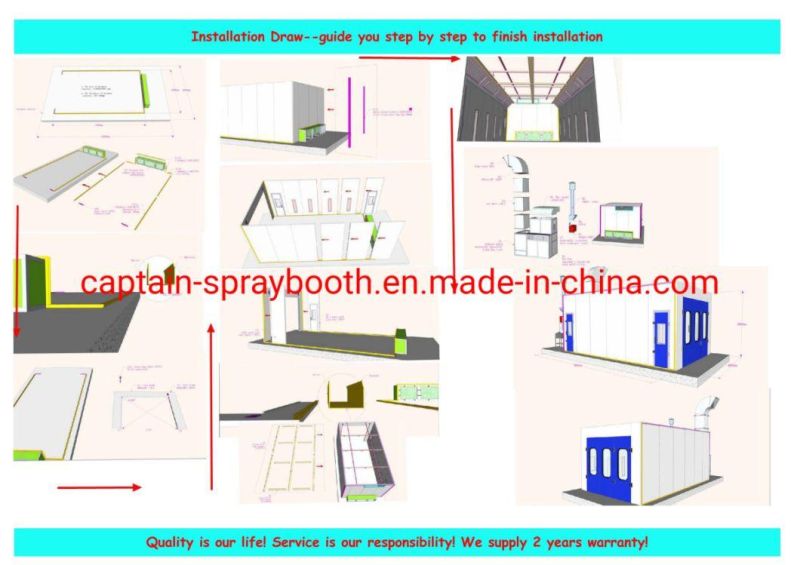

Installation Draw

Oil Heating Build-in Ramp Auto Spray Booth /Paint Booth / Paint Cabinet


Installed Model
Oil Heating Build-in Ramp Auto Spray Booth /Paint Booth / Paint Cabinet


Delivery time : after received you payment ,we will produce , for this standard model ,
the delivery time is 2-3 weeks .
Payment term: 50% TT IN ADVANCE , 50 % before delivery
After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included)
when your workers unloading the goods, If they find something damaged during transit by sea,
please take the pictures of the damage in the container and we will reissue you or give you some compensation.
(Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record)


Professional team from design to installation! Warmly welcome to visit our factory!
