• Model NO.：9.00x22.5
• Wheel Hub Diameter：21-24"
• Finishing：Full-Painting Silver
• Wheel Accessories：Hub Ring
• Certification：ISO, TUV, DOT
• Wheel Size：9.00X22.5
• Brand Name：Havstone, Havstar
• Rim：7mm
• Disc：14mm,16mm
• Bolt Holes：8,10
• Bolt Dia：26mm,27mm,32mm
• PCD：275mm,285.75mm,335mm
• Center Hole：214mm,220mm,281mm
• Bolt Hole Type：Sr22,Sr18,Straight
• Offset：175mm,0mm
• Transport Package：Pallet Standard Exporting Packing
• Specification：9.00x22.5
• Trademark：HAVSTONE, HAVSTAR
• Origin：Shandong, China
• HS Code：8708705000
• Production Capacity：10, 000 PCS,Month.

Basic Info.

Model NO. 9.00x22.5 Wheel Hub Diameter 21-24" Finishing Full-Painting Silver Wheel Accessories Hub Ring Certification ISO, TUV, DOT Wheel Size 9.00X22.5 Brand Name Havstone, Havstar Rim 7mm Disc 14mm/16mm Bolt Holes 8/10 Bolt Dia 26mm/27mm/32mm PCD 275mm/285.75mm/335mm Center Hole 214mm/220mm/281mm Bolt Hole Type Sr22/Sr18/Straight Offset 175mm/0mm Transport Package Pallet Standard Exporting Packing Specification 9.00x22.5 Trademark HAVSTONE, HAVSTAR Origin Shandong, China HS Code 8708705000 Production Capacity 10, 000 PCS/Month.

Product Description

HARVEST TYRE & WHEEL CO.,LIMITED

Product Description
1. Quality with TUV DOT INMETRO
2. Direct factory price
3. Advanced equipment from Germany and USA
4. After-sale service

We are professional manufacturer and trader for tubeless wheel rims in China.
Our production lines are all imported from USA or EU, All of our machines is new and advanced, they are in good conditions. So we can guarantee the quality of our products, which are suitable for bus, heavy duty truck/trailer.

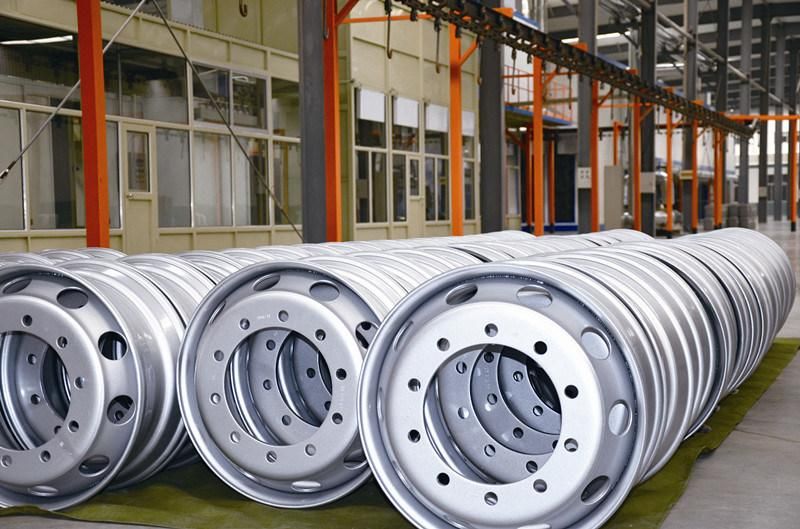

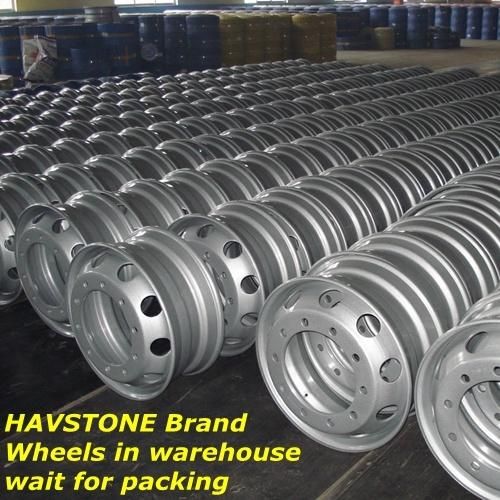

Now we can supply you with wide range sizes of truck wheels, from 17.5x6.00 to 24.5x8.25 with excellently quality. The offset and disc thichness can be changed if required. We could also mount wheels on tyres and offer demountable wheel rims.
Relative steel wheel sizes with excellently quality(DOT, TUV,Inmetro, ISO/TS16949 certification), competitive price and promptly delivery are also available:



bolt hole	bolt dia	PCD	Center hole	rim (mm)	disc(mm)	bolt hole type	offset
8	φ32	φ275	φ214	7	14	SR22	175
8	φ32	φ275	φ214	7	16	SR22	175
8	φ32	φ285	φ221	7	14	SR22	175
8	φ32	φ285	φ221	7	16	SR22	175
10	φ26	φ285.75	φ220	7	14	straight	175
10	φ26	φ285.75	φ220	7	16	straight	175
10	φ32	φ285.75	φ222	7	14	SR22	175
10	φ32	φ285.75	φ222	7	16	SR22	175
10	φ26	φ335	φ281	7	14	straight	175
10	φ26	φ335	φ281	7	16	straight	175
10	φ27	φ335	φ281	7	14	SR18	175
10	φ27	φ335	φ281	7	16	SR18	175
8	φ32	φ285	φ221	8	16	SR22	175
10	φ26	φ285.75	φ220	8	16	straight	175
10	φ32	φ285.75	φ222	8	16	SR22	175
10	φ26	φ335	φ281	8	16	straight	175
10	φ27	φ335	φ281	8	16	SR18	175
10	φ27	φ335	φ281	7	14	SR18	0
10	φ26	φ335	φ281	7	12	straight	0
10	φ27	φ335	φ281	7	12	SR18	0
