• Model NO.：BY-10 Non-standard
• Brand：Baoyues
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Paint Mist Treatment：Dry-type
• Product Name：Black Car Polish Booth
• Usage：Car(or Furniture) Polish, Painting
• Color：Customize Acceptable
• Certificate：CE, CCS, TUV, SGS
• Service：Professional Engineer Team for Install
• Warranty：1 Year
• Transport Package：3PCS,20gp
• Specification：CE, CCS, TUV, SGS
• Trademark：Baoyues
• Origin：China
• HS Code：84198990
• Production Capacity：90units,Month

Basic Info.

Model NO. BY-10 Non-standard Brand Baoyues Coating Painting Airflow Direction Cross-flow Type Paint Mist Treatment Dry-type Product Name Black Car Polish Booth Usage Car(or Furniture) Polish, Painting Color Customize Acceptable Certificate CE, CCS, TUV, SGS Service Professional Engineer Team for Install Warranty 1 Year Transport Package 3PCS/20gp Specification CE, CCS, TUV, SGS Trademark Baoyues Origin China HS Code 84198990 Production Capacity 90units/Month

Product Description

Black car polish booth:

1.Timely delivery
2.CE,CCS approved, safety control
3.Low noise,environmental system

4.professional team for installation abroad

5.Italy RIELLO burner

6.1 year warranty

Detail Show:

 Customers:
Black car polish boothBlack car polish booth
 Introduction of Baoyues spray booth:
Guangzhou Baoyue Electromechanical Equipment Co.,Ltd,which specilize in the design, manufacture and sale for auto spray/backing booth,industry painting equipment, high temperature drying plant,  has sucessfully exported our products to Europe, Africa, America and Russia etc.and get a positive feedback. We own the factory in Guangzhou of China, all the customer are welcomed to visit our factory. The competitive price and high quality of our products can be very helpful to your business.
Black car polish boothBlack car polish booth

Outside Dimension	7550×3550×3100mm(L×W×H)
Inside Dimension	6300×3450×2650mm(L×W×H)
Plenum Dimension	6300×3450×450mm(L×W×H)
Basement	300mm galvanized steel basement, full grilles made by flat bar and  twisted steel then galvanized.  3 ramps, external setting, 2000×750mm(L×W), surface is painted.
Room Body	Back side with 50mm EPS wallboard, the other 3 sides with PVC curtains;
Light System	Ceiling lights 8units×4pcs=32pcs×36W, with electronic ballasts
Generator Cabinet	Exhaust from rear side;  square steel frame , galvanized steel cover.
Intake and Exhaust System	1 unit 5.5KW double intake centrifugal fan, model YDW-4.5S,  air capacity: 15500 m  3 /h, electric damper for exhausting.
Purification System	Pre-filter, high efficiency filter, exhaust fiberglass filter
Roof	Galvanized steel plates

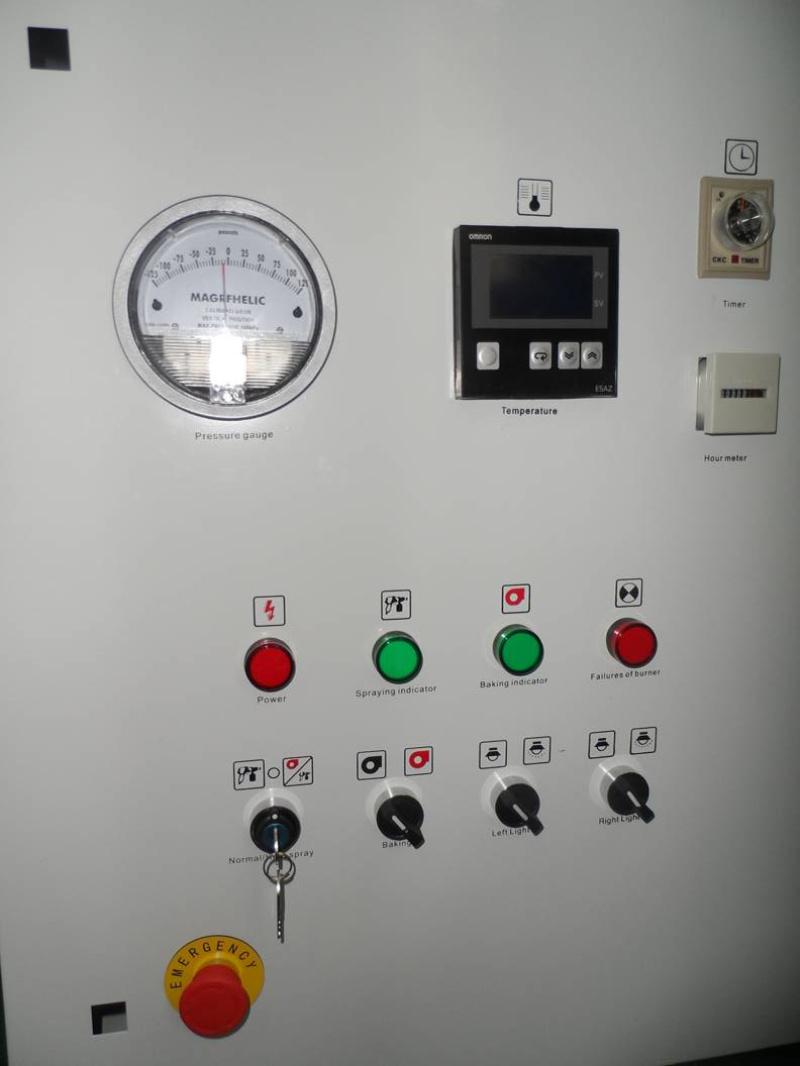

Control System	Fan operation switch, lighting switch, emergency stop;
Install way	Suspending steel hook from roof of building or steel column supporting;
Total Power	6.7KW

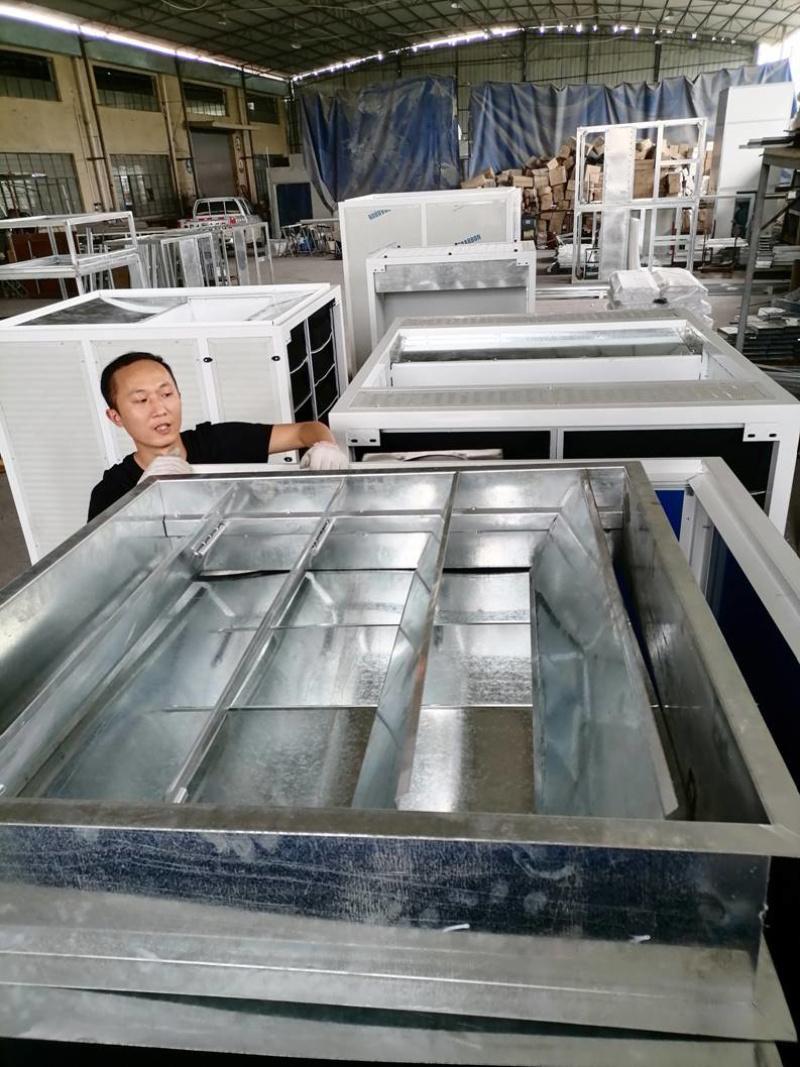

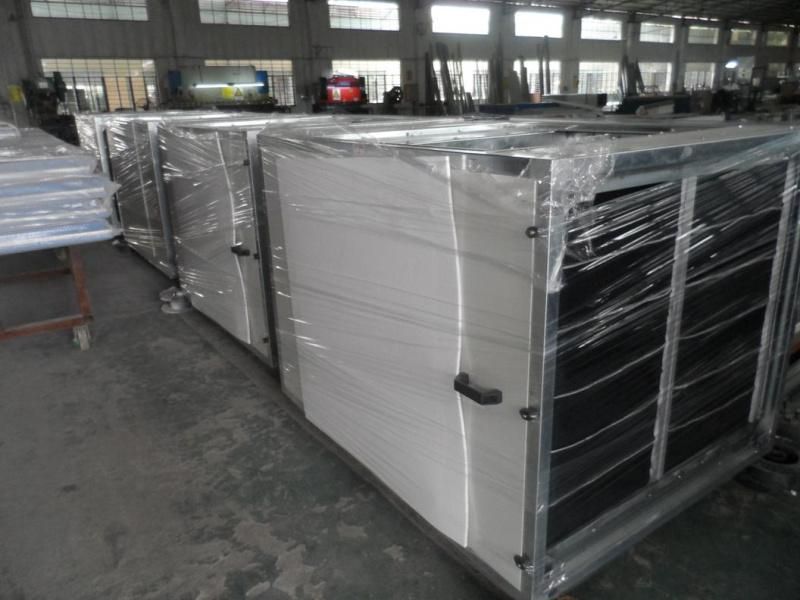

Parts details:

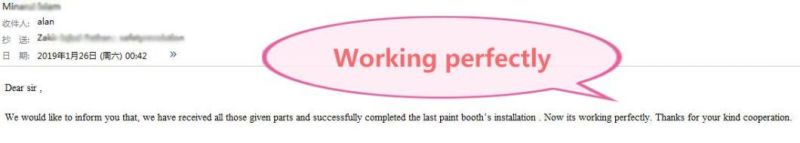

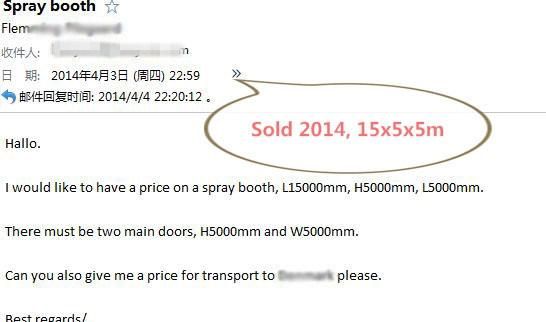

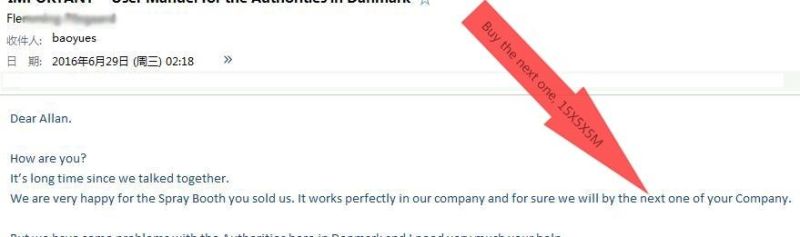

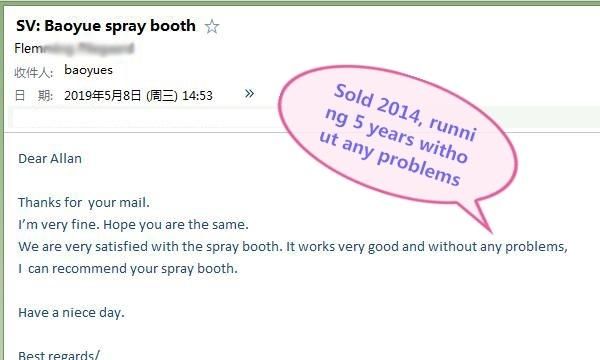

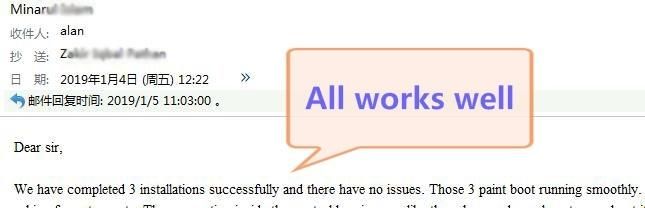

What customer saying:
