• Model NO.：80876716
• Classification：Drum
• Drum Brakes Classification：Brake Drum
• Main Market：South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Central America, South Asia
• Height：246mm
• PCD：335mm
• No. of Holes：10
• Outer Diameter：419mm
• Path：190mm
• Spigot：290mm
• Dia. of Holes：24
• Weight：48.5kg
• Transport Package：Pallet
• Specification：ISO, TS16949
• Trademark：Pujie
• Origin：Qingdao, China
• HS Code：870830990
• Production Capacity：300, 000 PCS,Year

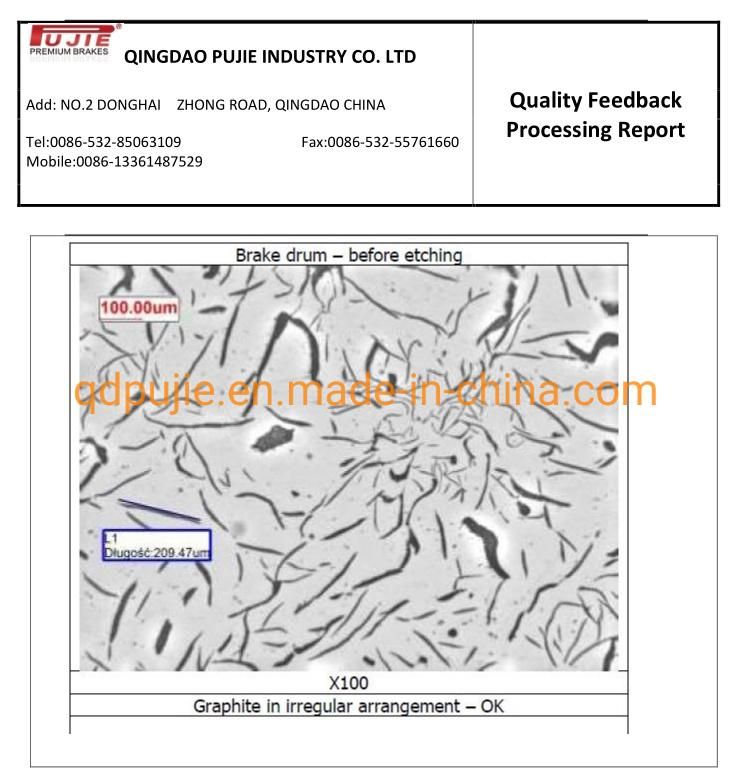

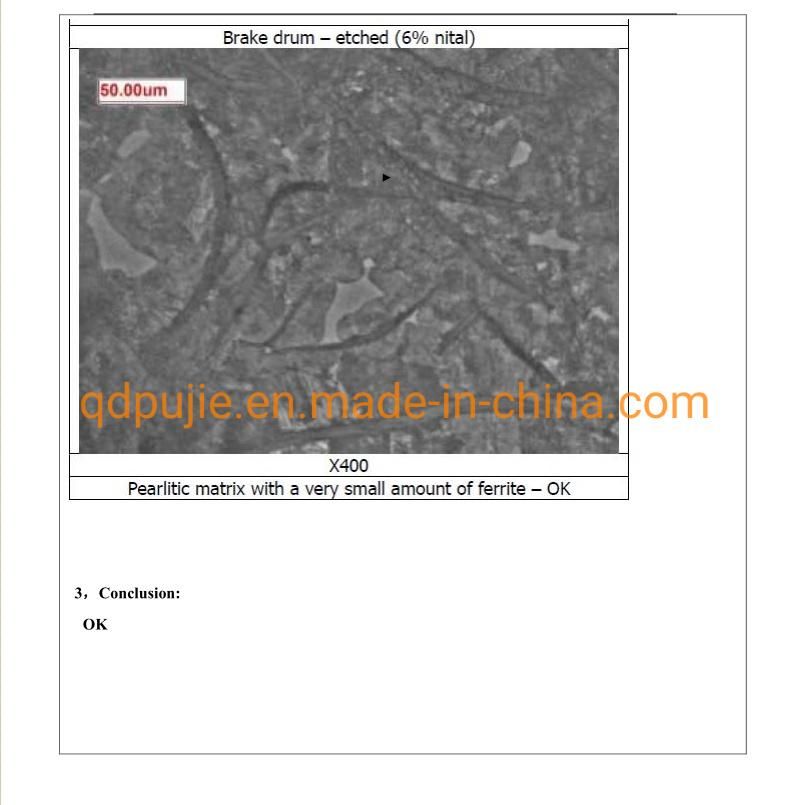

Test Certification ReportTest Report No. : PJ1201206Inspection Manufacturer : Qingdao Pujie Industry Co. Ltd Export SeriesBrake DrumTechnical RequirementSampling InspectionTest ResultDisqualificationResultnAcReAStrength of extention Rm,Mpa≥2201012340√Hardness,HBW180~240194Metallographic StructureGraphite SgapeA Shape≥90%101√0√Grapgite Length3~5 Level5 LevelPearlite Quantity≥95%≥95%Varbide Quantity1~2 Level1 LevelPhosphide Eutectic1~2 Level1 LevelChemical Component Analysis,%C3.3~3.71013.50√SI1.4~2.01.6Mn0.5~0.90.8P≤0.120.08S≤0.100.07BSurface QualityCasting Compent1. Washed by shot blasting machine                                2. No residual oxide , no residual sand, has no butt, casting fin or air buddle112√0√Brake DrumNo cold shut, no crack, no cinder pig, no pore and so on√Surface of brake drumNo grease dirt√Form and location toleranceSurface of friction cylinder radial full indicator movement,MM≤0.200.18Surface Roughness Ra,μmSurface of friction cylinder touch brake lining≤3.2<3.2Position cylinder surface,set wheel hub≤3.2<3.2Innner and out of drum disc connect place≤6.3<3.2
2. Introduction :






3. Company Information :

Qingdao Pujie Industry Co., Ltd. is a worldwide leader, specializing in disc brake pads and shoes,brake discs and drums for all makes and models of passenger and commercial vehicles. PUJIE continuously strives for high level of customer satisfaction, by maintaining high quality raw material, advance production technology and fast delivery.
  PUJIE products are manufactured under ISO/TS 16949 & ISO 9001 certifications to ensure the highest level of quality.

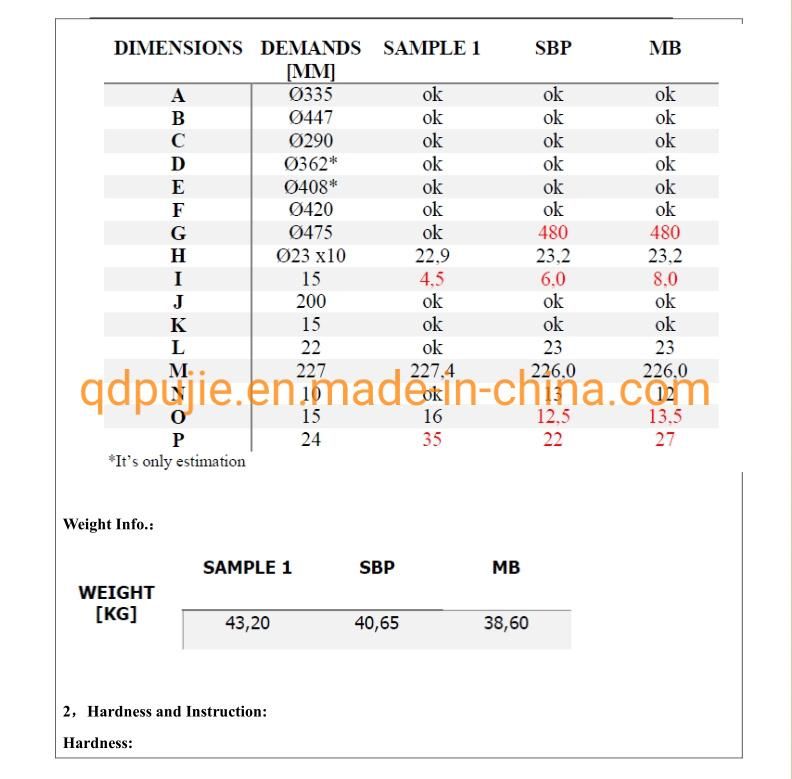

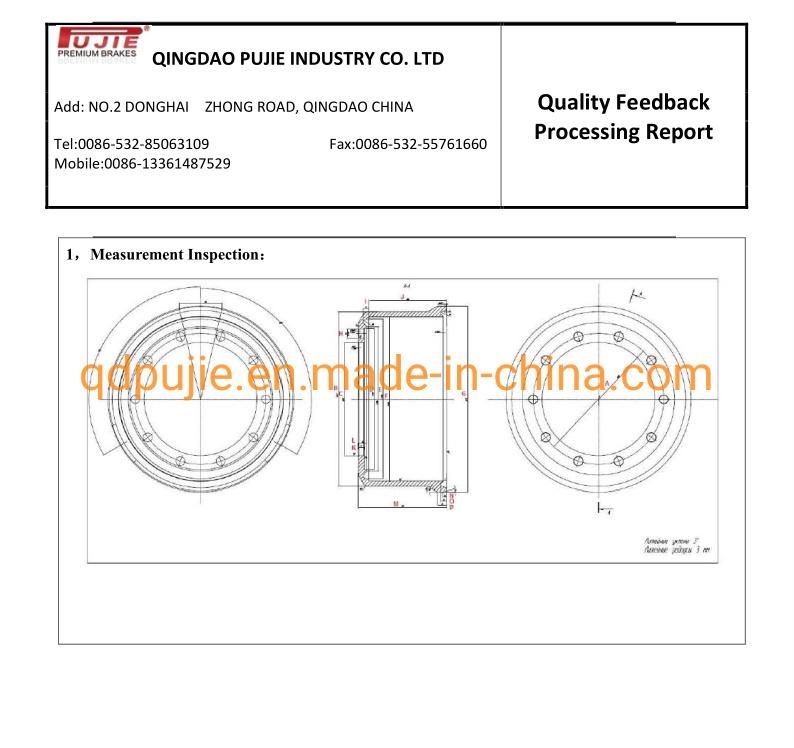

4.Test report :
