• Model NO.：GL 8
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Colour：Bule,Grey,Orange
• Safe Door：1 Piece in The Side Wall, with Pressure Lock
• Panel Color：White
• Keep Warm Material：Rock Wool, EPS as Optional
• Manufacture：Guangli
• Transport Package：20 Gp Can Hold 1 PCS
• Specification：Internal Size 6.9 x 3.9 x 2.7(m)
• Trademark：GuangLi
• Origin：China
• HS Code：8419899090
• Production Capacity：2000

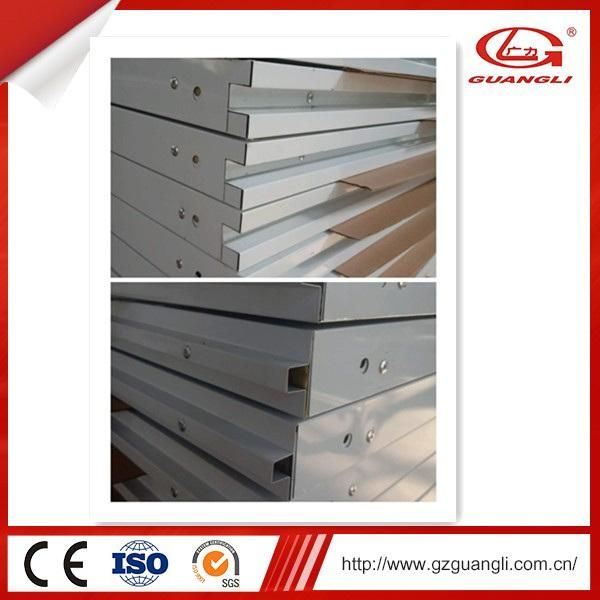

Model NO.GL8 ( CE standard)External Size8.7*5.63*4.23(m)Internal Size8.6*4.0*3.4(m)Wall panel colour Whitewall panel keep warm materialRock Wool, thickness:50mmWall panel colour steelThickness:0.426mm with metal edge cover
Door :Enter size3*3.35(m)Structure3 folded sheet metal process without framecolourorange, or blue or greyFront horizontal panel and front vertical panelsWhiteMaterial Rock woolSafe doorWhite; 2000*800(mm), 1 piece in the side wall, with pressure lock
with one pc of ramp for safe door and with LED exit light

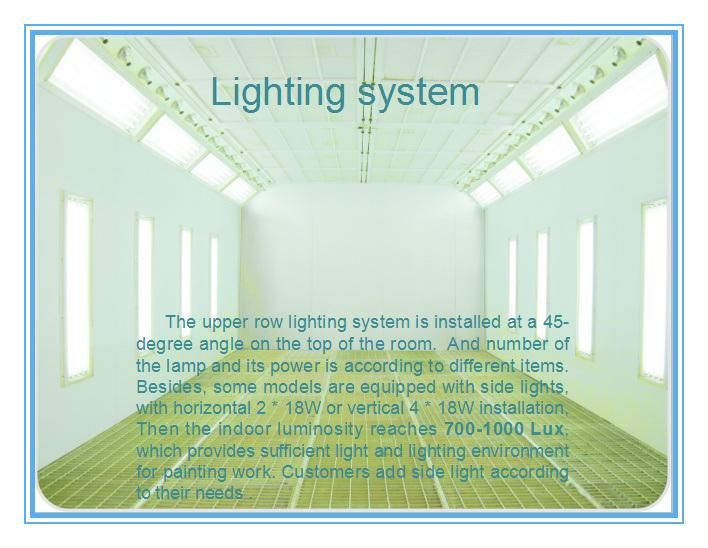

Light system:Top light(2) sides*(6) sets* (4) pcs, LED 18W/piece
-With tempering glass cover
-With aviation connetor
-with full frame for light box for ensruring the sealSide lightNO
Generator:ColorWhiteBurnerItaly Riello diesel burner G20SIntake Fan1 set of 11 kw with M style pre-filter With explosion-proof impellerExhaust Fan1 set of 11 kw with explosion-proof impellerFan capacity(35000)M³/hDuct&Chimney ductWith 5m exhaust duct and Without intake duct

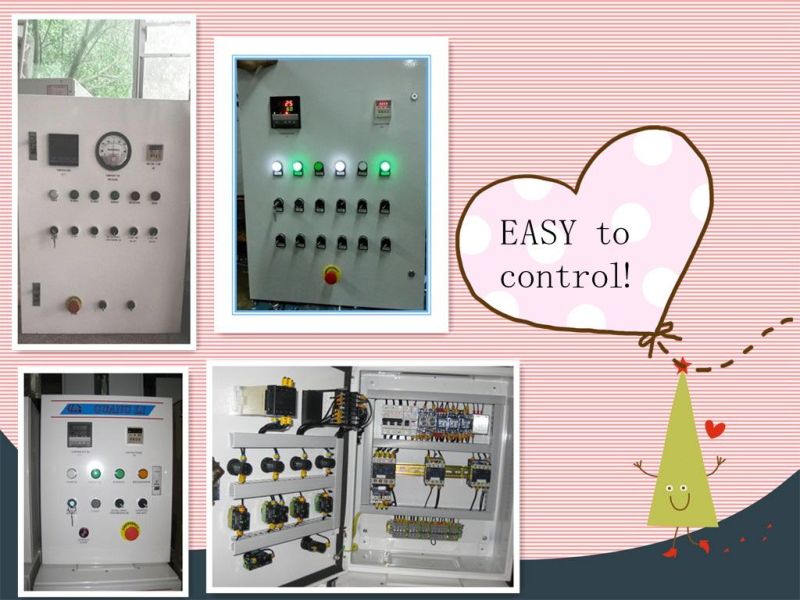

5m straight chimney and 2 small bends.Motor Voltage380V/50HZ/3PH(other voltage contact me)Control boxImport components;Motor Y/three trangle start; With 1 pcs pressure meter
All components should be CE standard, and the control box voltage should be as 24 V.
Basement:Floor3 rows of veins plates, 2 rows of gridsFloor filter2 rows/setRamps2 pcs of grid style ramps
Filter Frame:Top filter 5 pcs/setStructureHinge installed iron welded, powdered



Total Power: 13 KW

Optional wall panel-- stronger
