• Model NO.：SJG
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：Moral
• Design：Scissor
• Load Capacity：5000kg
• Platform Size：5500*2500mm or Customized
• Lifting Height：2500mm or Customized
• Height：560mm
• Speed：5--6m,Min
• Power：7.5kw
• Working Condition：Inddor or Outdoor
• Driving Mechanism：Hydraulic
• Materials：Mn Steel
• Warranty：12 Months
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：MORAL,OEM
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：200units,Year

Basic Info.

Model NO. SJG Shearing Lift Type Big Shear Type Condition New Brand Moral Design Scissor Load Capacity 5000kg Platform Size 5500*2500mm or Customized Lifting Height 2500mm or Customized Height 560mm Speed 5--6m/Min Power 7.5kw Working Condition Inddor or Outdoor Driving Mechanism Hydraulic Materials Mn Steel Warranty 12 Months Transport Package Standard Export Packing Specification CE Trademark MORAL/OEM Origin Shandong, China HS Code 842890 Production Capacity 200units/Year

Product Description

Underground Double Park Scissor Car Lift

Main Parameters:
Load capacity: 5000kg
Platform size: 5.5*2.5m
Lifting height: 2500mm
Hydraulic drive system


Technical Data:
 1. Power supply 220 VAC, 3 Phases 60 Hz/ local power
 2. Size of platform 5500 X 2500 mms. Diamond steel sheet metal
 3. Stops with limit switch control system
 4. Hydraulic driven, steady working

Main descriptions:

1) Scissor hydraulic car parking system can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The limit switch system helps the lift to stop at accurate position.

3)The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car.

4) Emergency button is available on each control box, when emergency occurs, the immediate STOP can be realized.

5) Control system adopt elevator control system, very convenient and safety.

6) Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design a suitable lift for you soon.

Parameters:


Model	SJG5-2.5
Lifting capacity	5000kg
Lifting height	2500mm
Size of platform	5500 X 2500 mms. ( Diamond steel sheet metal )
Motor power	7.5kw
Power supply	AC 220V/380V  50HZ/60HZ
Speed	5-6m/min
Weight	2950KG

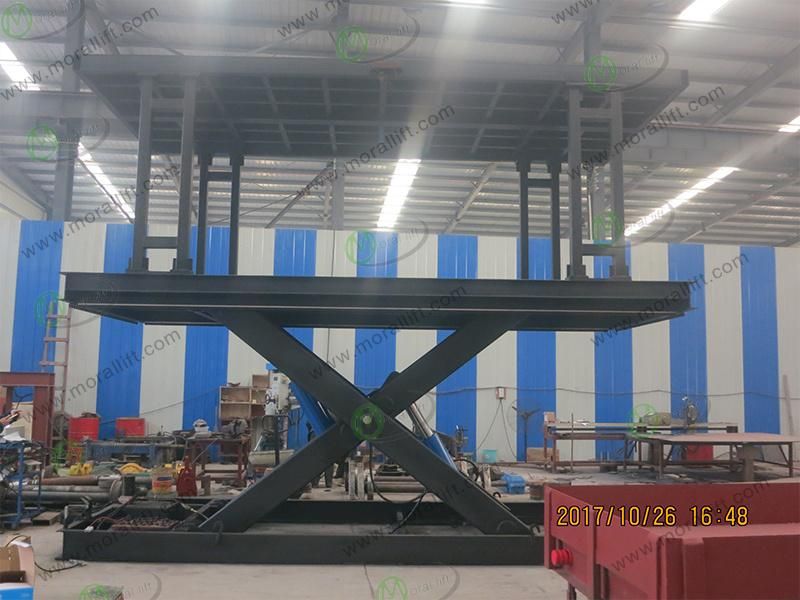

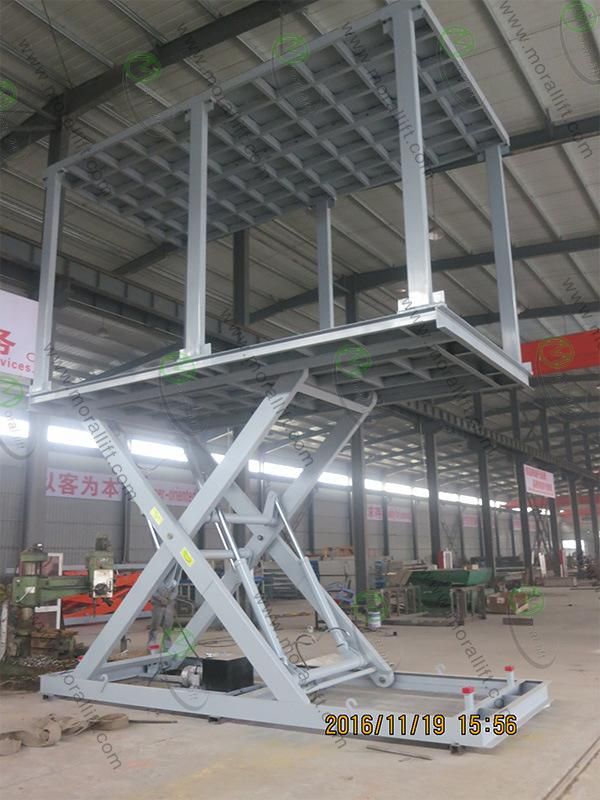

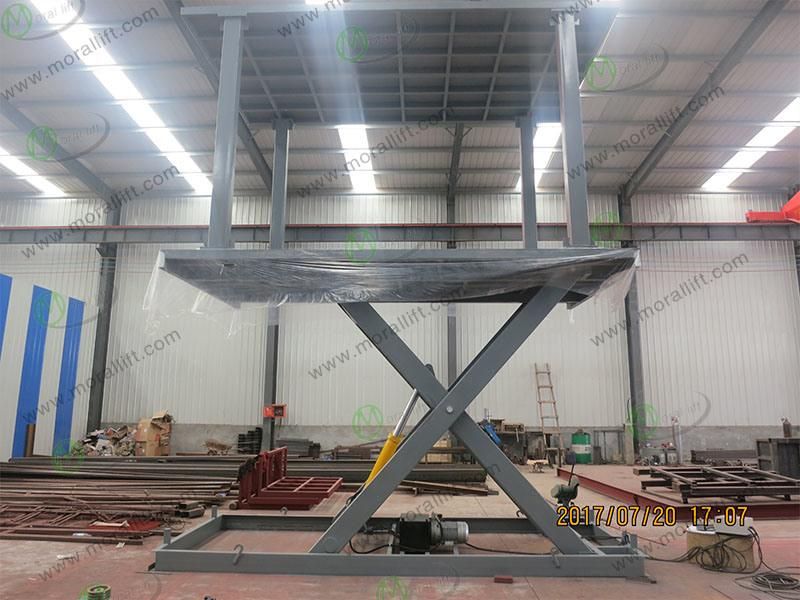

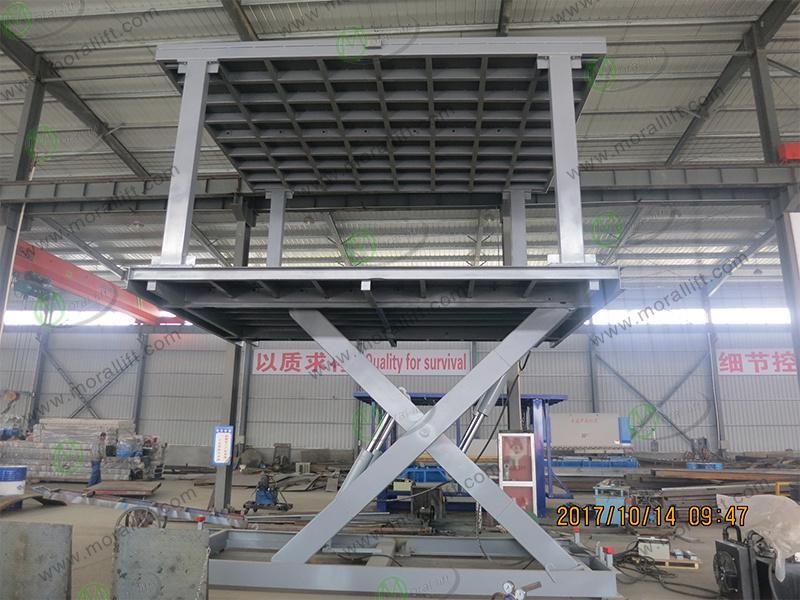

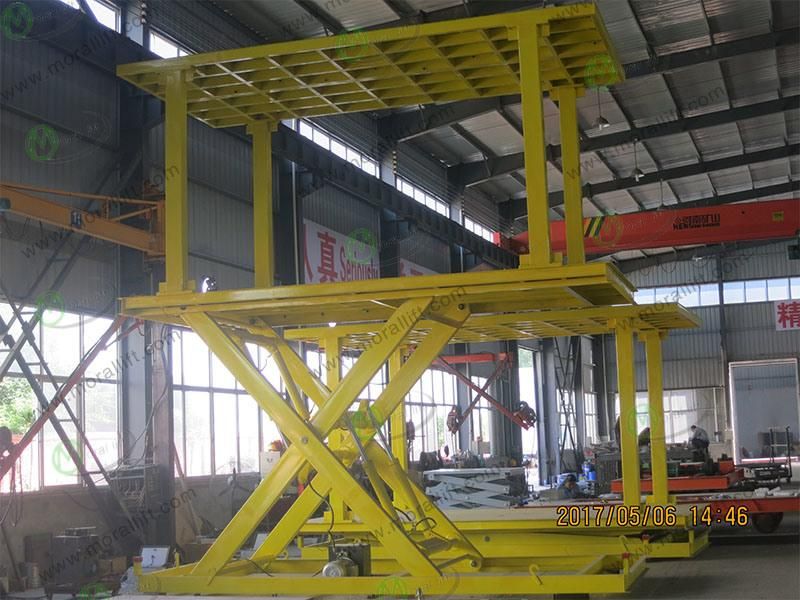

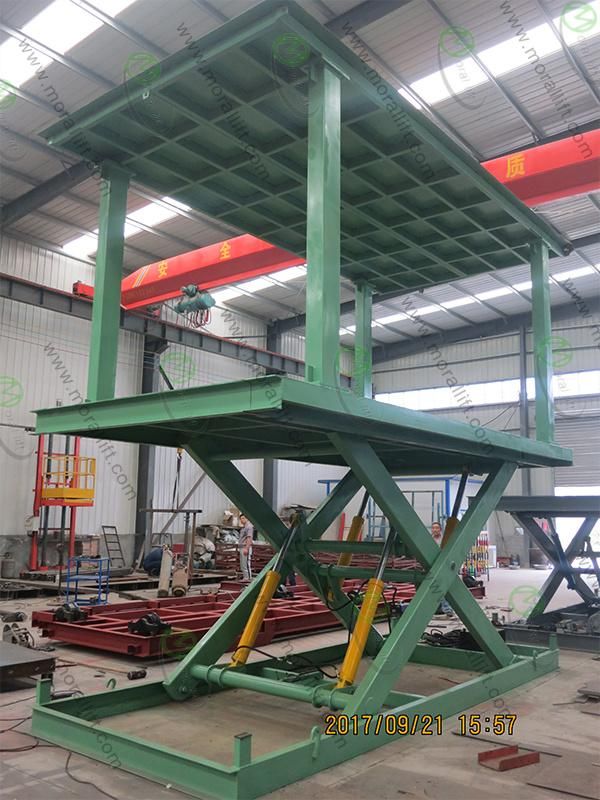

Pictures:
