• Model NO.：1369
• Main Market：South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market
• Transport Package：CTN, Pallet
• Specification：1,4, 3,8, 1,2, 5,8, 3,4
• Trademark：OEM
• Origin：Zhejiang Ningbo
• HS Code：7412209000
• Production Capacity：3, 000, 000 Pieces,Year

Basic Info.

Model NO. 1369 Main Market South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market Transport Package CTN, Pallet Specification 1/4, 3/8, 1/2, 5/8, 3/4 Trademark OEM Origin Zhejiang Ningbo HS Code 7412209000 Production Capacity 3, 000, 000 Pieces/Year

Product Description

DOT AIR BRAKE COMPRESSION MALE ELBOW

Air Brake Compression Fittings For Copper Tubing - Male Elbow 1369
Typical Application: Copper tubing in air brake systems
Pressure: Maximum operating pressure of 150 psi.
Vibration: Fair resistance.
Temperature Range: -65°F to +250°F (-53°C to +121°C) with copper tubing.
Material: CA360 Brass.
May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
Conformance: Meets specifications and standards of SAE and DOT.



DOT AIR BRAKE COMPRESSION MALE ELBOW DETAILS

Typical Application:
Air brake systems

Conformance:
Meets specifications and standards of SAE and SAE (FMVSS571 106)

Reference Part No:
69AB  -  1369  -  269A  -  S269AB

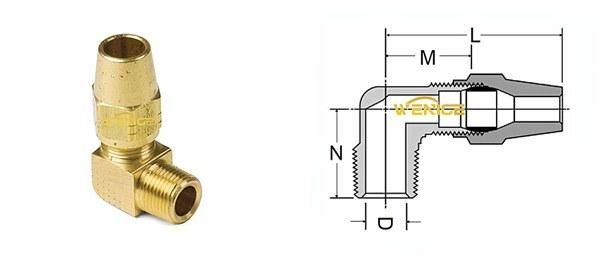

PART#	TUBE x NPTF	M	N	D
1369-4A	1/4 x 1/8	.62	.66	.219
1369-4B	1/4 x 1/4	.68	.87	.312
1369-4C	1/4 x 3/8	.73	.86	.438
1369-6A	3/8 x 1/8	.73	.75	.562
1369-6B	3/8 x 1/4	.79	.92	.312
1369-6C	3/8 x 3/8	.84	.91	.438
1369-6D	3/8 x 1/2	.94	1.10	.562
1369-8B	1/2 x 1/4	.86	.99	.312
1369-8C	1/2 x 3/8	.93	.99	.438
1369-8D	1/2 x 1/2	1.03	1.18	.562
1369-10C	5/8 x 3/8	1.00	1.05	.438
1369-10D	5/8 x 1/2	1.09	1.24	.562
1369-12D	3/4 x 1/2	1.19	1.32	.562
1369-12E	3/4 x 3/4	1.26	1.32	.760
