China Professional Factory Ce Approved European Design Car Spray Paint Oven Baking Booth
GZ GUANGLI EFE CO., LTD.- Type:Spray Booth
- Certification:CCC, CE, CSA, GS
- Substrate:Steel
- Brand:Guangli
- Coating:Powder Coating
- Airflow Direction:Fully Undershot-type
Base Info
- Model NO.:GL4-CE
- Heating Mode:Diesel
- Paint Mist Treatment:Dry-type
- Condition:New
- Door Width(M):3.0
- Door Height(M):2.66
- Air Flow(M3/H):24000
- Lighting System:Upper Light and Side Light
- Filters:High Efficiency Filter
- Color:Red Blue Orange White
- Usage:Car Painting Baking
- Vehical Suited:Saloon Car
- Warranty:Yes
- Heating System:Riello Brand Diesel Burner
- Transport Package:Iron Frame Packing and Carton Packing
- Specification:20GP
- Trademark:GUANGLI
- Origin:Guangzhou, China
- HS Code:8419899090
- Production Capacity:10, 000 PCS,Year
Description
Basic Info.
Model NO. GL4-CE Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow(M3/H) 24000 Lighting System Upper Light and Side Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Warranty Yes Heating System Riello Brand Diesel Burner Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 8419899090 Production Capacity 10, 000 PCS/YearProduct Description

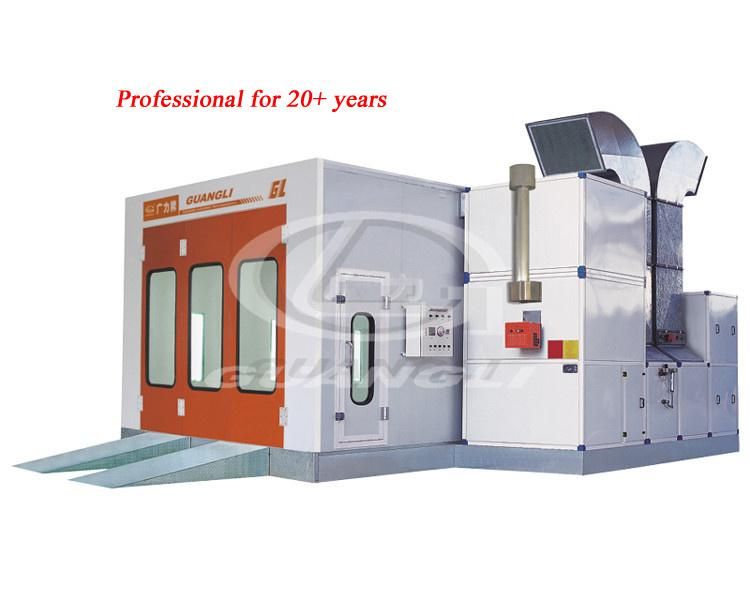

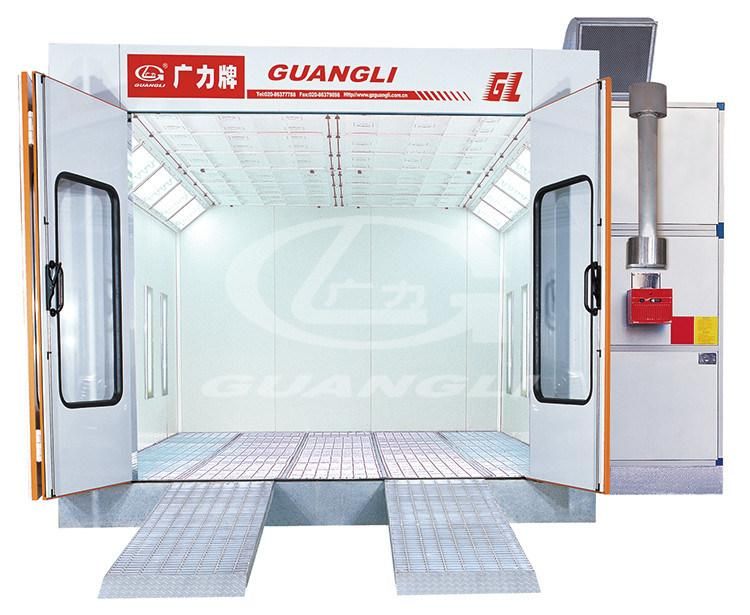

China Professional Factory CE Approved European Design Car Spray Paint Oven Baking BoothGuangli Spray Booth Feature--Wall panel :sandwich style,δ=50mm,rock wool.(polystyrene is optional)
--Basement:steel structure,full grids.
--Ramp:2pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pc of emergency door with pressure lock.
--One 7.5kw intake fan and one 7.5kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--1 manual VCD exhaust damper,electrical VCD as optional.One pressure meter.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello G20 Burner.
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5pcs of floor filter and 2pcs of air mouth filter.
--Upper light:10sets,4*40w per set.side lights:8sets,4*40w.
--Control box:imported components,overload,overheat,phase-lacking,phase-locking protection,engine Y/△ start.
--Automatically stop when preset time is up.
--Constant temperature spraying.
--Environmental filter:the equipment can be adopted M style activated carbon or drawer style activated carbon as optional.
Model | GL4-CE |
External size (m)(LxWxH) | 7.0x5.3x3.5 |
Internal size (m)(LxWxH) | 6.9x3.9x2.7 |
Entrance width(m) | 3.0 |
Entrance height(m) | 2.66 |
Fan capacity( m 3 /h ) | 24000 |
Air velocity (m/s) | 0.3-0.35 |
Max Drying Temperature | 60-80 |
Oil consumption (L/unit) | 6-8 |
Power (kw) | 18 |
Customization | Available |
Water-based Paint Device | As option |
Suitable Automobile Type | Saloon Car |

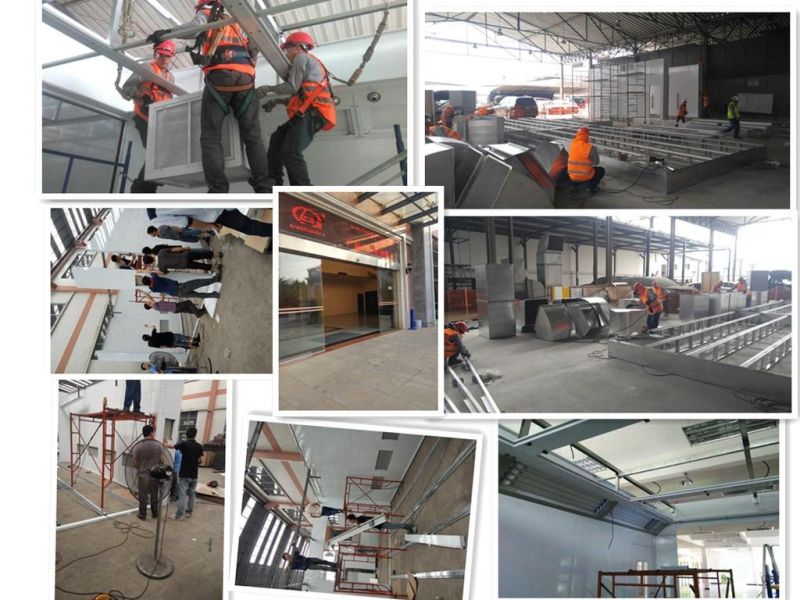

Real Cases
Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Good pre-sales and after-sales service.
FAQ
1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to
visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.
Company Profile
GZ GUANGLI EFE CO.,LTD is a professional spray booth and car lift manufacturer in China wtih more than 22 years technical and production experience.

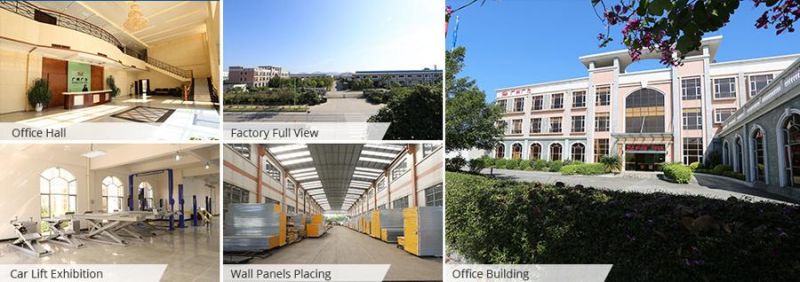

Founded in 1994, Guangli has our own enterprise headquarters,which covers 58,000M2of grounding area and 36,000M2of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.

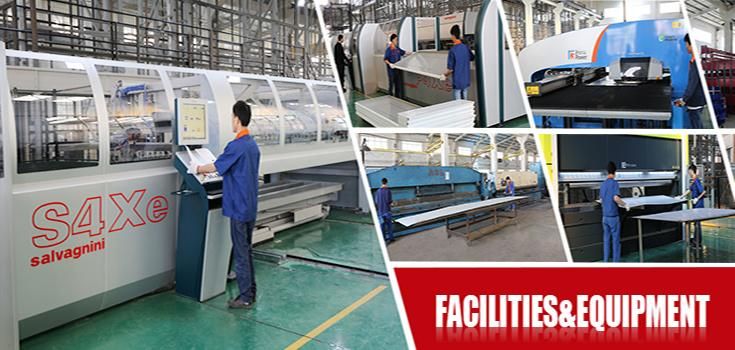

We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

Don't hesitate to Contact Please:
Sunnie Di
Tel:+86-20-86378972
Mobile :+86 13925061383
Website:gzguangli.en.made-in-china.com
