Factory Wholesale Bulk Price Downdraft Paint Booth for Sale

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.
  • Warranty：2 Years
  • Type：Spray Booth
  • Certification：CE
  • Substrate：Steel
  • Brand：Infitech
  • Coating：Powder Coating

Base Info

  • Model NO.：Customized
  • Airflow Direction：Rear Semi Downdraft
  • Heating Mode：Diesel
  • Paint Mist Treatment：Dry-type
  • Condition：New
  • Air Volume：18, 000m3,H
  • Empty Loaded Air Speed：+,- 0.45m,S
  • Motor：5.5kw, Siemens Motor
  • Brightness：>1000lux
  • Transport Package：Polyfoam and Metal Frame
  • Specification：8000 X 4000 X 2800MM(L X W X H)
  • Trademark：INFITECH
  • Origin：China
  • HS Code：8419899090
  • Production Capacity：300 Sets Per Year

Description

Drying RoomSTANDARD DESIGNAS/NZS 4114.1:2003BOOTH DIMENSIONS Internal dimensions8050 X 9000 X 2800mm (L X W X H)External dimensions8110 X 9000 X 3460mm (L X W X H)WALL PANEL Wall panel50mm dual-skin insulated panels filled with heat resistant rock woolTop material50mm dual-skin insulated panels filled with heat resistant rock woolEdge material1.2mm galvanized plate bending formingPLATE ROLL UP DOOR Door size4000 x 2800mm(BxH)Quantity2 setsDoor description
  • Sanding RoomSTANDARD DESIGNAS/NZS 4114.1:2003BOOTH DIMENSIONS Internal dimensions4290 X 7000 X 2800mm (L X W X H)External dimensions5000 X 7100 X 3460mm (L X W X H)FOUNDATION AND FLOOR FoundationWithout metal foundation, with air extraction plenum chambers installed at rear wall of the cabinFiltration area3.5 m²WALL PANEL Wall panel50mm dual-skin insulated panels filled with heat resistant rock woolTop material50mm dual-skin insulated panels filled with heat resistant rock woolEdge material1.2mm galvanized plate bending formingELECTRIC CURTAIN DOOR FormElectric driveSize5800 X 2650 mm (W X H)Quantity1 setDoor description-Three sessions, the middle part is transparent, the upper and bottom part is gray, rising speed is 0.2m /s; Can be controlled internally and externally;
    - Anti-flaming cloth, tidy, compressed, good sealing effectCEILING LIGHTING(Accessible from outside the booth)Quantity and power9 sets of light fixtures, each 4 X18W, total 648WLighting arrangementDistributed evenly at the ceilingLighting descriptionProtection grade IP55, CE certifiedBrightness>800LuxFILTRATION SYSTEM Bottom filter & exhaust filterPleated andreae filter + Fibreglass paint arrestor filterVENTILATION SYSTEM Direct drive motor (Exhaust Air)2 X 1.5KW, 1450RPM, 380V, 50HZ, SIEMENSParameters of exhaust fan10,000m³/hELECTRIC CONTROL CABINET- Fan start, emergency stop switch, failure indication;
    - Lighting switch;
    - 1x380V16A explosion-proof power supply; 2x 220V explosion-proof power supply;
    - 2 compressed air connectors, configure the gauge, regulator valve;
    - TOOL CABINET, easy job material storage, sorting, provide efficiency;SPECIAL ITEMRated power:3KW

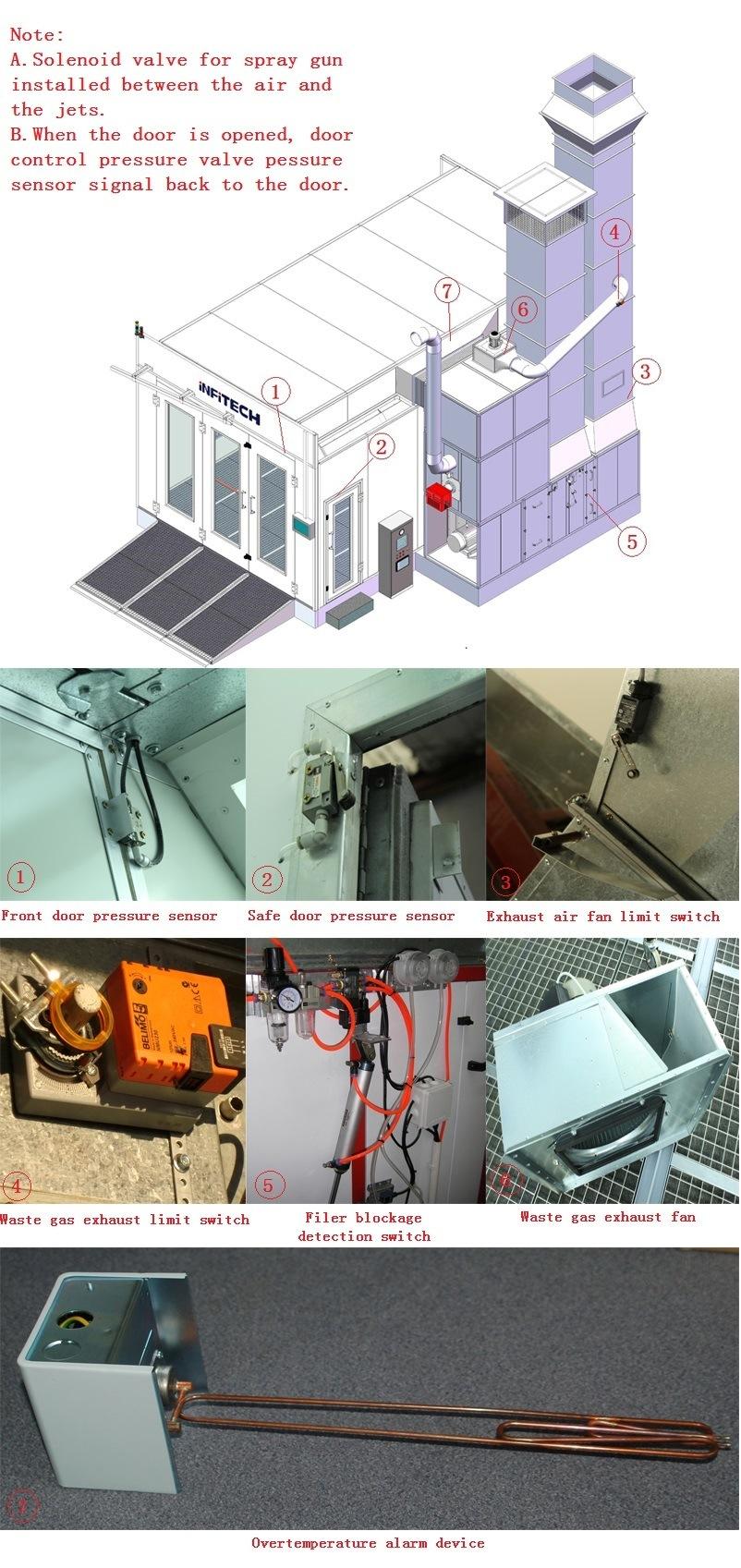

    Safety device
    Factory Wholesale Bulk Price Downdraft Paint Booth for Sale
    Factory photos
    Factory Wholesale Bulk Price Downdraft Paint Booth for Sale

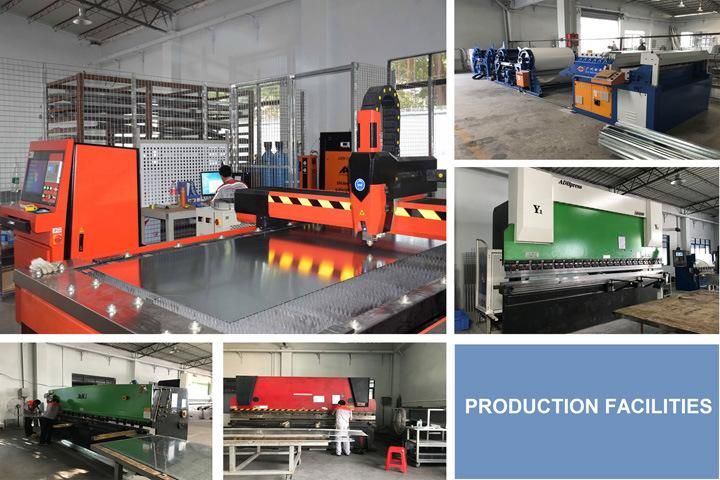

    Production equipment
    Factory Wholesale Bulk Price Downdraft Paint Booth for Sale

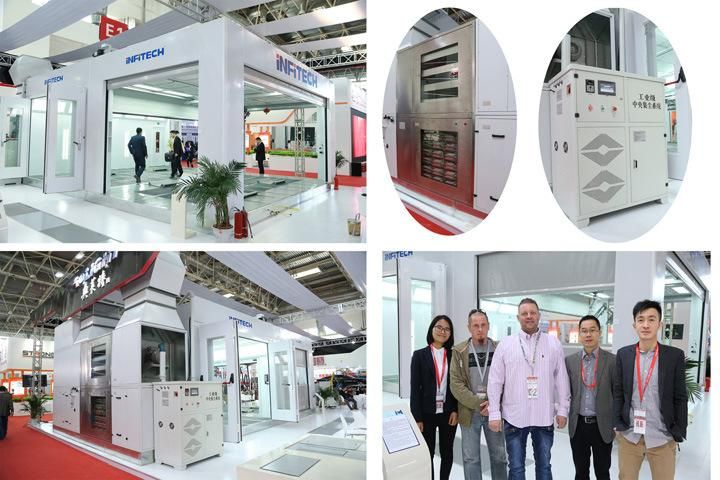

    Exhibition
    Factory Wholesale Bulk Price Downdraft Paint Booth for Sale

    Please do not hesitate to send your inquiries. :-)
    Contact: Lillian Feng
