• Model NO.：GL Series
• Heating Mode：Electric
• Paint Mist Treatment：Dry-type
• Condition：New
• Colour：Bule,Grey,Orange
• Safe Door：One Front Door as Safe Door.
• Panel Color：White
• Keep Warm Material：EPS, Rock Wool as Optional
• Inside on-Load Air Speed (M/S)：0.25-0.3
• Manufacture：Guangli Factory
• Transport Package：20 Gp Can Hold 2 PCS
• Specification：8.1 x 4.0 x 3.2(m)
• Trademark：GuangLi
• Origin：China
• HS Code：8419899090
• Production Capacity：2000

Model NO.GL1 (CE standard)External Size8.1*4.0*3.2Internal Size6.9*3.9*2.7wall panel's colourwhitewall panel keep warm materialRock Wool, Thickness:50mmColor steelthickness:0.326, with metal edge coversafe door1 fold of front door as safe doorsafe door signwith one pc of ramp for safety door and with LED exit light

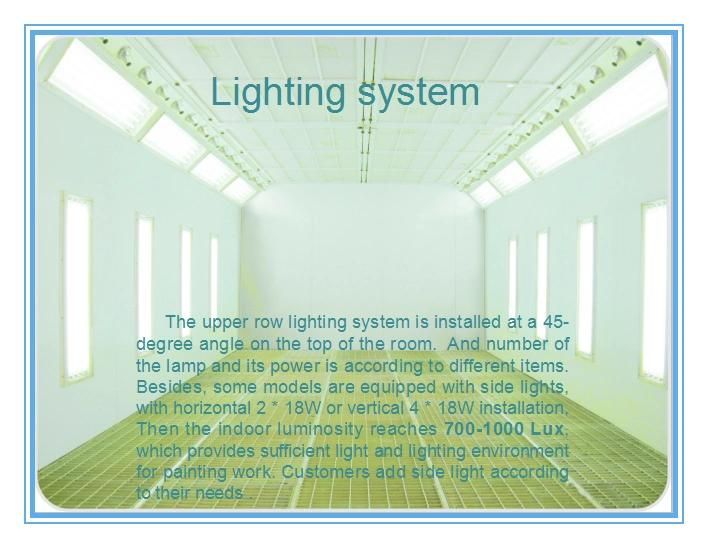

Light System:Top light(2) sides*(4)sets*(4) pcs,                 LED 18 W/piece
& With tempering glass cover
&With aviation connector
&With full frame for light box for ensuring the sealside lightNO

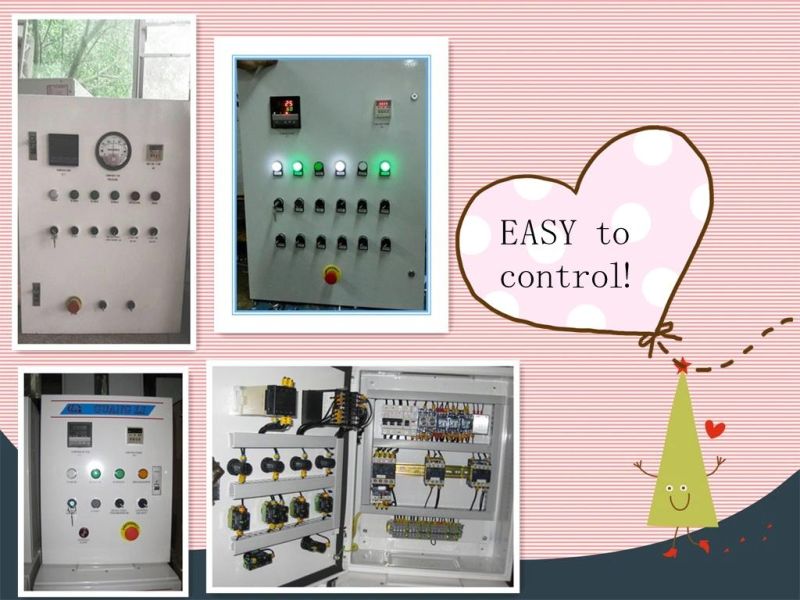

GeneratorIntake FanNO, air entering from the roof directlyExhaust fanat back, 1set  of 5.5 kw, with explosion-proof impellerFan capacity18000 m³/hExhaust DuctWith 3 m straight duct, 1 pcs 90⁰ bend, 1 pcs 60⁰ bendMotor Voltage380V/50Hz/3PH ( other voltage for option. contact me)Control BoxChinese components, Motor direct start; With 1 pcs pressure meter
All components should be CE standard. and control box voltage should be as 24 V. CeilingCover with 50mm EPS panel, enter with filer at the front of the ceilingBasementConcrete basement, made by userTop filter2 pcs/ setExhaust at backExhaust at the down side of the back wall, with the filter
Total Power: 7kW

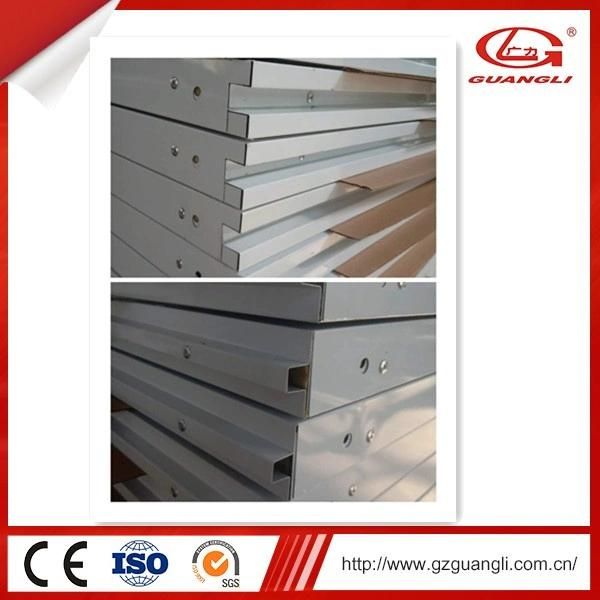

Optioal wall panel-- more stronger
