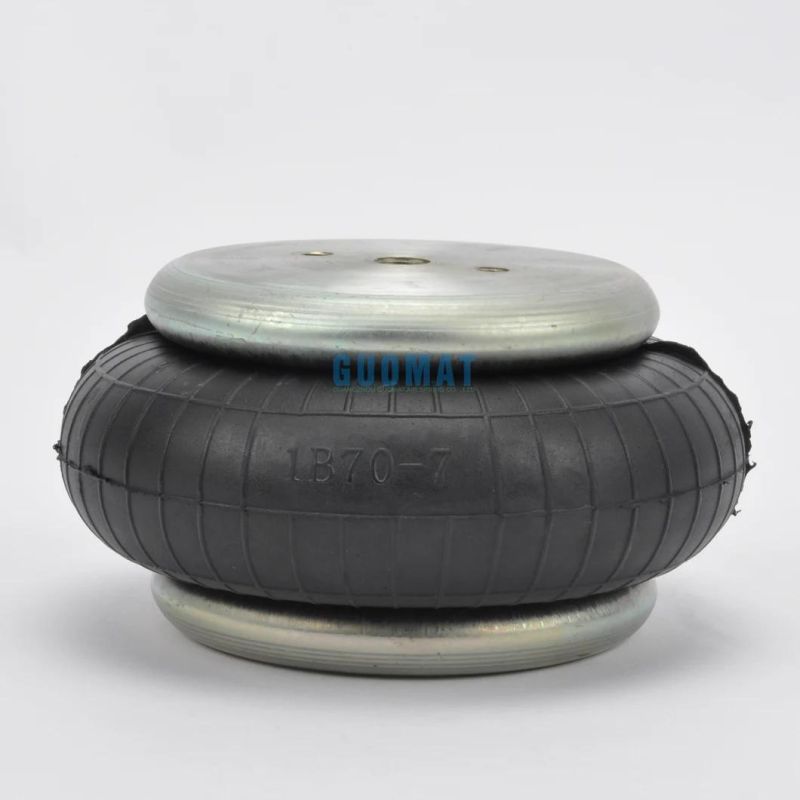

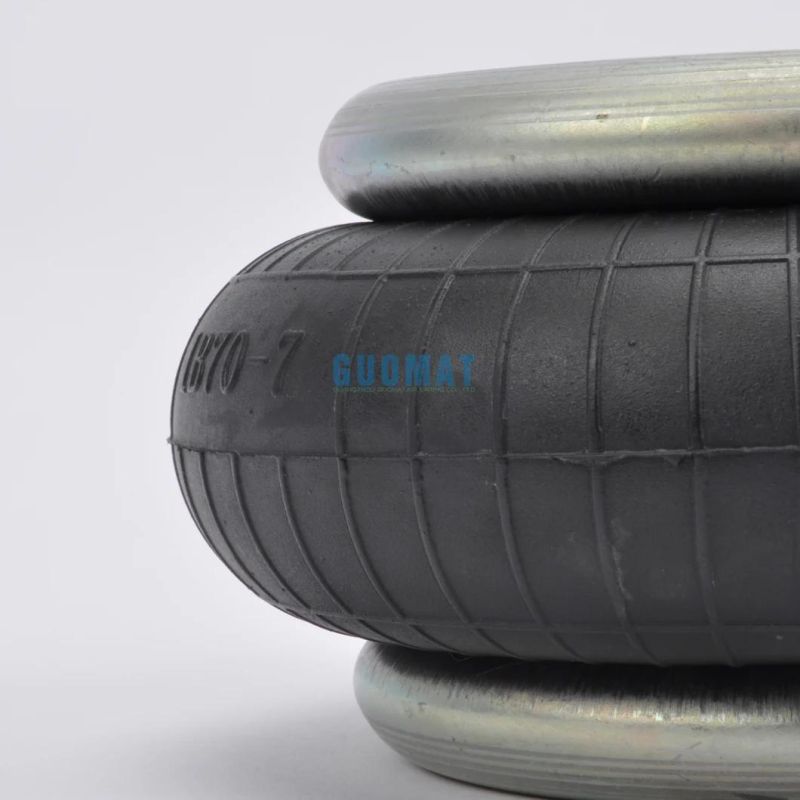

• Model NO.：1B7070
• Structure：Single Cylinder
• Car Make：All
• Brand：Guomat or Neutral
• Damping Force Direction：Bidirectional
• N.W.：1.3 Kg
• Pressure Ability：0.2-0.8 M PA
• Plate Diameter：115 mm
• Air Inlet：G1,4

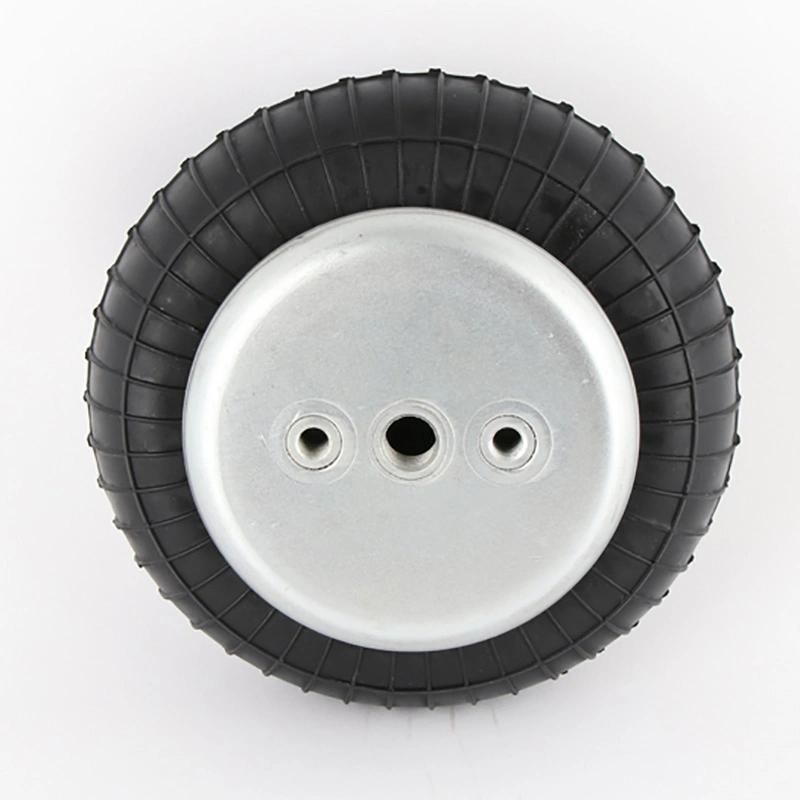

• Top Plate Hole/Stud：M8
• Bottom Plate Hole/Stud：M8
• Top Plate Dia：105 mm
• Bottom Plate Dia：105 mm
• Transport Package：Cartons
• Specification：24*24*22 cm
• Trademark：Neutral
• Origin：China
• HS Code：8708809000
• Production Capacity：5000PCS,Month

References NumbersPhoenix : SP 1 B 05Bos ch air spring : 822419002Fes to air spring : EB-165-65Weforma : WBE 200-E1Contitech : FS 70-7





1B70-7 Vibration isolation - dynamic characteristic valuesDesign height H: recommended 90mm, minimum 70mmPressure p [bar]345678Vol V [l]Force (Load) [KN]2.73.74.75.76.67.79Spring rate [N/cm]1040127015301770206023259Natural frequency [Hz]3.12.92.92.82.82.79





1B70-7 Pneumatic application - static characteristic valuesForce F [kN]Pressure p [bar]345678Vol.[l]Height H [mm] 1002.23.144.85.76.61902.73.64.65.66.57.50.9803.14.15.16.27.38.30.8703.44.55.66.77.990.7603.64.867.28.49.50.6





How to improve the wear resistance of air spring rubber airbags?


Today, the gap between domestic air springs and imported air springs is getting smaller and smaller. Proper use and attention to maintenance are ways to extend the life of air springs. Maintenance serves to extend the life of the air spring. It must be based on the superior quality of the air spring rubber bladder itself. In the production process, what methods can improve the wear resistance of air spring rubber airbags? In addition to the most basic work in the vulcanization process, you need to pay attention to the following points:
1. The smaller the particle size of the general filler, the lower the dispersibility, surface activity and structural structure, and the worse the wear resistance. The optimum amount is BR90-100 parts, the oil-filled SBR is 60-70 parts, and the SBR and IR are 50-. 55 parts, NR is 45-50 parts.
