• Model NO.：IT CLASSIC 6900A
• Condition：New
• Product Name：Infitech Preparation Station It Classic 6900A
• Key Word：Auto Preparation Station
• Illunmination：>700 Lux
• Ceiling Lights：LED Lamp
• Exhaust Fan：5.5kw, Direct-Type Big Impeller Turbine Fan
• Plenum Height：400 mm
• Rated Power：6.5 Kw
• Warranty：2 Years
• Transport Package：Polyfoam and Metal Frame
• Specification：6900 X 4000 X 2800 mm
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. IT CLASSIC 6900A Condition New Product Name Infitech Preparation Station It Classic 6900A Key Word Auto Preparation Station Illunmination >700 Lux Ceiling Lights LED Lamp Exhaust Fan 5.5kw, Direct-Type Big Impeller Turbine Fan Plenum Height 400 mm Rated Power 6.5 Kw Warranty 2 Years Transport Package Polyfoam and Metal Frame Specification 6900 X 4000 X 2800 mm Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 500 Sets/Year

Product Description

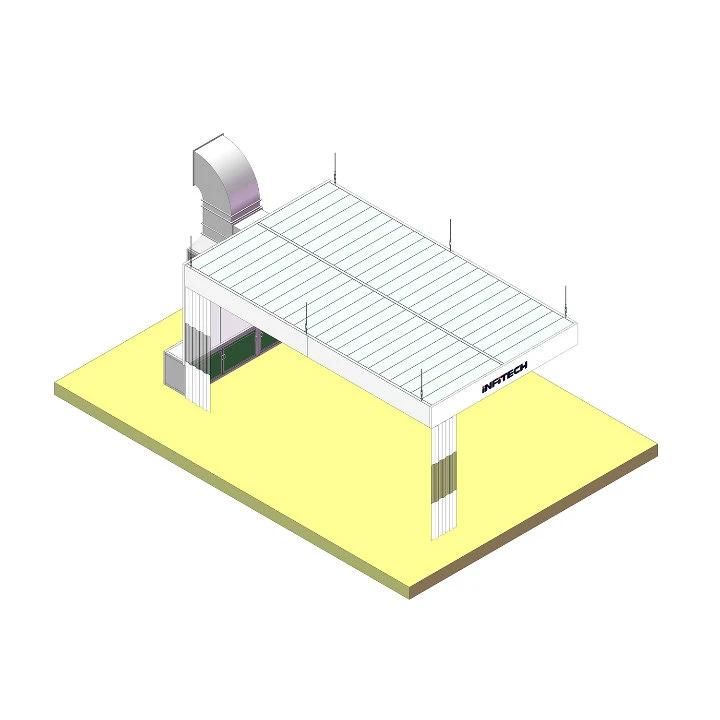

INFITECH CAR/AUTO PREPARATION STATION IT CLASSIC 6900A



Basic information


DESIGN STNDARD	BS EN 13355:2004+A1:2009 BS EN 60204:2006+A1:2009

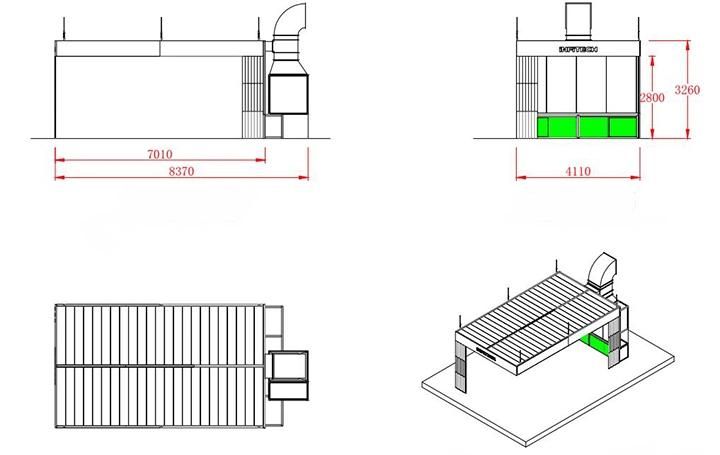

Internal Dimensions	6900 X 4000 X 2800 mm(L x W x H)
External Dimensions	8370 X 4110 X 3260 mm(L x W x H)
CABIN
Back wall panel	50mm dual-skin insulated panels filled with heat resistant rock wool
Top panel	Galvanized steel plate bending forming
PVC SOFT CURTAIN
Soft curtain	PVC curtain(Grey, blue, red, yellow)
Arrangement and quantity	1 set in the front, 2 sets on both sides; transparent in the middle, white at both ends
CEILING LIGHTS	LED lamp,On both sides
Quantity and power	8 sets of lighting fixtures, 4x18W, total 576W
FILTRATION SYSTEM
Pre-filter	Fiberglass filter, G2 grade
Ceiling filter	F5 class filter, SP-600G
Floor filter	Fiberglass paint arrestor filter, G2 grade
EXHAUST SYSTEM
Exhaust fan	Direct-type big impeller turbine fan
Exhaust fan power and motor descriptions	1×5.5KW, 970RPM, 380V, 50HZ, CE approved
Parameters of exhaust fan	18,000m3/h, 650pa
DUCTWORK	Straight ducting:4pcs , 90° elbow:1 pc ; Reducer:1 pc; Three-link:1pc;Electric damper:1 pc,the exhaust air volume can be adjusted through the damper
CONTROL SYSTEM	Fan start, lighting, emergency stop switch, failure indication

Company Introduction

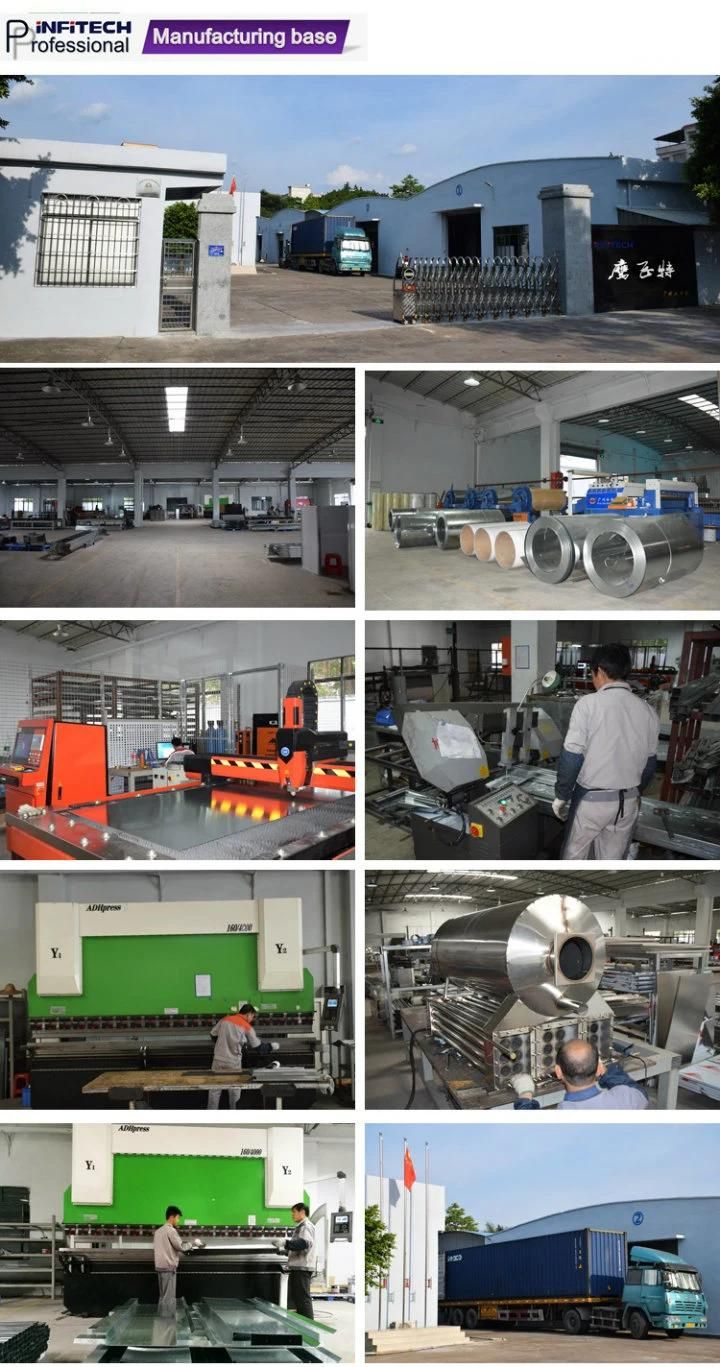

Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
