• Model NO.：1402272
• Main Market：Northern Europe
• Bendix：145328
• Height：49.3mm
• PCD：114.3mm
• No. of Holes：5
• Outer Diameter：275 mm
• Brake Discs Thickness：25mm
• Brake Discs Type：Vented
• Fitting Position：Front
• Bore Hole Daimeter：72mm
• Min . Thickness：23mm
• Transport Package：Neutral Packing or at Buyer′s Request
• Specification：CE, SGS, ISO, TS16949
• Trademark：Pujie
• Origin：Qingdao, China
• HS Code：870830990
• Production Capacity：300, 000 PCS,Year

Basic Info.

Model NO. 1402272 Main Market Northern Europe Bendix 145328 Height 49.3mm PCD 114.3mm No. of Holes 5 Outer Diameter 275 mm Brake Discs Thickness 25mm Brake Discs Type Vented Fitting Position Front Bore Hole Daimeter 72mm Min . Thickness 23mm Transport Package Neutral Packing or at Buyer′s Request Specification CE, SGS, ISO, TS16949 Trademark Pujie Origin Qingdao, China HS Code 870830990 Production Capacity 300, 000 PCS/Year

Product Description

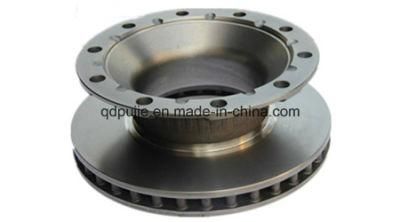

1402272 1386686 1852817 Truck Brake Disc for Scnia 4 Series Truck Parts

1.  Description of brake disc :

  Truck/Trailer/Bus brake disc

  1. Material: Gray iron HT-250, Meet the American Standard G3000

  2. Size: OEM Standard SIZE

  3. Standard: G3000

  4. Certification: ISO9001, TS16949, EAC...

Product Name	Truck/Trailer/Bus brake disc
Material	HT-250
Chemical composite	C:3.0-3.3% Si: :1.6-1.9% Mn:0.7-0.9% P:<12% S<0.12%
Hardness	180-240HB
Mechanical Property	Tensile Strength of test bar: σb≥210 Mpa,Tensile Strength of body: σb≥200 Mpa
Characteristic	Low noise, no dust,long service life,good cooling
Packing	Plastic Bag+ Neutral Box/Colored Box as per Customers' Design + Pallet
MOQ	100-200 PCS
CAR MODEL	European/American/Japanese/Kerean Trucks,trailers,buses

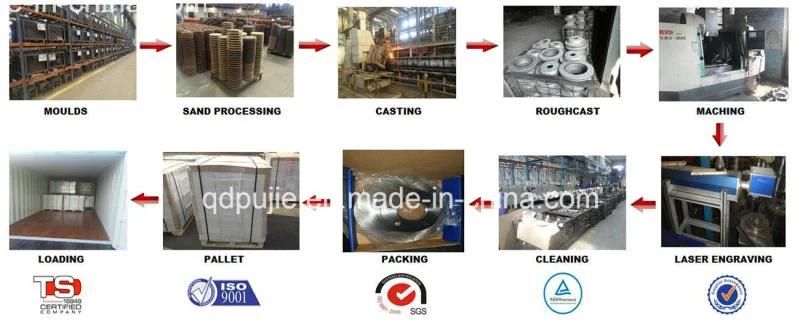

Technological process



2. About us :

Qingdao Pujie Industry Co., Ltd. is a worldwide leader, specializing in disc brake pads and shoes,brake discs and drums for all makes and models of passenger and commercial vehicles. PUJIE continuously strives for high level of customer satisfaction, by maintaining high quality raw material, advance production technology and fast delivery.



   PUJIE products are manufactured under ISO/TS 16949 & ISO 9001 certifications to ensure the highest level of quality.




3. Our Strength  :

1.  Wide range of brake parts :

We can supply you a geart variety of brake parts , such brake shoes, brake rotors , brake discs and so forth . You name the O.E. No. , we can give you what you need for sure .

2. Better price :

This is our customers cares most . And I believe you care the question ,too . What I can assure you is that we can save you 10% of your production line , both domestically or any other circumstance .

3. Top service :

We can cope with all the circumstances that we encounter and can fix the problem immediately . Our team are all have expertise knowledge . With that , I think there is nothing to worry about .




Packing and shipping :


 FAQ:

Q1: Are you a manufacturer or a trading company?
A1: PUJIE  is one of the largest professional manufacturers of brake discs and brake pads in China. Products cover 5,000+ brake disc part numbers, 3000+ brake pads part numbers, 96%+ car park coverage of brake discs and brake pads from A to Z for both passenger cars and commercial vehicles.

Q2: What certifications do you have?
A2: IATF16949, ISO14001, ISO45001, ECE R90, CNAS, etc.

Q3: How about your lead time?
A3: Usually, 6~8 weeks after receiving purchase orders.

Q4: Can you provide the catalogue of your products?
A4: Please contact us for more info. We will reply to you as per different market.

If any further questions , welcome to contact us.  thank you very much.
