• Model NO.：AA-WB3DX1
• Max.Tire Diameter：1000 mm
• Rim Diameter：12"-24"
• Rim Width：1.5"-12"
• Balancing Speed：180 Rpm
• Balancing Precision：+-1 g
• Motor Power：110V , 220V 50 Hz , 60 Hz 0.25KW
• Transport Package：Plywood Case
• Specification：ce
• Trademark：AA4C
• Origin：China
• HS Code：9031100090
• Production Capacity：500PCS,Month

Basic Info.

Model NO. AA-WB3DX1 Max.Tire Diameter 1000 mm Rim Diameter 12"-24" Rim Width 1.5"-12" Balancing Speed 180 Rpm Balancing Precision +-1 g Motor Power 110V / 220V 50 Hz / 60 Hz 0.25KW Transport Package Plywood Case Specification ce Trademark AA4C Origin China HS Code 9031100090 Production Capacity 500PCS/Month

Product Description

AA-WB3DX1 3D wheel balancer

Wheel Balancer design with the luxury appearance,increase and thicken body,with steel supported at the bottom and ensure the stable of the cabinet.


Functions

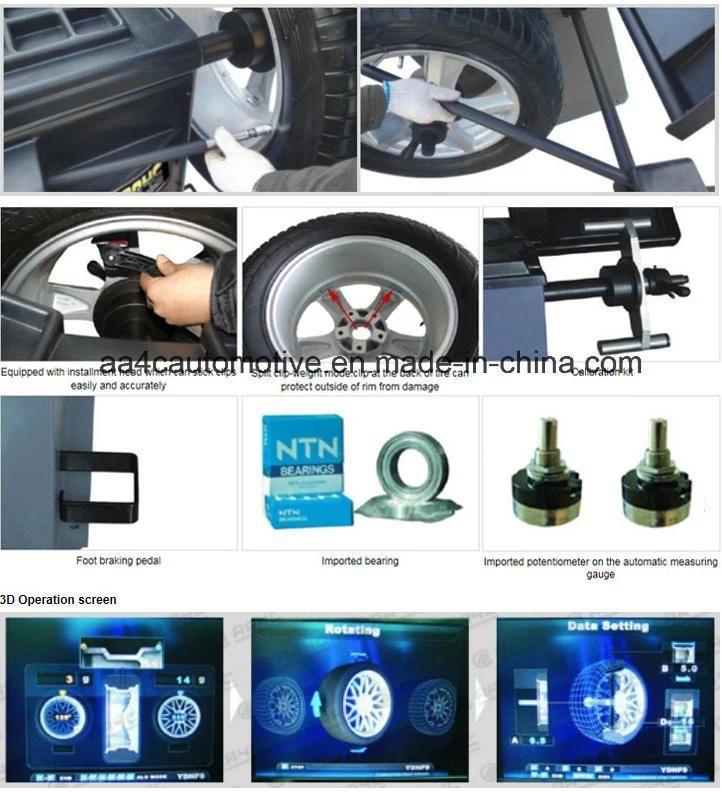

1 Static ,AL1,AL2,AL3 balancing modes and ALU-S mode
2 8''TFT 3D monitor, intelligent chip
3 American potentiometer on the automatic measuring gauge, measuring wheel distance data accurately
4 High-precision machinery spindle and imported bearing ensure the measuring precision
5 Changeable between gram and ounce; changeable between millimeter and inch
6 Perfect wheel guard with the function of starting automatically
7 Design for twice braking makes operation more conveniently
8 Self diagnosis and self calibration
9 Foot braking peda
10 Large flange and cone for balancing tires, such as Transit , lveco (optional)

Model	AA-WB3DX1
Motor	110V / 220V 50 Hz / 60 Hz
Power	0.25 Kw
Rim Width	1.5"-12"
Rim Diameter	12"-24"
Max.Tire Diameter	1000 mm
Balancing Speed	180 Rpm
Balancing Precision	±1 g
