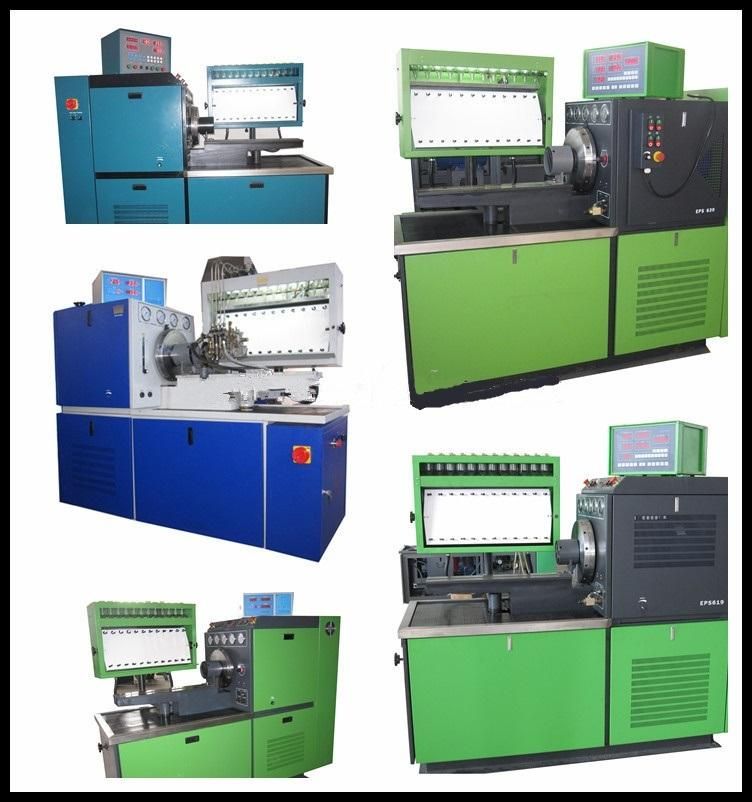

12psdw-EPS615 Diesel Pump Test Bench 15kw

Hubei Fotma Machinery Co., Ltd.
  • Testing Equipment Type：Car Fault Detector
  • Certification：CE, ISO
  • Update Method：by Hard Disk
  • Condition：New
  • Standard：Standard
  • Test Function：Diesel Fuel Injection Pump

Base Info

  • Model NO.：12PSDW-EPS615
  • Testing：Pump Injection Measurance
  • Output Power：7.5kw, 11kw, 15kw, 18.5kw
  • Voltage：380V 220V 415V
  • Power Phase：3-Phase
  • Equipment：EPS615 Diesel Pump Test Bench
  • Transport Package：Plywood Box
  • Specification：ISO9001
  • Trademark：12PSDW
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：5000PCS,Year

Description

Motor power5.5,7.5,11,15,18.5,22,30kwPower supply voltage415,380,220vPower supply frequency50/60 HZProtection levelIP54Speed range0-4000 rpmCounter setting range0-9999Temperature setting range0-80°CCenter height of driving shaft125mmDC power12/24VDiameter of the Driving connector120mmMeasuring tube45ml,150ml,260ml(optional)Number of Measuring cylinder6,8,12Fuel Supply pump10L/minFuel supply pressureHigh pressure:0-40bar;low perssure:0-4barFuel tank cubage60LPressure meterLow pressure:0-6bar;high pressure:0-60bar;inner pressure:0-16bar;Vacuum pressure:-1-2.5bar;Oil meter:0-10barHeat Power2kwTemperature controlled range30-65ºCSize2200*1100*1750mmWeight1100kg


12psdw-EPS615 Diesel Pump Test Bench 15kw
