• Model NO.：E501
• Paint Mist Treatment：Dry-type
• Condition：New
• Plenum (Height)：400mm
• Basement：300mm (High)
• Floor Filtration Areas：10.4m2
• Grids Carrying Capacity：650kg,Wheel
• Walls：50mm Thick Rock Wool Panels
• Illumination：>800lux
• Empty Loaded Air Speed：0.20m,S
• Heats：Electric Infrared Lamps
• Maximum Working Temperature：80 Celsius
• Voltage：380V, 50Hz, 3pH
• Rated Power：45kw
• Transport Package：Goods Packed by Polyfoam and Loaded on Metal Frame
• Specification：6900X4000X2650mm
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. E501 Paint Mist Treatment Dry-type Condition New Plenum (Height) 400mm Basement 300mm (High) Floor Filtration Areas 10.4m2 Grids Carrying Capacity 650kg/Wheel Walls 50mm Thick Rock Wool Panels Illumination >800lux Empty Loaded Air Speed 0.20m/S Heats Electric Infrared Lamps Maximum Working Temperature 80 Celsius Voltage 380V, 50Hz, 3pH Rated Power 45kw Transport Package Goods Packed by Polyfoam and Loaded on Metal Frame Specification 6900X4000X2650mm Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000 Sets/Year

Product Description

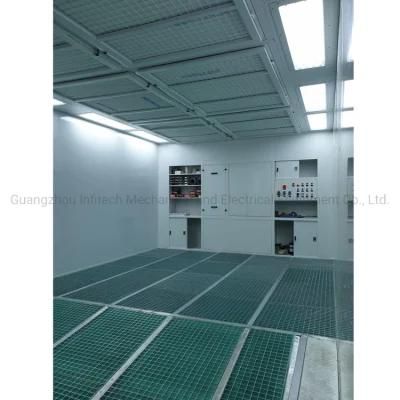

Efficient Paint Baking Booth with Electric Infrared Lamps for Vehicles

1.HIGHLIGHTS
INFITECH paint spray booth E501 is practical model targeted for customers who request practical solution, but also quality paint refinishes. It comes with smooth and consistent downdraught airflow, and direct-drive fan units, facilitating easier maintenance and safer operation.

2.SPECIFICATIONS

ITEMS	SPECIFICATIONS
Model	E501 Auto Paint Spray Booth
Internal dimensions	6900 X 4000 X 2650mm (L X W X H)
External dimensions	7010 X 5410 X 3410mm (L X W X H)
Airflow	Downdraught
Plenum (height)	400mm
Basement	300mm (high)
Floor filtration areas	10.4m2
Grids carrying capacity	650kg/wheel
Basement	2 rows of grids and 3 rows of diamond plates
Entrance door	3200x2550mm (WxH), 1 set
Service door	800x2000mm(WxH), 1 set
Walls	50mm thick rock wool panels
Upper lights (LED)	8 sets, each 4 X 18W, 576W total
Illumination	>800LUX
Filters	Plate filter, high efficiency ceiling filter, floor filter
Intake/Exhaust unit	Direct-drive big impeller fans 2x5.5KW intake fan, 20,000m3/h
Empty loaded air speed	0.20m/s
Heats	Electric infrared lamps  10 sets, 3 x1kw/ set
Heats - OPTION	Diesel or gas heating with heat exchanger
Maximum working temperature	80ºC
Controls	Control box with standard functions
Voltage	380V, 50Hz, 3ph
Rated power	45KW

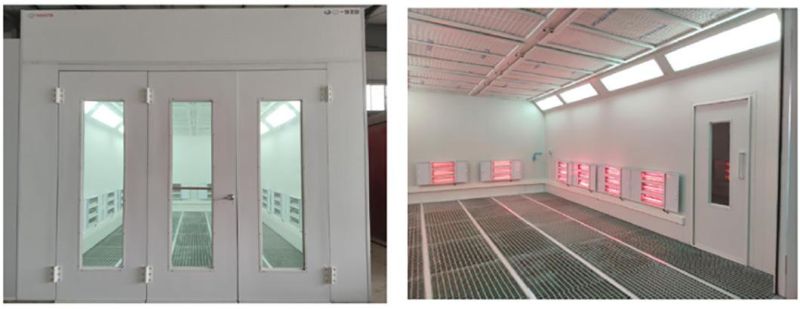

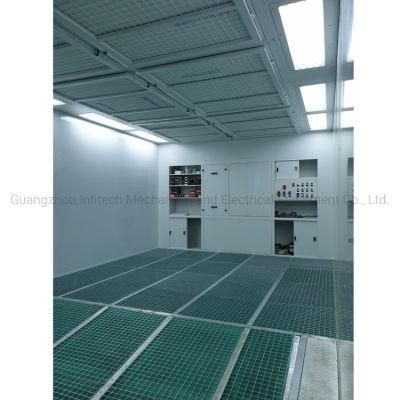

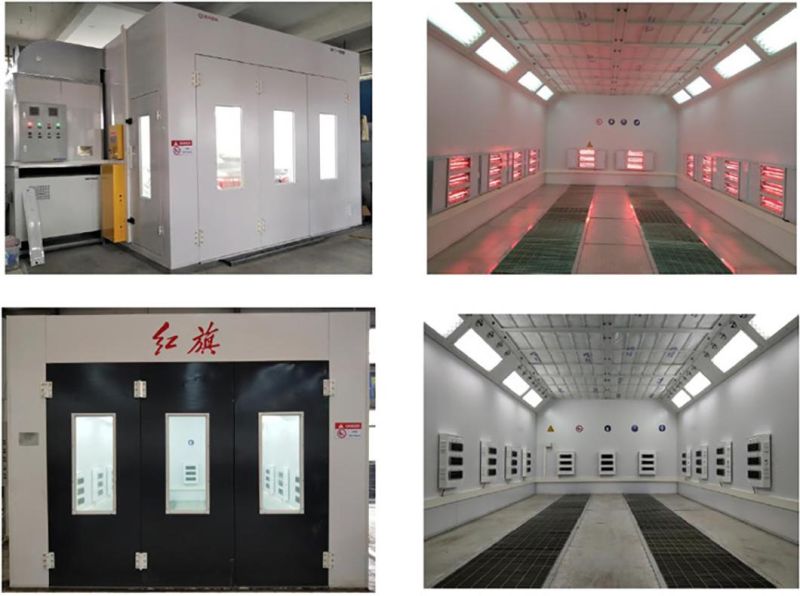

3.DETAILS

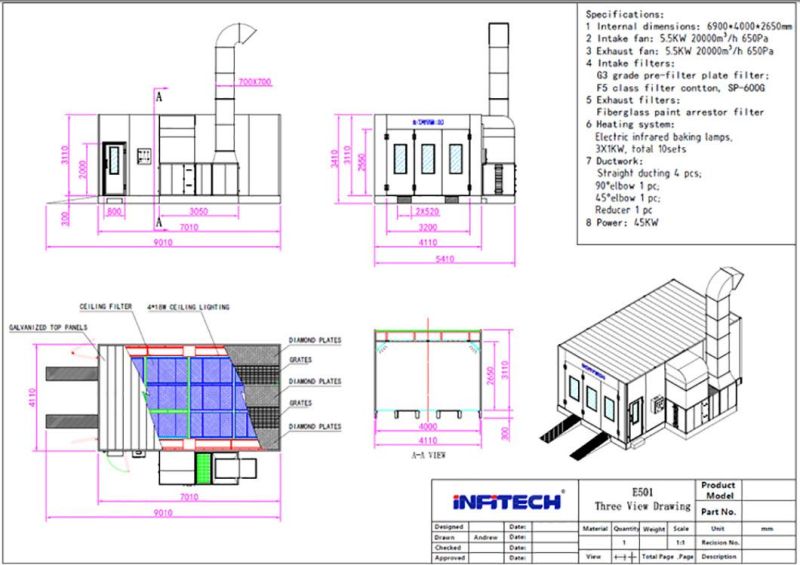

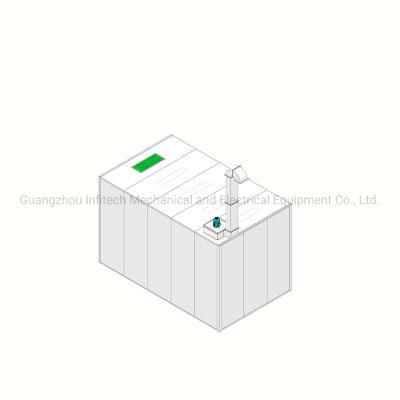

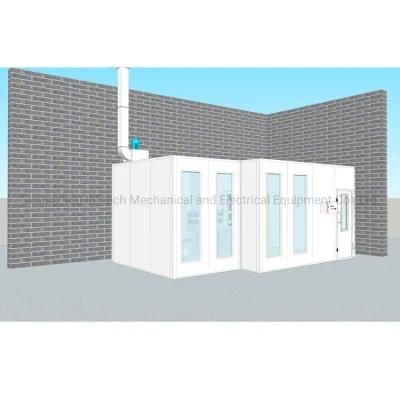

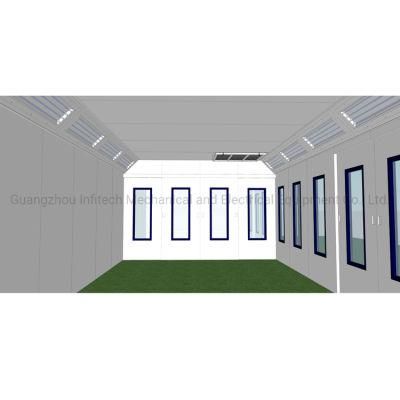

DESIGN DRAWING

Practical paint spray booth - E501 RANGE


Practical paint spray booth - E701 RANGE


FAQ

Q: I might need a lift to be installed inside the paint spray booth. Can you help me with this?
A: Yes. We can also supply the lift.
It is also okay that you buy the lift locally. But you need to send us the detailed information of the lift. So we can consider it when we design the basement.

Q: Can you supply paint spray booth for industrial manufacturing, like furniture, heavy equipment etc.?
A: Certainly. Infitech takes pride in delivering customized paint spray booth projects. Please tell us your individual needs, we will discuss and provide you with corresponding solution for approval.

Q: I need pneumatic ramp inside the booth.
A: Yes. That's okay.

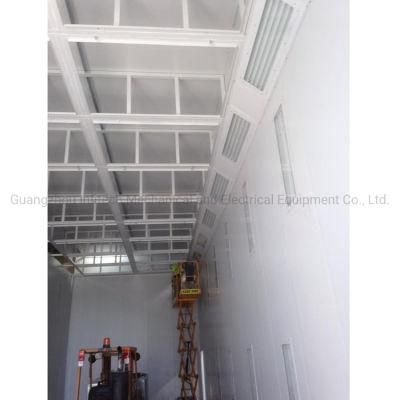

Q: How to install the paint spray booth?
A: No worries. Customers will be provided with installation steps, instructions, drawings and electric schematic so they learn and know how to install the booth. Moreover, we will be by your side, offer timely technical instructions (i.e. by using instant messaging) and check if the installation is correct or not upon receipt of your feedbacks.

Q: How often should we change the filters?
A: Usually, it depends on the actual operation situation of the paint spray booth. However, there is universal guide concerning the replacement intervals. The guidance will be supplied to customers for reference.

Q: How do I know the filters become clogged?
A: It is recommended to have the maintenance schedule of the paint spray booth recorded in details. So you can have an idea when the filters are replaced last time, and follow the supplied maintenance intervals to replace the filters.
However, there is signal that indicates the filters get blocked. Observe if the pressure inside the booth is normal or not. Usually, the blocked filters will result in abnormal pressure.

Q: Do you supply preparation stations and paint mixing room?
A: Yes.
