Water-Curtain Spray Booth Wet Type Spray Booth for Furniture Painting
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- After-sales Service：24 Hours After Service
- Warranty：2 Years
- Type：Spray Booth
- Certification：CCC, CE
- Substrate：Steel
- Brand：Infitech
Base Info
- Model NO.：YFT-WS4000
- Coating：Powder Coating
- Airflow Direction：Cross-flow Type
- Heating Mode：Diesel
- Paint Mist Treatment：Wet-type
- Condition：New
- Product Name：Infitech CE Double Water-Curtain Spray Booth
- Keyword：Double Water-Curtain Spray Booth
- Fan Speed：1420r,Min
- Sectional Air Speed：>0.6m,S
- Power of The Fan：2 X 5.5kw,415V
- Transport Package：Polyfoam and Metal Frame
- Specification：4000X2250X2360mm(LXWXH)
- Trademark：INFITECH
- Origin：China
- HS Code：8419899090
- Production Capacity：500 Sets , Year
Description
Water-Curtain Spray Booth Wet Type Spray Booth For Furniture PaintingModel YFT-WS4000 Internal Dimensions 4000X2250X2360mm(LXWXH) Paint mist purification rate 97% Fans 2 sets Air volume 20000m³/h (by 2 sets of fans) Sectional air speed >0.6m/s Fan speed 1420r/min Pressure of the fan 1100pa Power of the fan 2 X 5.5kw/415V
Working principle:

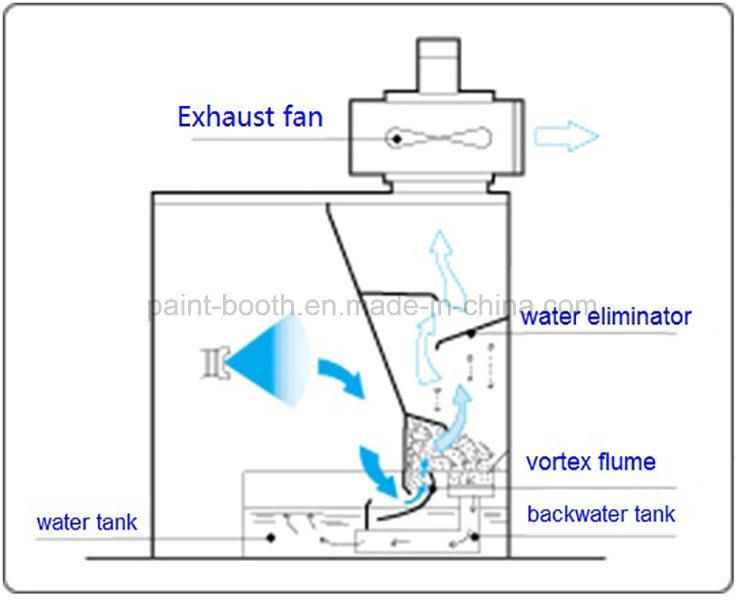

When the paint is sprayed on the component the over spray is sucked into the vortex chamber rapidly by the exhaust fan. The paint mist is separated from the air and collected by the water-curtain due to the centrifugal force of the vortex chamber. Moisture is removed from the exhaust air stream by the water eliminator, which prevents moisture from discharging at the exhaust port. The paint mist returns to the water tank (or over spray paint collection disposal tank).
Compositio
- Water-curtain Plate: Made from welded stainless steel plate, circulating water is sprayed and a shallow flow of water curtain is formed under the baffle.
- Water tank: Made from stainless steel. - Vortex flume: Adopts vortex to purify paint mist, the purification rate reaches 97%. - Backwater tank: The paint mist (after being treated in the vortex flume) comes to the paint disposal tank through the backwater tank. Add the right amount of paint mist coagulant in the circulating tank and dispose the paint waste regularly. This can ensure the circulating water is used circularly. - Water supply system: Adopts high pressure centrifugal pump, PVC pipes with good sealing and stable performance.
Exhaust system
- Exhaust system by using centrifugal vortex, the paint mist collection efficiency is as high as 99.5%(for melamine coating) and 97%(for plastic coatings and varnish coatings).

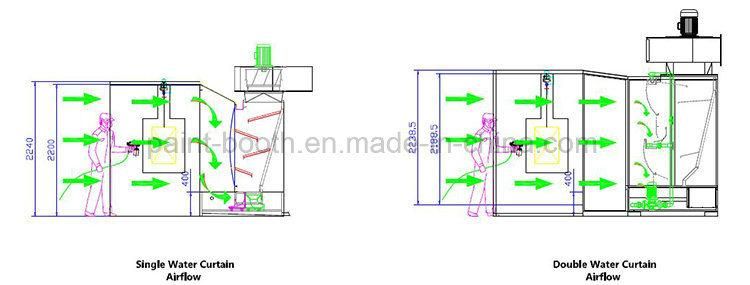

Airflow

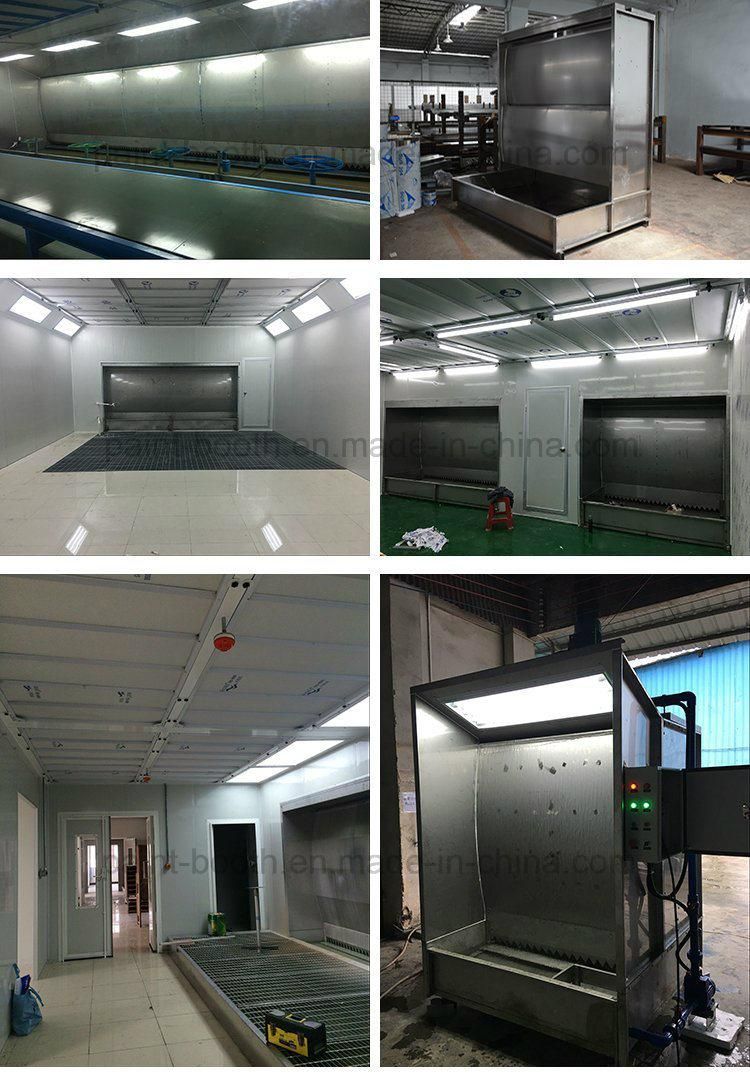

Engieering case
Company introduction

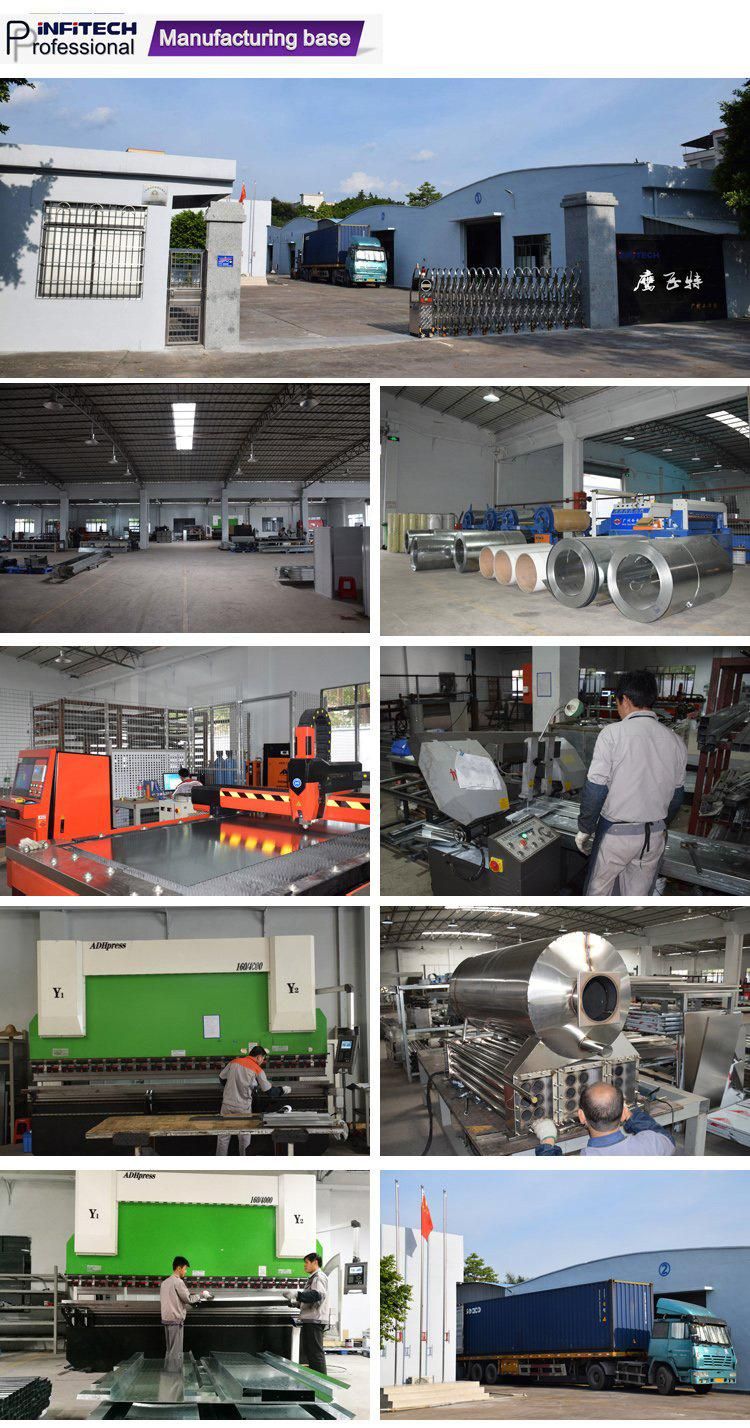

Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.

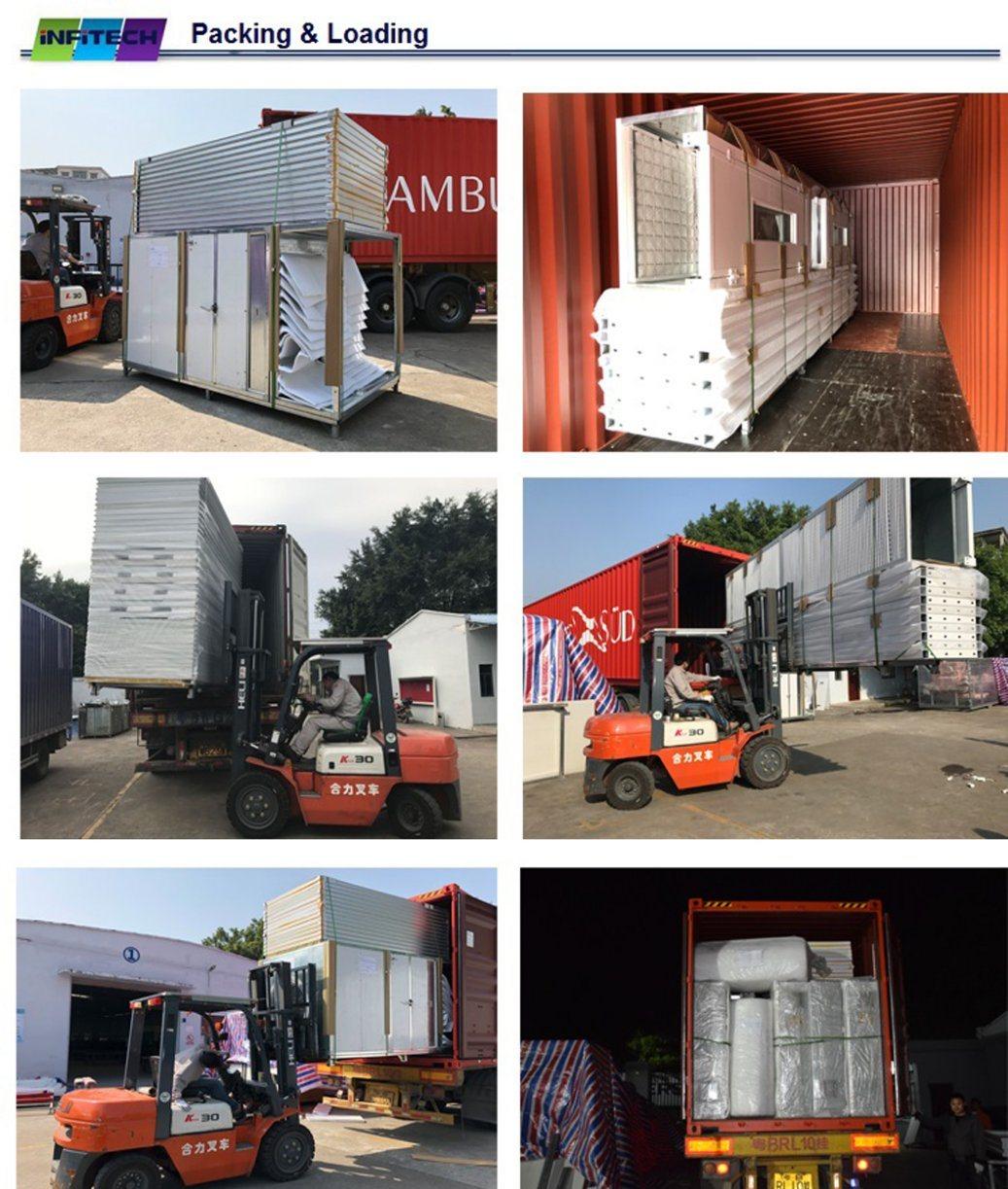

Packing and loading:
Working principle:
When the paint is sprayed on the component the over spray is sucked into the vortex chamber rapidly by the exhaust fan. The paint mist is separated from the air and collected by the water-curtain due to the centrifugal force of the vortex chamber. Moisture is removed from the exhaust air stream by the water eliminator, which prevents moisture from discharging at the exhaust port. The paint mist returns to the water tank (or over spray paint collection disposal tank).
Compositio
- Water-curtain Plate: Made from welded stainless steel plate, circulating water is sprayed and a shallow flow of water curtain is formed under the baffle.
- Water tank: Made from stainless steel. - Vortex flume: Adopts vortex to purify paint mist, the purification rate reaches 97%. - Backwater tank: The paint mist (after being treated in the vortex flume) comes to the paint disposal tank through the backwater tank. Add the right amount of paint mist coagulant in the circulating tank and dispose the paint waste regularly. This can ensure the circulating water is used circularly. - Water supply system: Adopts high pressure centrifugal pump, PVC pipes with good sealing and stable performance.
Exhaust system
- Exhaust system by using centrifugal vortex, the paint mist collection efficiency is as high as 99.5%(for melamine coating) and 97%(for plastic coatings and varnish coatings).
Airflow
Engieering case
Company introduction
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
Packing and loading:
