Infitech New Design Double Water-Curtain Spray Booth
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Airflow Direction：Cross-flow Type
- Paint Mist Treatment：Wet-type
Base Info
- Model NO.：YFT-WS4000
- Condition：New
- Product Name：Infitech New Double Water-Curtain Spray Booth
- Keyword：Double Water-Curtain Spray Booth
- Fan Speed：1420r,Min
- Sectional Air Speed：>0.6m,S
- Power of The Fan：2 X 5.5kw,415V
- Warranty：1 Year
- Transport Package：Polyfoam and Metal Frame
- Specification：4000X2250X2360mm(LXWXH)
- Trademark：INFITECH
- Origin：China
- HS Code：8419899090
- Production Capacity：500 Sets , Year
Description
Double water-curtain spray booth(1 set)Model YFT-WS4000 Internal Dimensions 4000X2250X2360mm(LXWXH) Paint mist purification rate 97% Fans 2 sets Air volume 20000m³/h (by 2 sets of fans) Sectional air speed >0.6m/s Fan speed 1420r/min Pressure of the fan 1100pa Power of the fan 2 X 5.5kw/415V

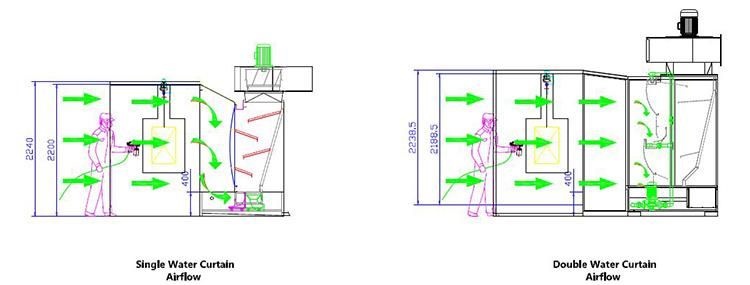

Airflow

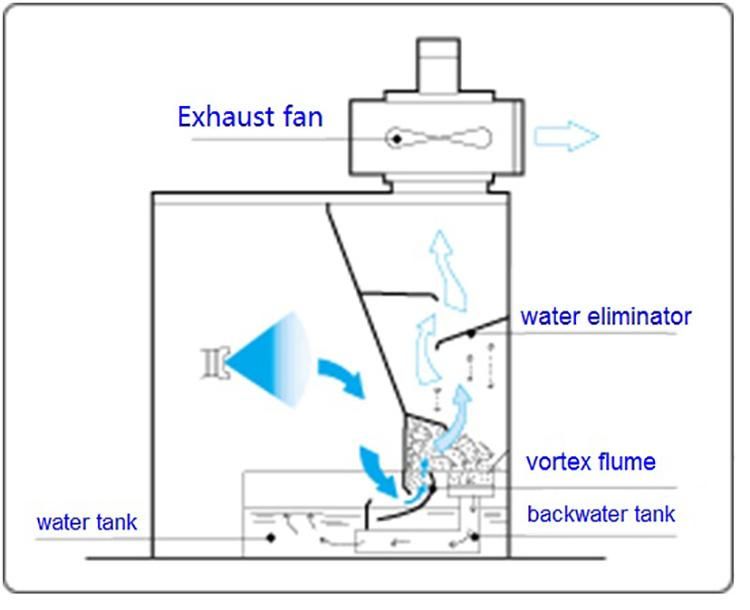

Compositio
- Water-curtain Plate: Made from welded stainless steel plate, circulating water is sprayed and a shallow flow of water curtain is formed under the baffle.
- Water tank: Made from stainless steel. - Vortex flume: Adopts vortex to purify paint mist, the purification rate reaches 97%. - Backwater tank: The paint mist (after being treated in the vortex flume) comes to the paint disposal tank through the backwater tank. Add the right amount of paint mist coagulant in the circulating tank and dispose the paint waste regularly. This can ensure the circulating water is used circularly. - Water supply system: Adopts high pressure centrifugal pump, PVC pipes with good sealing and stable performance.

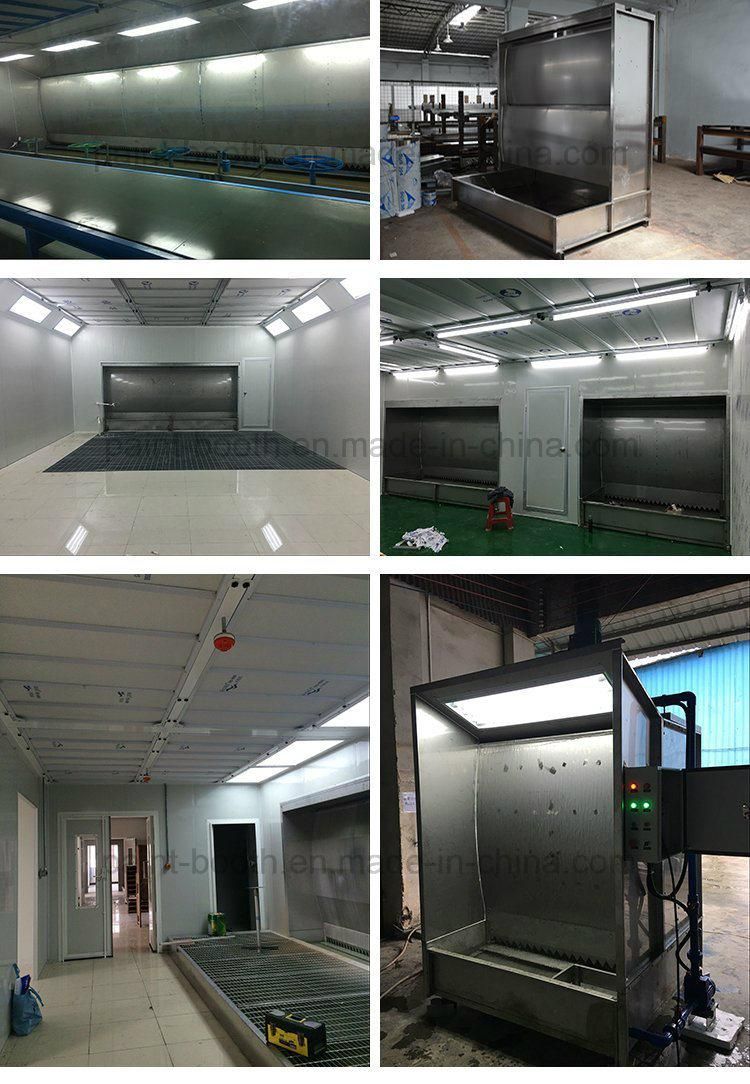

Engieering case

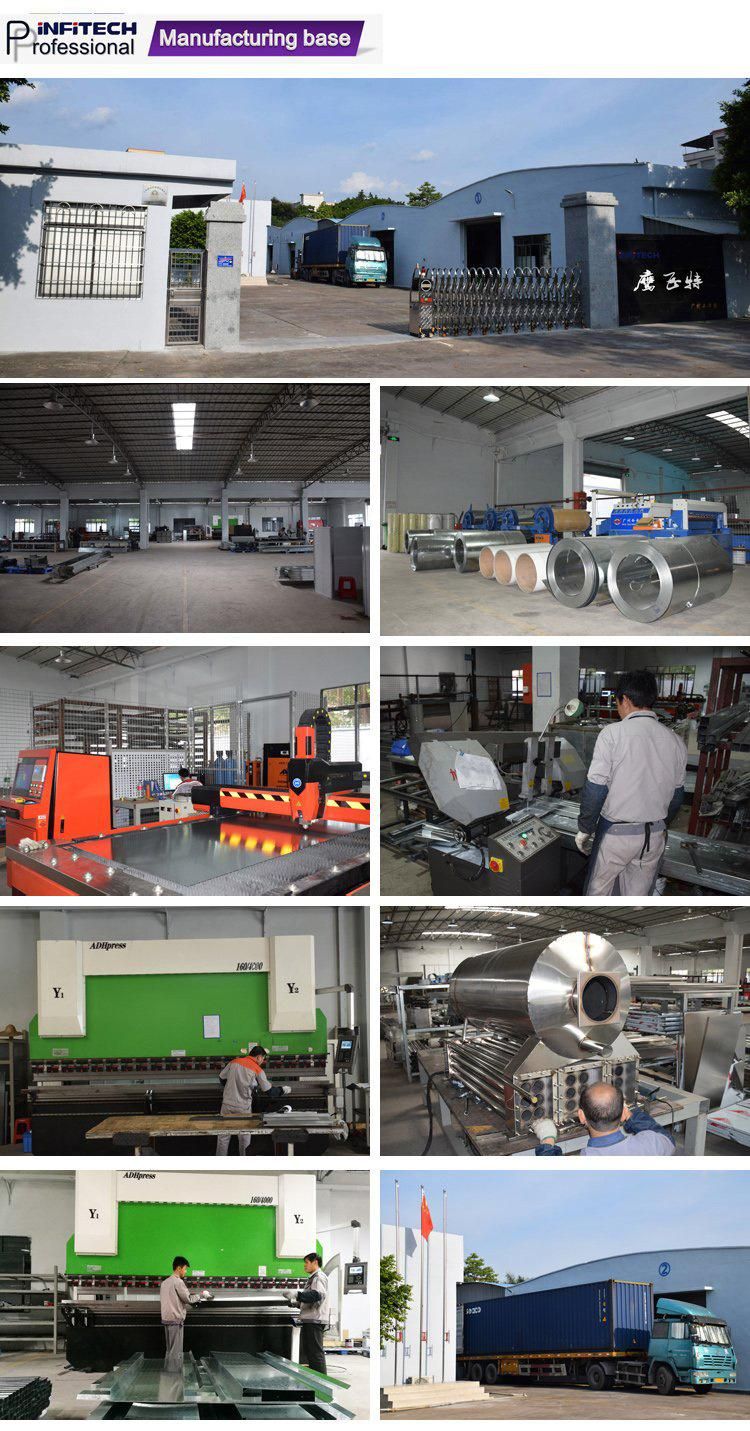

Company introduction
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
